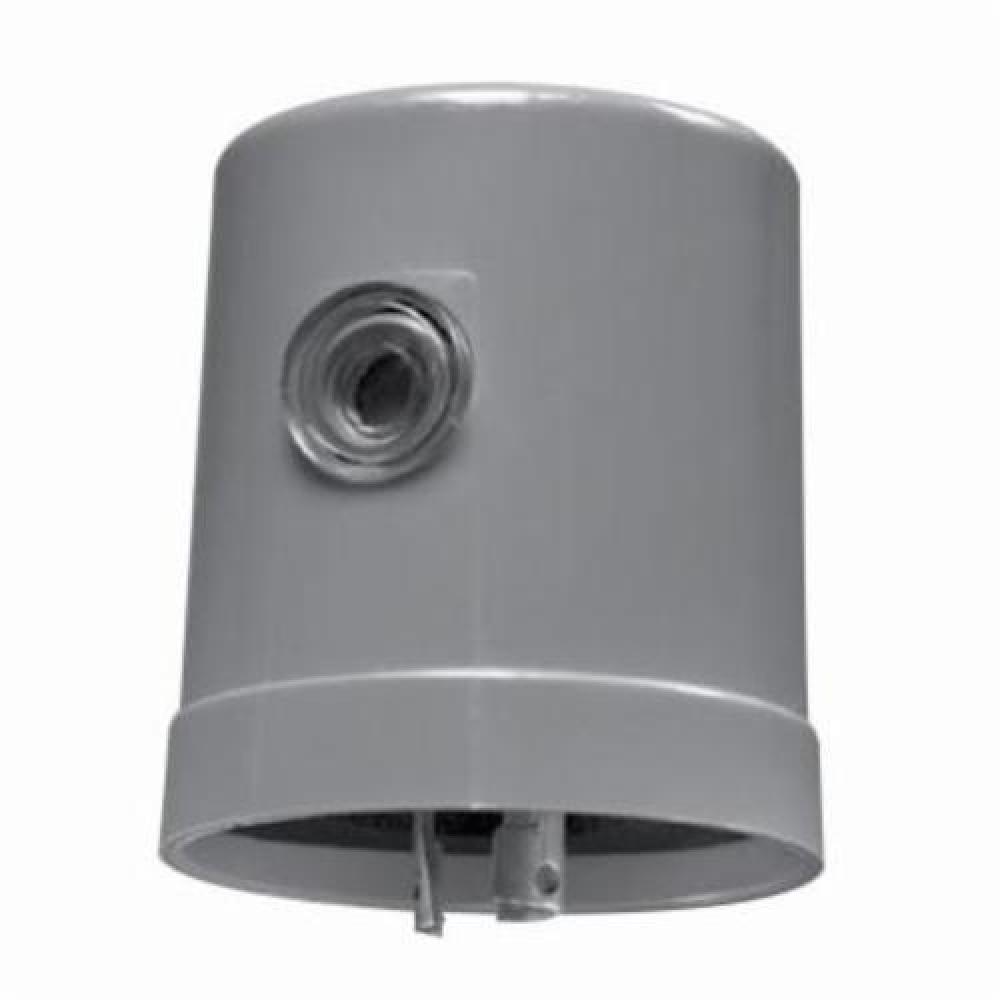

Intermatic K4533

Intermatic K4533 by Intermatic

Call for Price
  • Part Number: K4533
  • UPC: 00078275530171
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® K4500 Locking Mounting Thermal Photocontrol, 277 VAC, 4155 W Tungsten, 2300 VA Ballast, Twistlock Mount
Specifications
Details
Category Level 1:
Lighting Controls & Ballasts
Category Level 2:
Photocontrols
Category Level 3:
Turn-Lock Photocontrols
Amperage Rating:
15
15 A
Application:
For dusk-to-dawn lighting control
Ballast Load:
2300 VA
Category Name:
Turn-Lock Photocontrols
Color:
Gray
Country:
USA/Canada
Dimensions:
3 in Dia x 3-1/4 in H
Environmental Conditions:
-40 to 158 deg F
-40 to 158 deg F Operating Temperature
-40 to 70 deg C Temperature
Frequency Rating:
50 to 60 Hz
50/60
Length:
3.0
Material:
Plastic
Polycarbonate
Mounting Type:
Twist-Lock
Twistlock
Sensitivity:
1 to 5 FC (ON)/3 to 15 FC (OFF)
1 to 5 FC ON, 3 to 15 FC Off
1 to 5 FC On/3 to 15 FC Off
Sensor Type:
Automatic Switch/Cadmium Sulfide
Cadmium Sulfide
Series:
K4500
Standard/Approvals:
ANSI C136.10|UL Listed|CSA Certified|Title CA 20 Listed|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Tungsten Rating:
4155
4155 W
Type:
Locking
Locking Mounting
Unspsc:
39121524
Voltage Rating:
277
277 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
