Intermatic LC4536C

Intermatic LC4536C by Intermatic

Call for Price
  • Part Number: LC4536C
  • UPC: 00078275029552
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

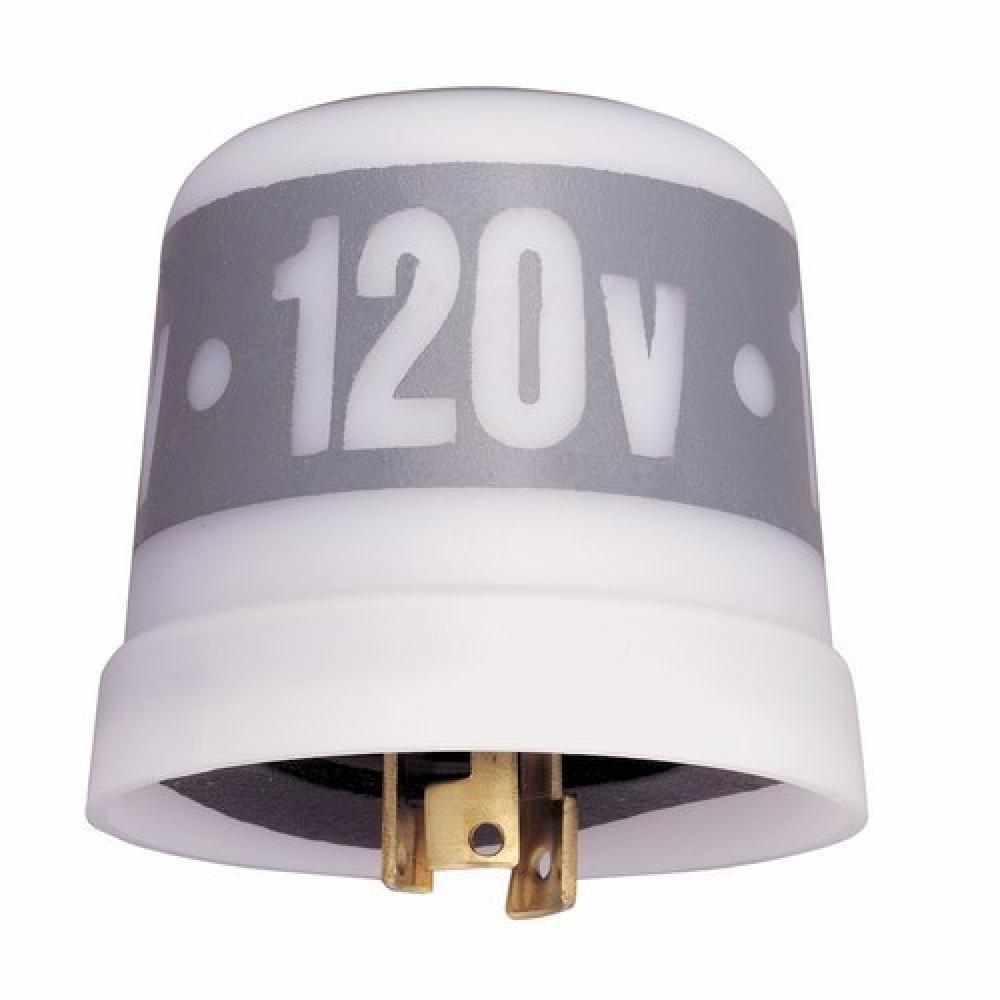

Intermatic® LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 VAC, 1800 to 4155 W Tungsten, Twistlock Mount
Specifications
Details
Category Level 1:
Lighting Controls & Ballasts
Category Level 2:
Photocontrols
Category Level 3:
Turn-Lock Photocontrols
Amperage Rating:
15 A
Application:
For dusk-to-dawn lighting control
Arrester:
Spark Gap
Ballast Load:
1000 to 2290 VA
Category Name:
Turn-Lock Photocontrols
Color:
Blue/White
White/Blue
Contact Form:
SPST
Country:
USA/Canada
Dimensions:
3 in Dia x 2-3/4 in H
Environmental Conditions:
-20 to 104 deg F
Frequency Rating:
50/60 Hz
Length:
3.0
Material:
Polypropylene
Mounting Type:
Twist-Lock
Twistlock
Operating Cycles:
3650
3650 Cycles
Sensitivity:
0.5 FC ON, 15 FC OFF
0.5 FC On/15 FC Off
Sensor Type:
Cadmium Sulfide
Series:
LC4500
Standard/Approvals:
UL Listed|CSA Certified|Title CA 20 Listed|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Timing Range:
30 to 90 s
Tungsten Rating:
1800 to 4155 W
Type:
Locking Mounting
Unspsc:
39121524
Voltage Rating:
120 to 277 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
