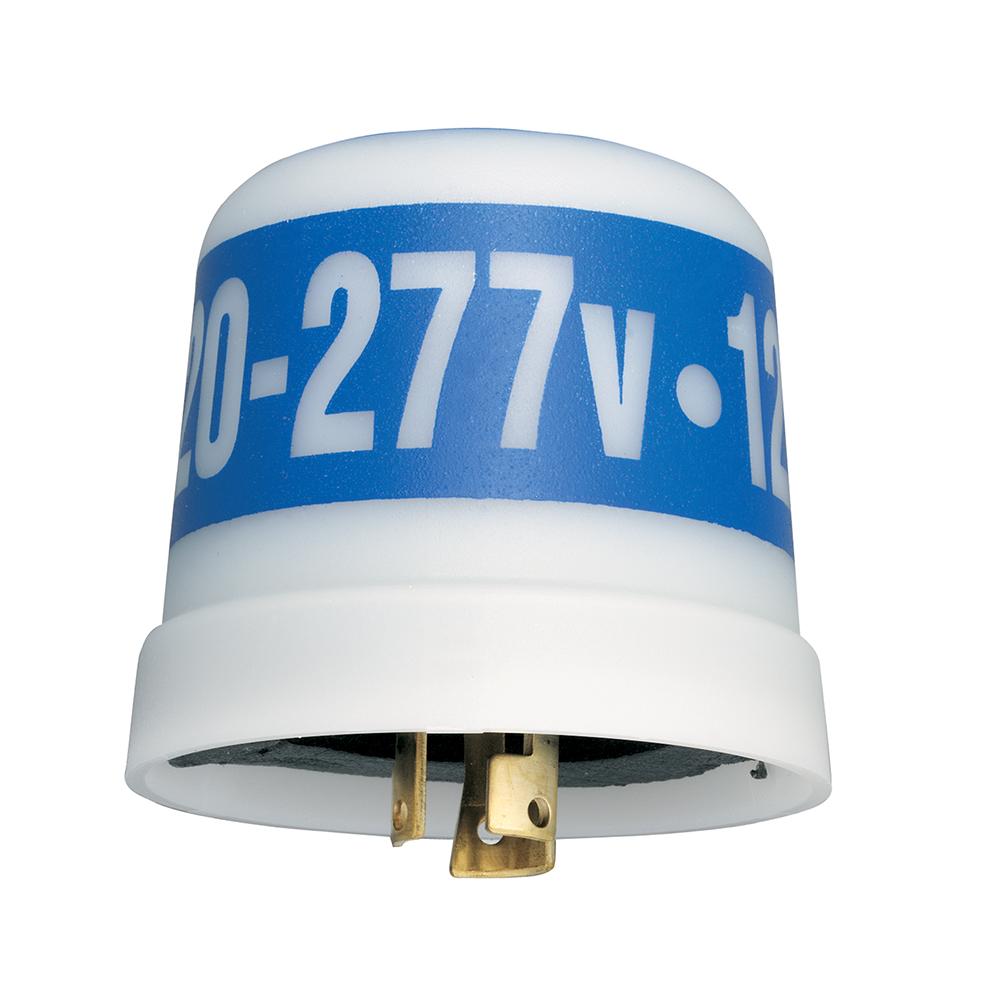

Intermatic LED4536SC

Intermatic LED4536SC by Intermatic

Call for Price
  • Part Number: LED4536SC
  • UPC: 00078275143647
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® LED4536SC Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Twistlock Mount
Specifications
Details
Category Level 1:
Lighting Controls & Ballasts
Category Level 2:
Photocontrols
Category Level 3:
Turn-Lock Photocontrols
Amperage Rating:
8 A
Application:
For dusk-to-dawn lighting control
Arrester:
510 J MOV
Ballast Load:
1800 VA
Category Name:
Turn-Lock Photocontrols
Color:
Translucent
Country:
USA/Canada
Dimensions:
2.97 in Dia x 2.721 in H
Enclosure Type:
NEMA 410
Environmental Conditions:
-40 to 158 deg F
Frequency Rating:
50/60 Hz
Length:
3.0
Mounting Type:
Twist-Lock
Twistlock
Operating Cycles:
1500
1500 Cycles
Sensitivity:
1.5 FC ON, 2.25 FC OFF
1.5 fc ON/2.25 fc OFF
Sensor Type:
Silicon/IR Filter
Silicone/IR Filter
Standard/Approvals:
ANSI C136.10|UL/cULus Listed|CAS Approval|Title CA 20 Listed|RoHS Compliant|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Timing Range:
2 to 5 s
Tungsten Rating:
1000
1000 W
Unspsc:
39121524
Voltage Rating:
105 to 305 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
