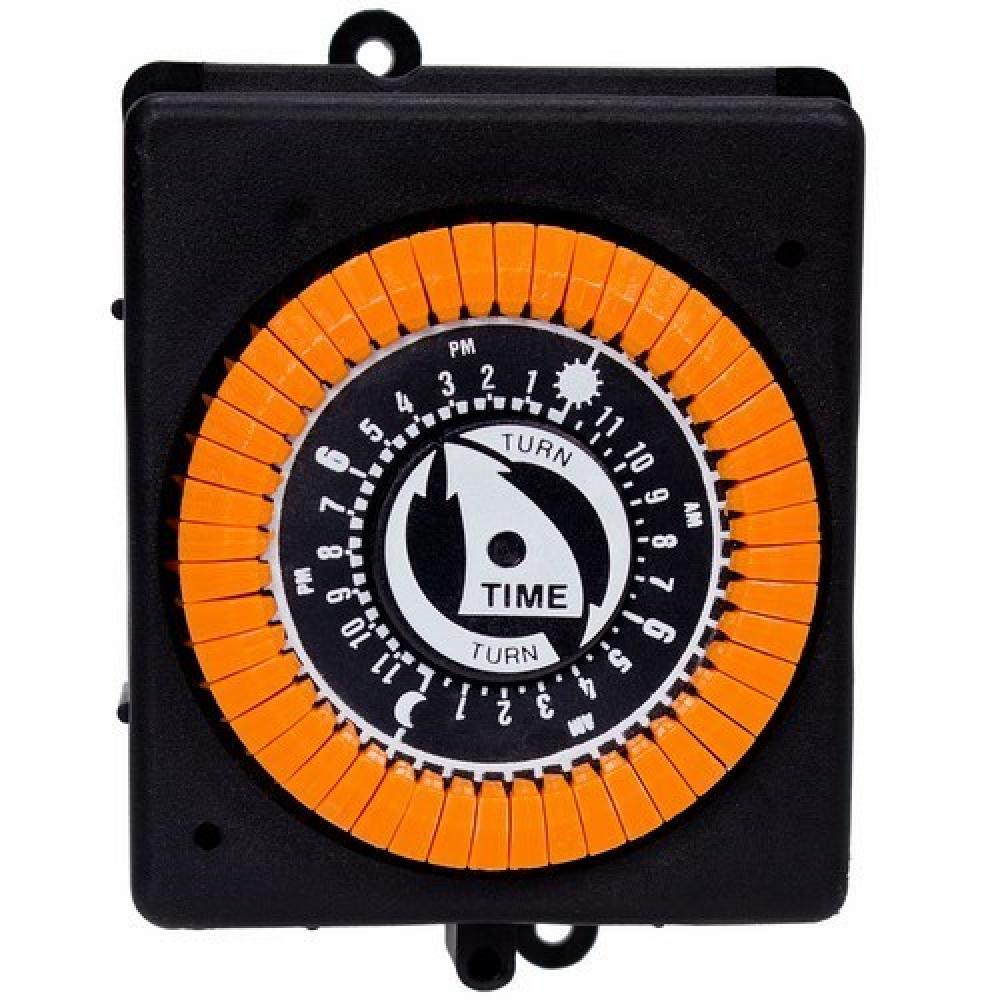

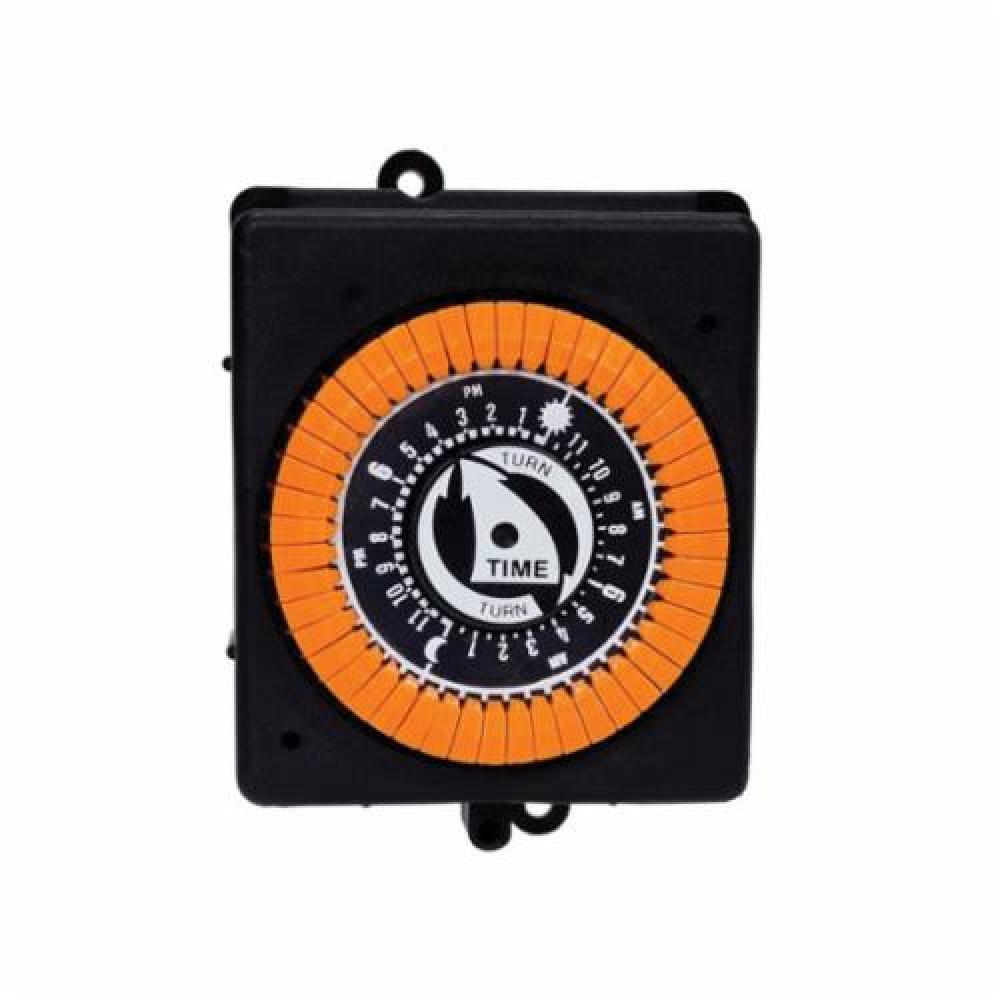

Intermatic® PB Series Electro Mechanical Timer Switch, 24 hr Time Setting, 120 VAC, 1 hp, 1NO SPST Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Mechanical Timers
Amperage Rating:
20
20 A
Application:
Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems and Security Systems Applications
Category Name:
Mechanical Timers
Contact Form:
1NO SPST
Country:
USA/Canada
Dimensions:
3-1/3 in H x 2-13/16 in W x 1-61/64 in D
Horsepower:
1
1 hp
Length:
24.0
Mounting Type:
Panel
Number of Poles:
1
Series:
PB Series
Standard/Approvals:
RoHS Compliant|UL Recognized|CSA/cCSAus Certified|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
