Leviton 2730IG

Leviton 2730IG by Leviton

Call for Price
  • Part Number: 2730-IG
  • UPC: 00078477809662
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

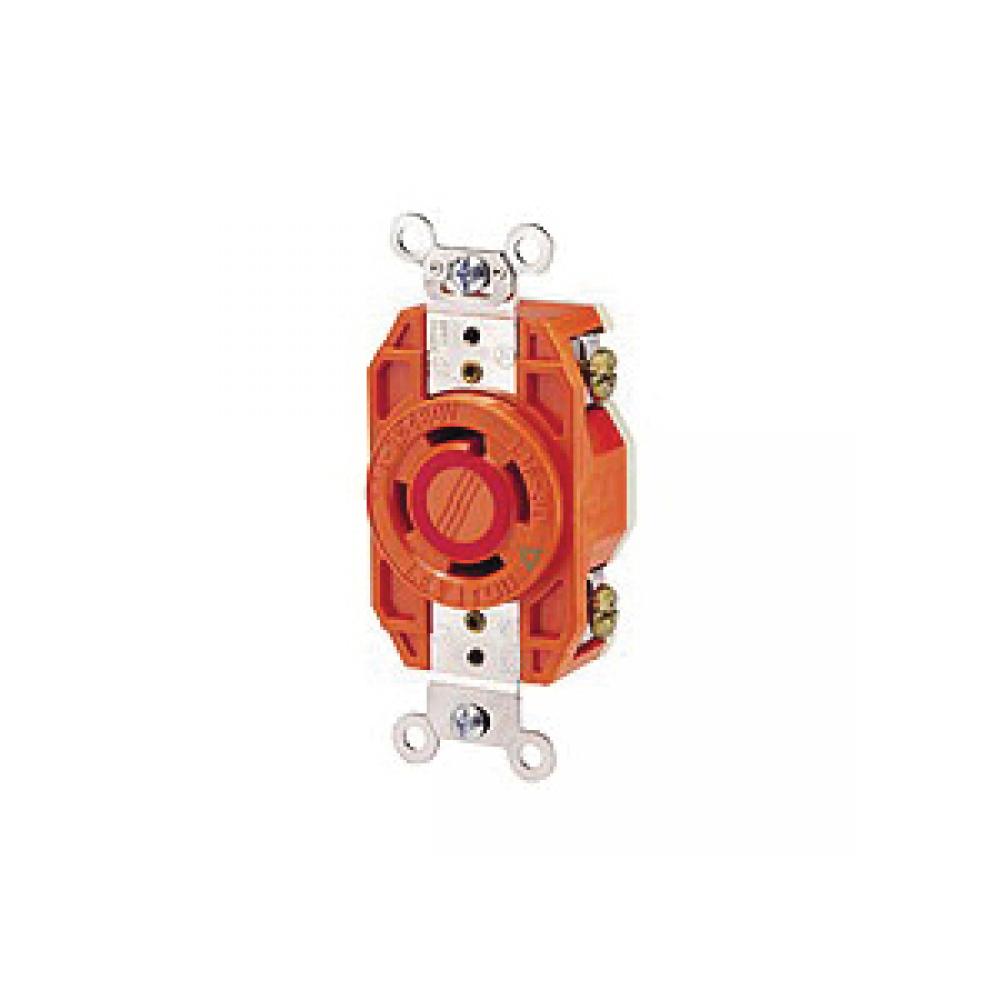

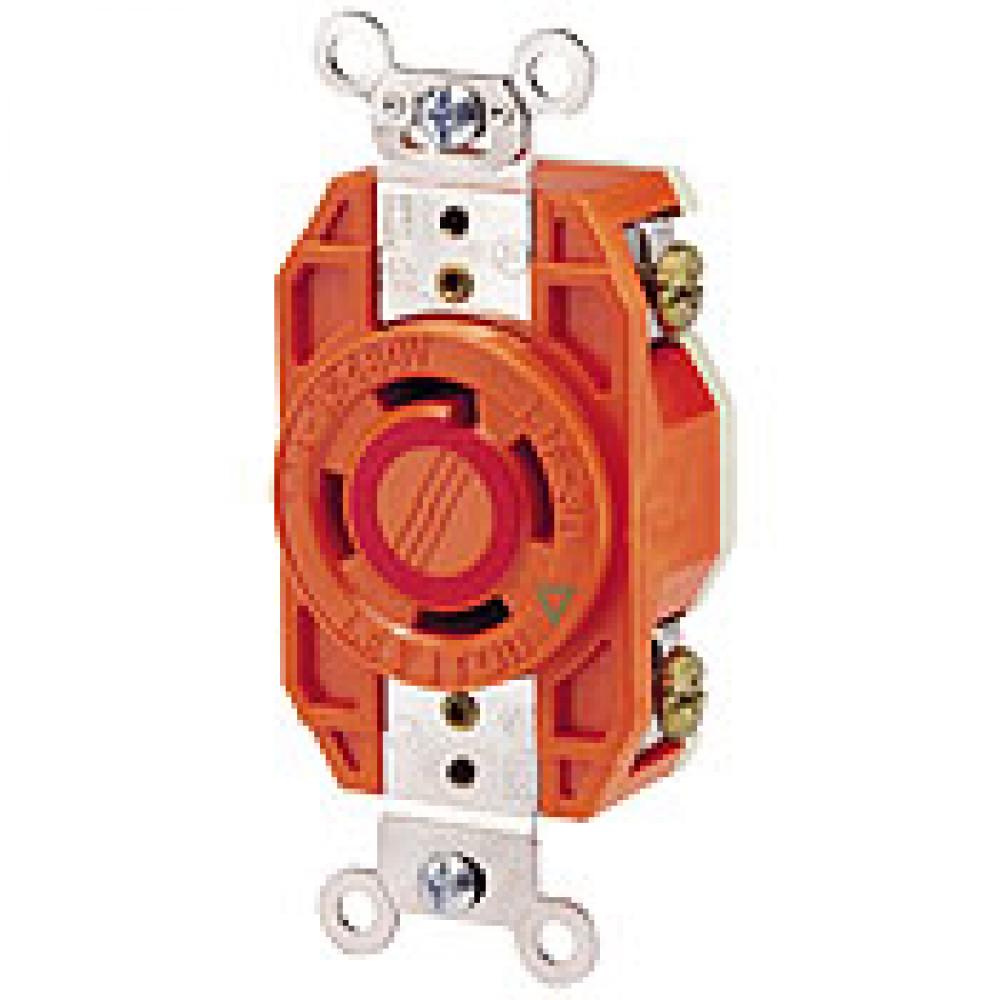

Leviton® V-0-Max™ 2730-IG 3-Phase Y Isolated Grounding Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Orange
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
30
30 A
Application:
Commercial Applications
Category Name:
Locking Receptacles
Color:
Orange
Country:
USA
Dimensions:
3.63 in H x 1.69 in W x 1.31 in D
Grade:
Industrial
Horsepower:
10
10 hp
Length:
2.0
Material:
Polybutylene Terephthalate
NEMA Rating:
NEMA L16-30R
Number of Poles:
3
Number of Wires:
4
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
Temperature Rating:
-40 to 60
-40 to 60 deg C
Terminal Type:
Back/Side Wired
Type:
3-Phase Y Isolated Grounding
Unspsc:
39121406
Voltage Rating:
480
480 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Leviton
