Leviton 4550IG

Leviton 4550IG by Leviton

Call for Price
  • Part Number: 4550-IG
  • UPC: 00078477777985
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

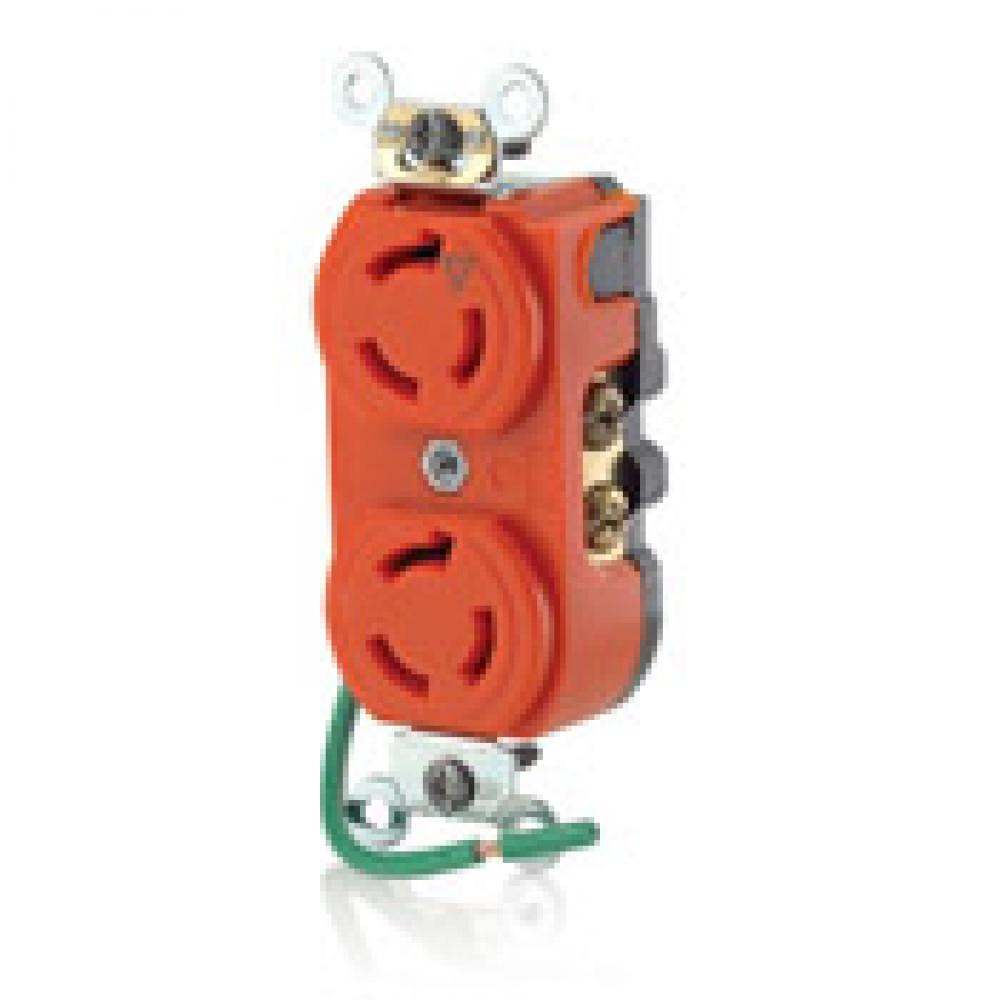

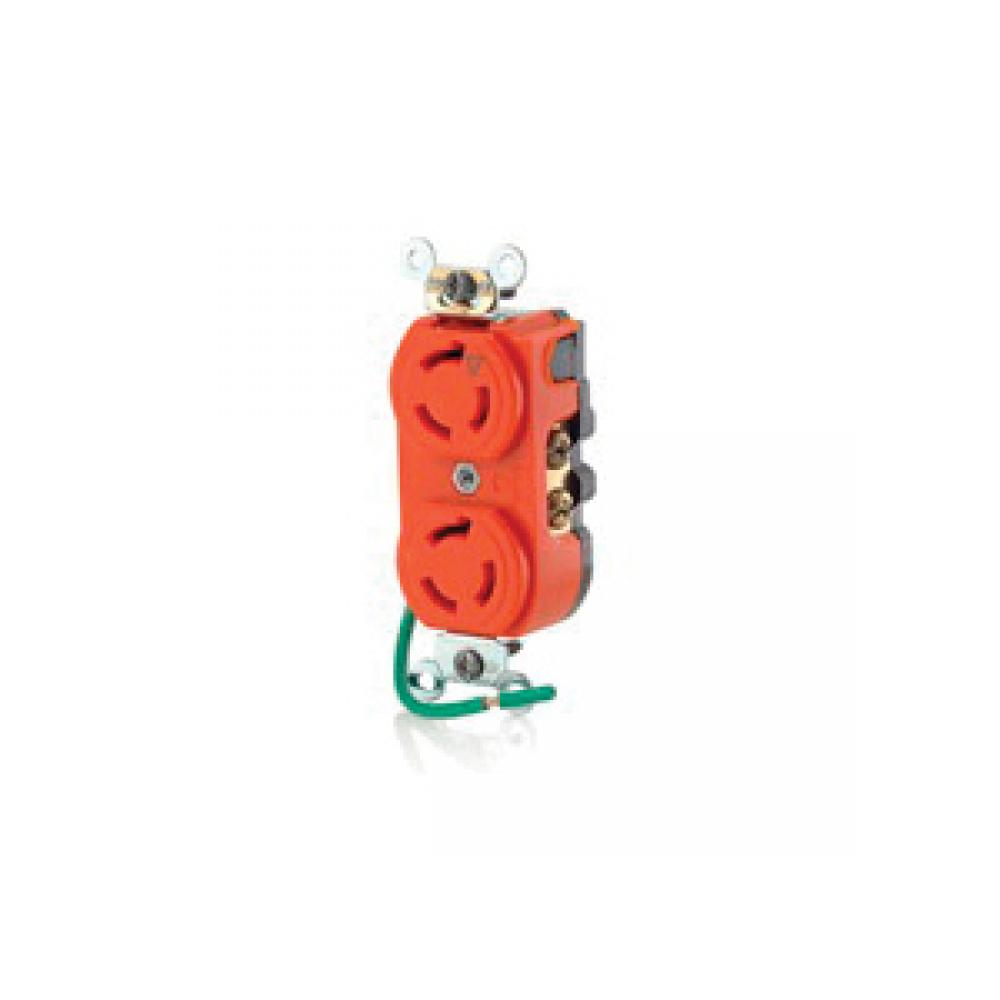

Leviton® V-0-Max™ 4550-IG Duplex Extra Heavy Duty Isolated Grounding Locking Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Orange
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
15
15 A
Application:
Commercial Applications
Category Name:
Locking Receptacles
Color:
Orange
Country:
USA
Dimensions:
46 in H x 1.44 in W x 1.2 in D
Grade:
Industrial
Horsepower:
1-1/2
1-1/2 hp
Length:
12.0
Material:
Nylon
NEMA Rating:
NEMA L6-15R
Number of Poles:
2
Number of Wires:
3
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42/LR406|Federal Specification WC596/E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
Temperature Rating:
-40 to 60
-40 to 60 deg C
Terminal Type:
Back/Side Wired
Type:
Duplex Extra Heavy Duty Isolated Grounding
Unspsc:
39121406
Voltage Rating:
250
250 VAC
Volume:
16.0
Weight:
12.0
