Panduit PUP6ASD04WHUG

Panduit PUP6ASD04WHUG by Panduit

Call for Price
  • Part Number: PUP6ASD04WH-UG
  • UPC: 00074983241125
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

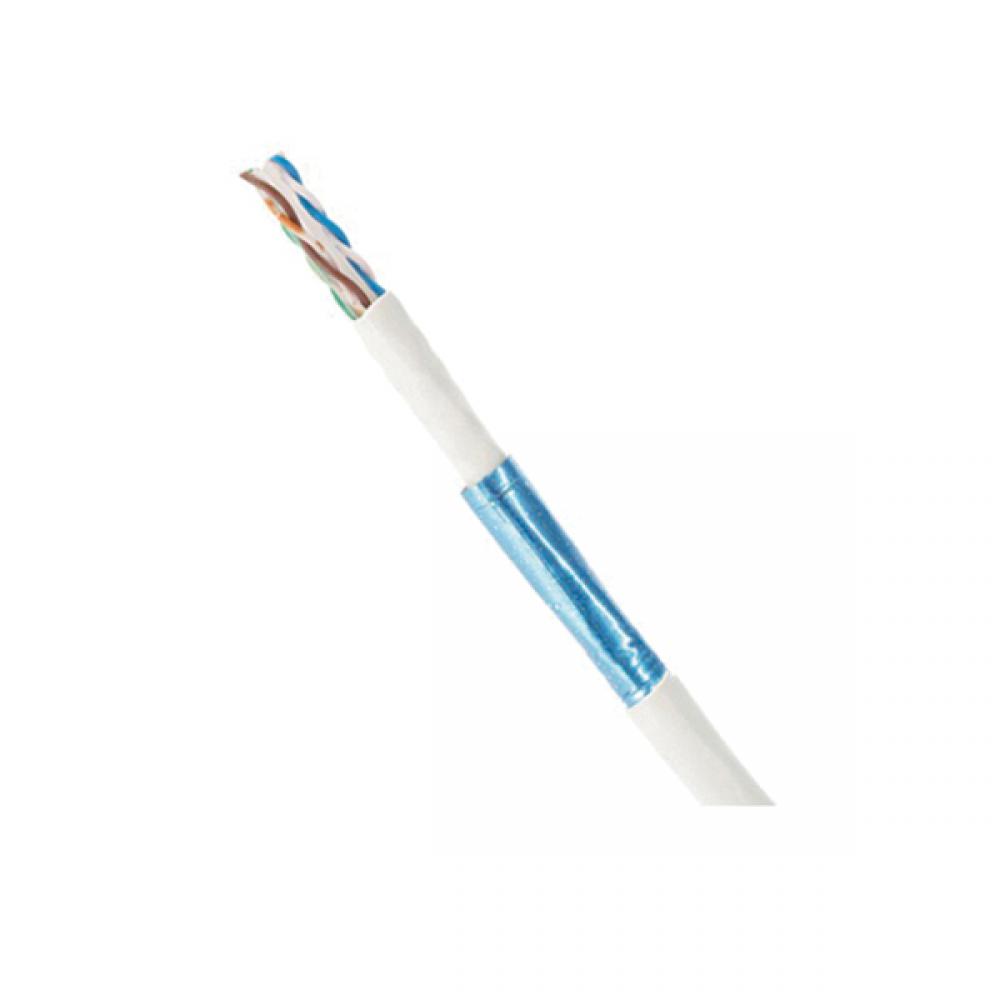

Panduit® TX6A-SD™ 10Gig™ PUP6ASD04WH-UG Cat 6A CMP Flame Retardant Low Smoke Copper Cable, 80 VAC, (4-Pair) 26 AWG U/UTP Solid Copper Conductor, 1000 ft L
Specifications
Details
Category Level 1:
Wire, Cord & Cable
Category Level 2:
Copper Data Cables
Category Level 3:
Premise Copper Plenum - Cat6A
Application:
10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Back Bone Aggregation, Parallel Processing, High Speed Computing, Large Cable Bundle and PoE Plus Applications
Category Name:
Premise Copper Plenum - Cat6A
Conductor Size:
26 AWG
Conductor Type:
U/UTP Solid Copper
Country:
USA
Insulation Material:
FEP
Jacket Color:
White
Jacket Material:
PVC
Length:
1000
1000 ft
13.0
Number of Conductors:
4 Pair
4-Pair
Outside Diameter:
0.24
0.24 in
Resistance:
<9.38
<9.38 Ohm
Standard/Approvals:
ANSI/TIA-568-C.2 Cat 6A|ISO 11801 Class EA|IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt|RoHS Compliant|ARRA Compliant|Buy American Act Compliant
Temperature Rating:
-4 to 167
-4 to 167 deg F
Type:
Cat 6A CMP Flame Retardant Low Smoke
Unspsc:
26121634
Voltage Rating:
80
80 VAC
Volume:
2.0
Weight:
34.0
Additional Information
Manufactured By:
Panduit
