Panduit PV1410RC

Panduit PV1410RC by Panduit

Call for Price
  • Part Number: PV14-10R-C
  • UPC: 00074983801206
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

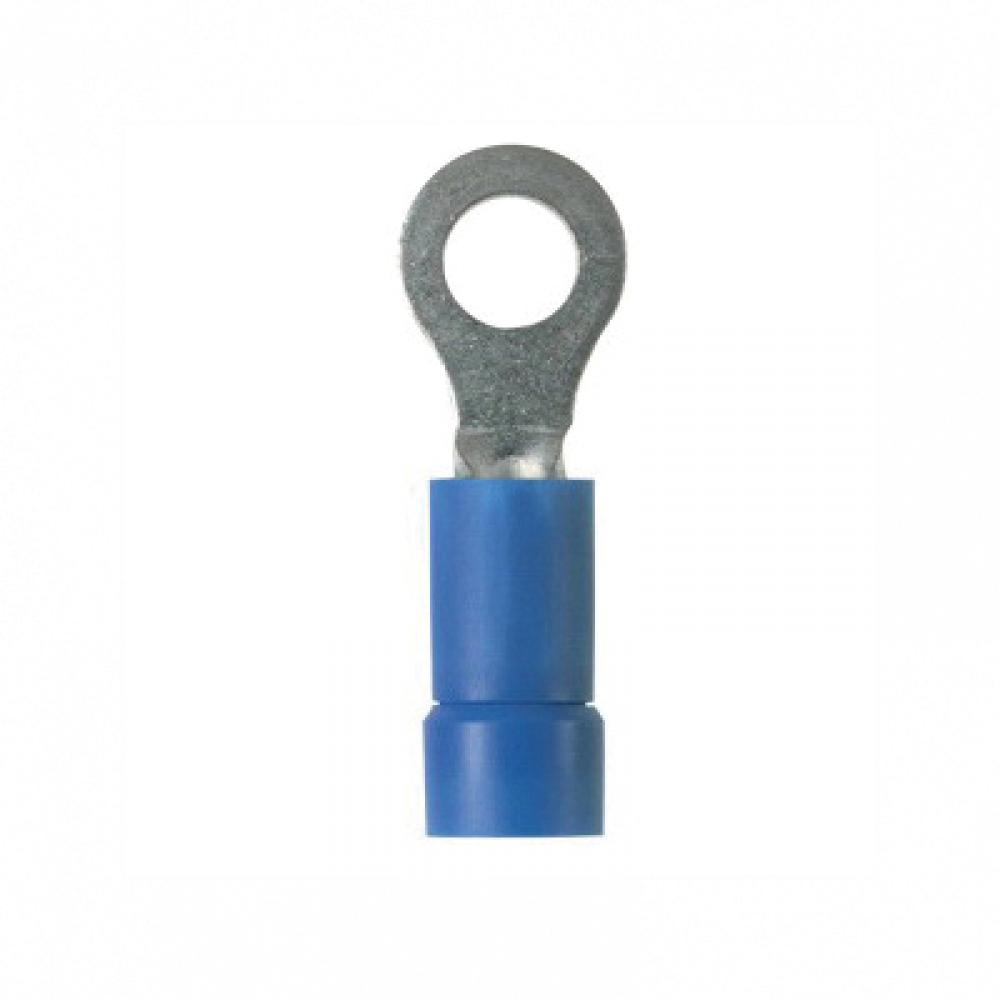

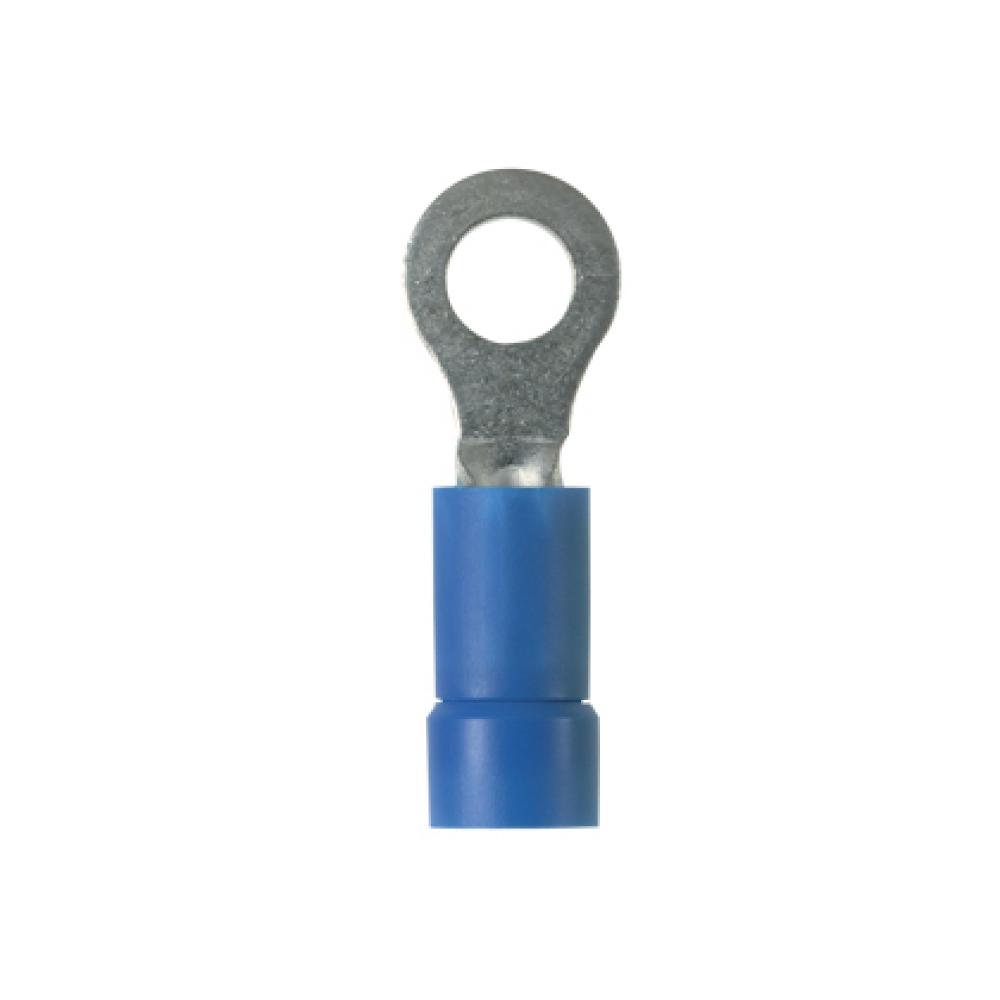

Panduit® Pan-Term® PV14-10R-C PV Series Insulated Loose Piece Ring Terminal, 16 to 14 AWG Conductor, 0.92 in L, Brazed Seam Barrel, Copper, Blue
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Small Crimp Terminals & Splices
Category Level 3:
Ring Lugs
Barrel Type:
Brazed Seam
Brazed Seam/Insulation Support
Category Name:
Ring Lugs
Color:
Blue
Conductor Size:
16 to 14
16 to 14 AWG
Conductor Type:
Solid/Stranded
Country:
USA
Finish:
Tin Plated
Length:
0.92
0.92 in
4.0
Material:
Copper
Series:
PV Series
PV-R
Specifications:
5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration
5/16 in L Wire Strip, 1/4 in Clearance, Vinyl Insulation, Funnel Entry Barrel Configuration
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 65|UL 486A/486B|UL94 V-0 Flammability Rating
Stud Size:
#10
Temperature Rating:
221
221 deg F
Tongue Size:
0.31 in W x 0.03 in THK
Tongue Type:
Ring
Type:
Insulated
Insulated Loose Piece
Unspsc:
39121409
Voltage Rating:
600
600 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Panduit
