Panduit PV186FCY

Panduit PV186FCY by Panduit

Call for Price
  • Part Number: PV18-6F-CY
  • UPC: 00074983690794
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

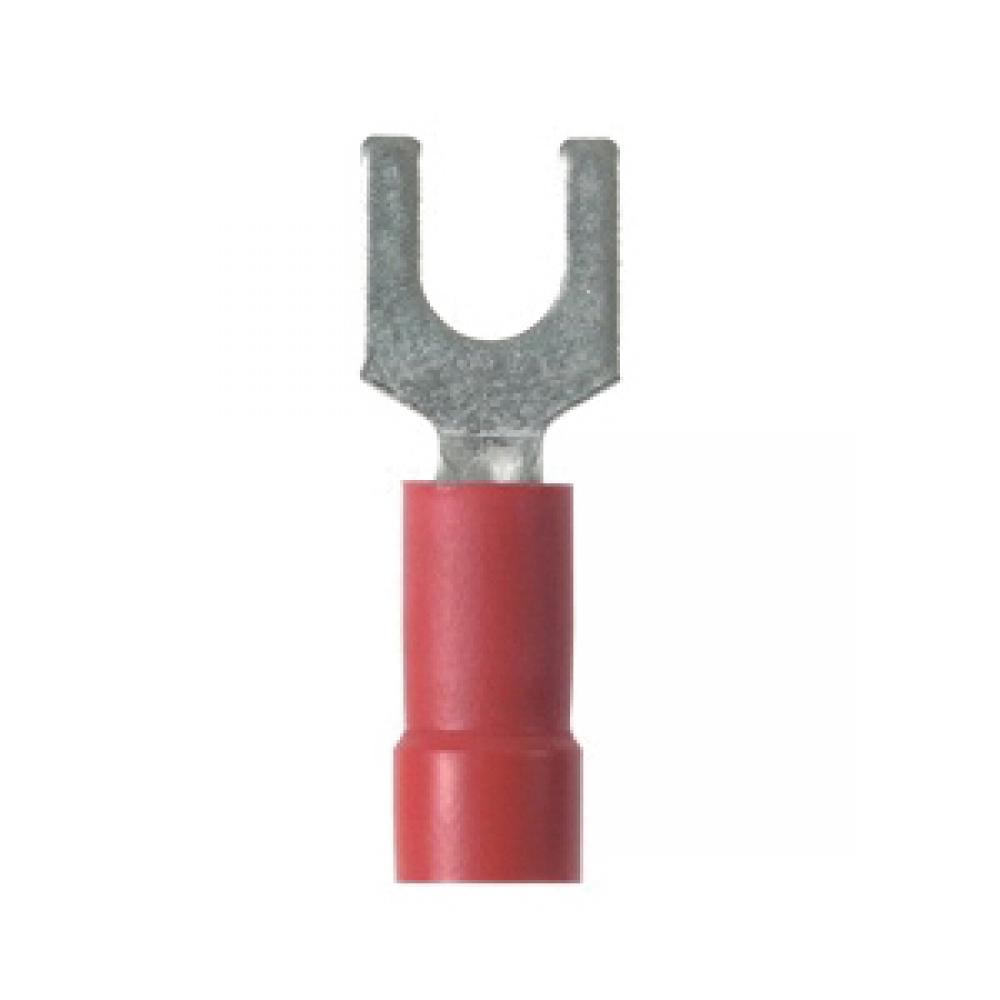

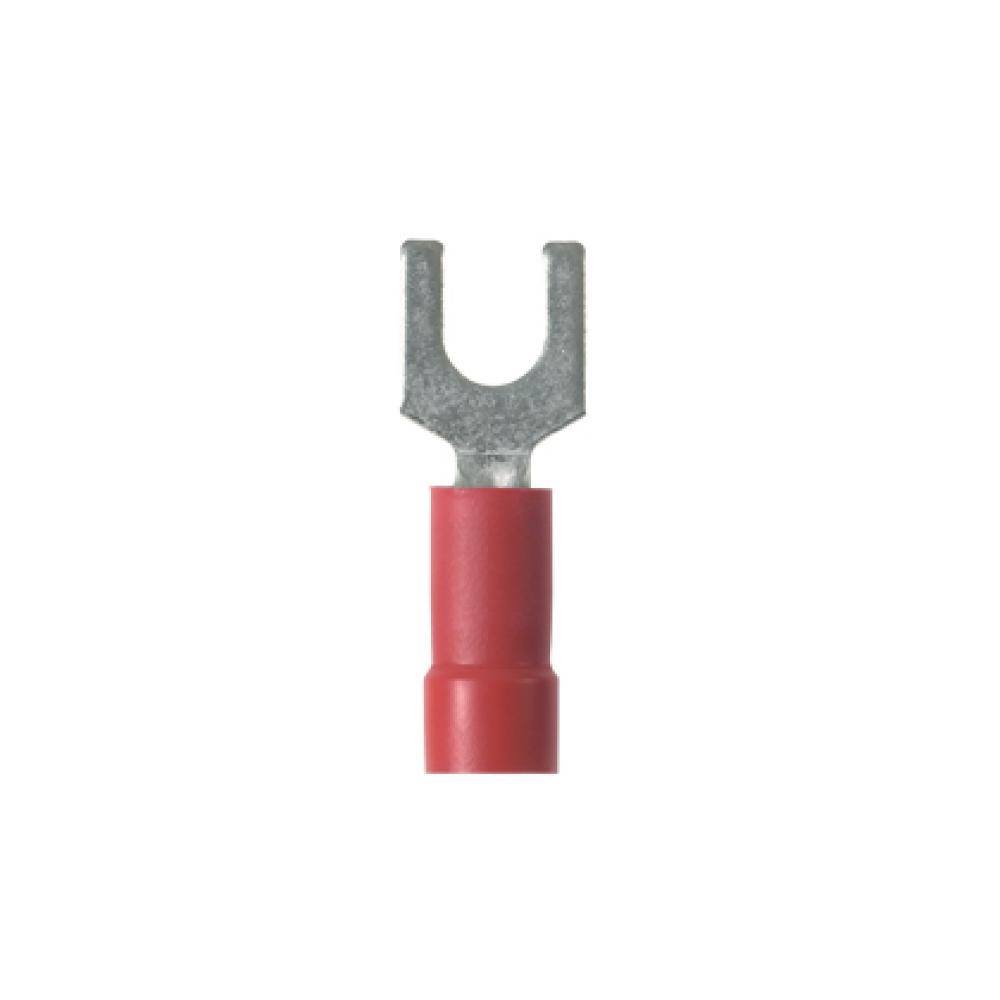

Panduit® Pan-Term® PV18-6F-CY PV Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.86 in L, Brazed Seam Barrel, Copper, Red
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Small Crimp Terminals & Splices
Category Level 3:
Fork Tongue Terminals
Barrel Type:
Brazed Seam
Category Name:
Fork Tongue Terminals
Color:
Red
Conductor Size:
22 to 16
22 to 16 AWG
Conductor Type:
Solid/Stranded
Solid/Stranded Copper
Country:
USA
Finish:
Tin Plated
Length:
0.86
0.86 in
4.0
Material:
Copper
Series:
PV Series
PV-F
Specifications:
5/16 in L Wire Strip, 0.15 in Dia Max Vinyl Insulation, 0.21 in Clearance, Funnel Entry Barrel Configuration
5/16 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, 0.21 in Clearance, Funnel Entry Barrel Configuration
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ABS Approved|CSA C22.2 No. 65|UL 486A/486B|UL94 V-0 Flammability Rating
Stud Size:
#6
Temperature Rating:
221
221 deg F
Tongue Size:
0.3 in W x 0.032 in THK
Tongue Type:
Fork
Type:
Insulated
Unspsc:
39121409
Voltage Rating:
600
600 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Panduit
