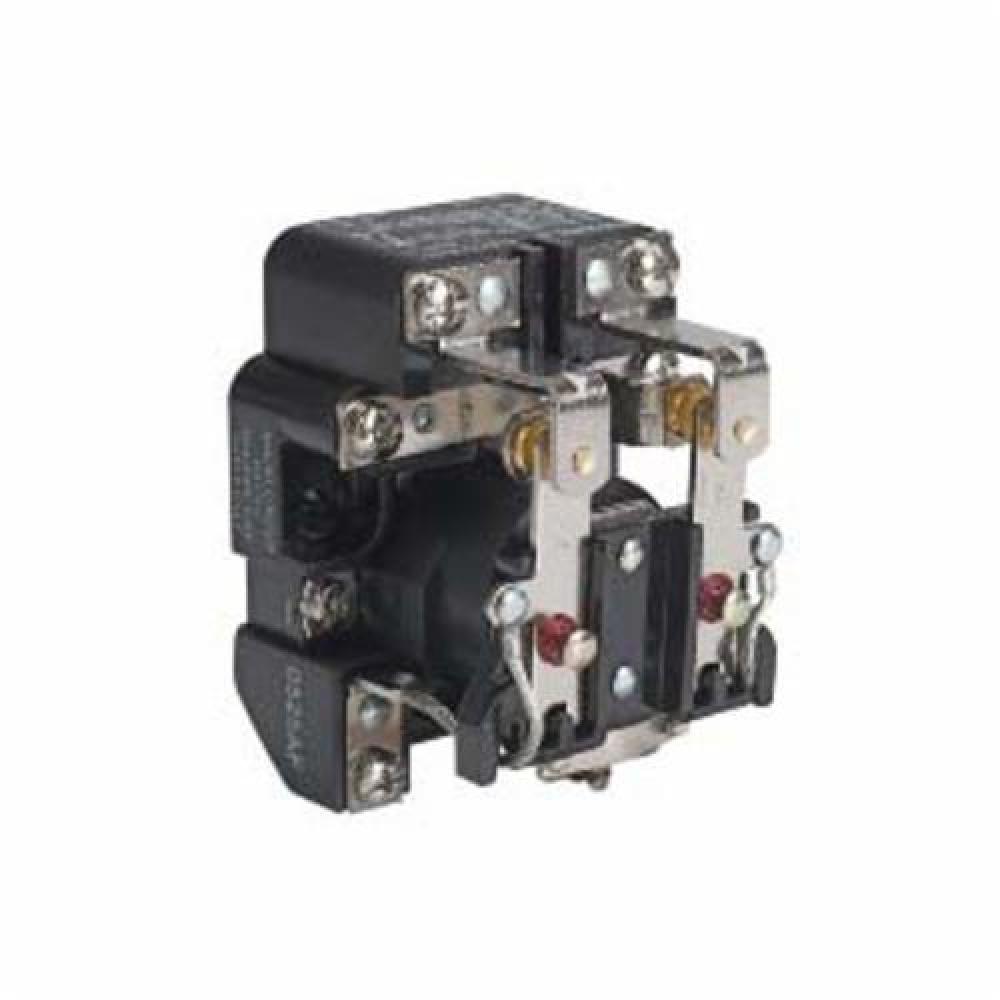

Schneider Electric 8501CO16V24

Schneider Electric 8501CO16V24 by Square D by Schneider Electric

Call for Price
  • Part Number: 8501CO16V24
  • UPC: 00785901052159
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Square D™ 8501CO16V24 1-Phase General Purpose Power Relay, 30 A, 2NO-2NC DPDT Contact Form, 240 VAC Coil
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Relays
Category Level 3:
Power Relays
Amperage Rating:
30
30 A
Application:
For controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals, pumps, conveyors and material handling equipment applications
Category Name:
Power Relays
Coil Voltage:
240
240 VAC
Contact Form:
2NO-2NC DPDT
Contact Rating:
30 A at 300 VAC, 5 A at 600 VAC
Country:
USA
Dimensions:
2.31 in H x 3.12 in W x 2.5 in D
Enclosure Type:
NEMA 1
Frequency Rating:
50/60
50/60 Hz
Length:
4.0
Mounting Type:
Panel
Number of Poles:
2
Power Rating:
1-1/2
1-1/2 hp
Series:
8501C
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|CSA Certified (File 218139 Class 3211 04)|IEC 60947-4-1|RoHS Compliant|UL File No. E78351 CCN NLDX|NLDX7 Listed|PROP65: This product can expose you to chemicals including: Nickel compoun
Temperature Rating:
-22 to 122
-22 to 122 deg F
Terminal Type:
Screw Clamp
Screw/Clamp
Type:
1-Phase General Purpose
Unspsc:
39122324
Volume:
32.0
Weight:
1.0
Additional Information
Manufactured By:
Square D by Schneider Electric
