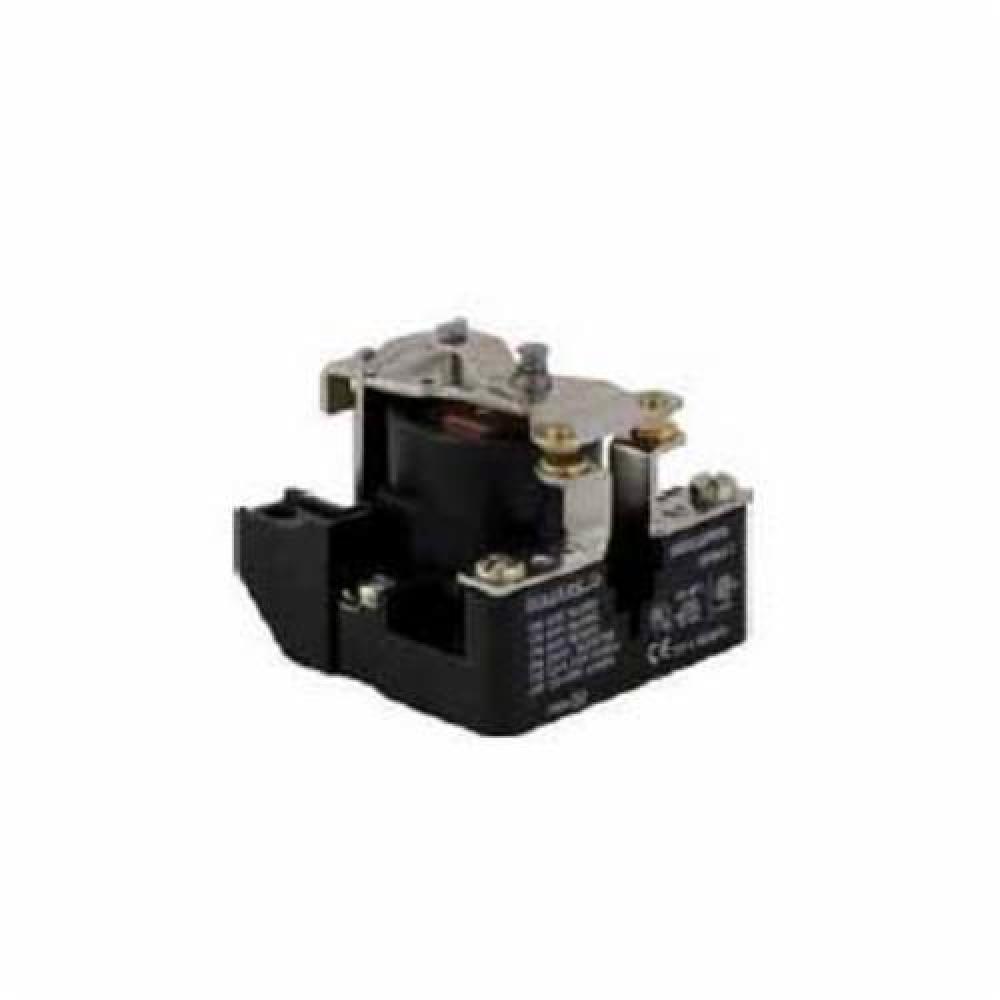

Square D™ 8501CO7V20 1-Phase General Purpose Power Relay, 30 A, 2NO DPST Contact Form, 120 VAC Coil
Details
Application:
For controlling small single phase motors and other light loads such as electric heaters, pilot lights or audible signals, pumps, conveyors and material handling equipment applications
Contact Rating:
30 A at 300 VAC, 5 A at 600 VAC
30 A at 300 VAC/5 A at 600 VAC
Dimensions:
2.25 in H x 2.43 in W x 2.5 in D
2.43 in W x 2.5 in D x 2.25 in H
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|CSA Certified (File 218139 Class 3211 04)|IEC 60947-4-1|RoHS Compliant|UL File No. E78351 CCN NLDX|NLDX7 Listed|PROP65: This product can expose you to chemicals including: Nickel compoun
Temperature Rating:
-22 to 122
-22 to 122 deg F
Manufactured By:
Square D by Schneider Electric
