Schneider Electric 8536SBG2V01H319S

Schneider Electric 8536SBG2V01H319S by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SBG2V01H319S
  • UPC: 00785901457510
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

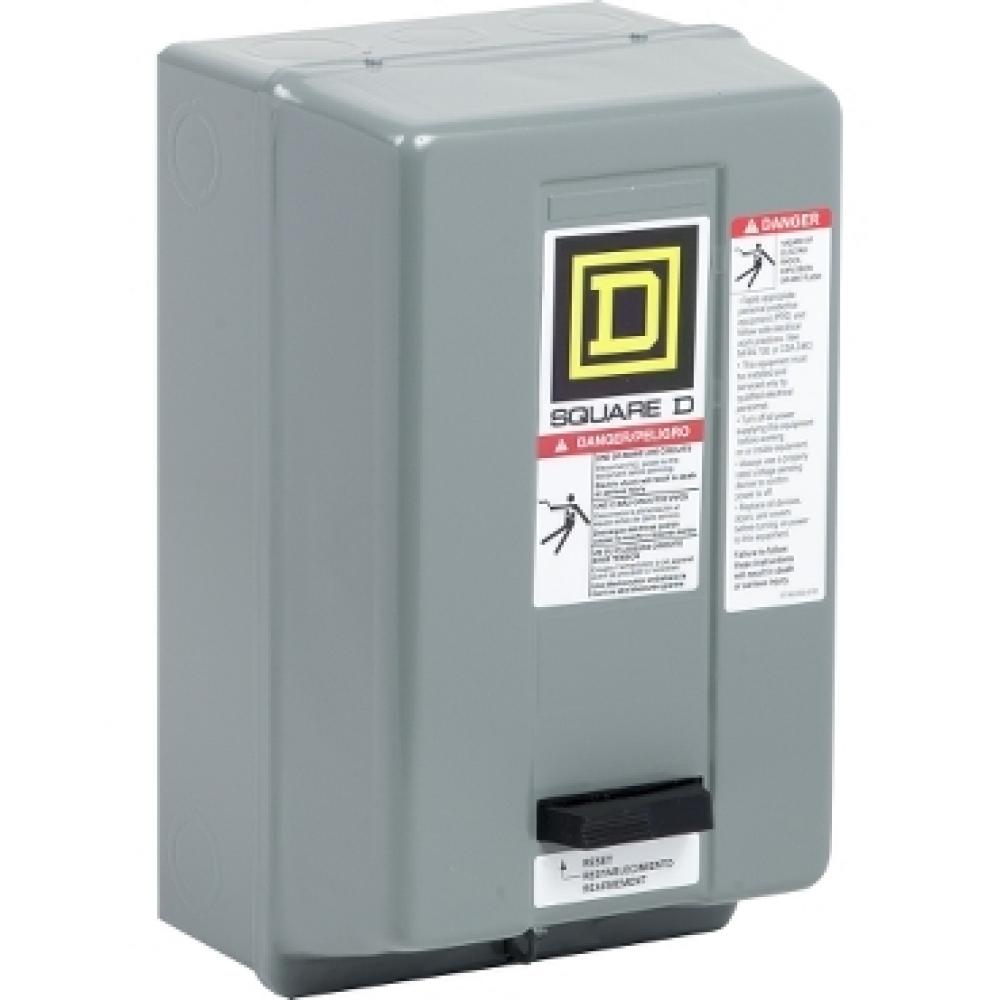

Square D™ 8536SBG2V01H319S Type S Magnetic Starter, 24 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Amperage Rating:
18 A
Coil Voltage:
24 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
5.98 in W x 5.55 in D x 10 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
3 hp at 200/230 VAC/5 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
Motor Logic™ Solid State
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
