Schneider Electric 8536SCG3V02AP1S

Schneider Electric 8536SCG3V02AP1S by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SCG3V02AP1S
  • UPC: 00785901662266
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

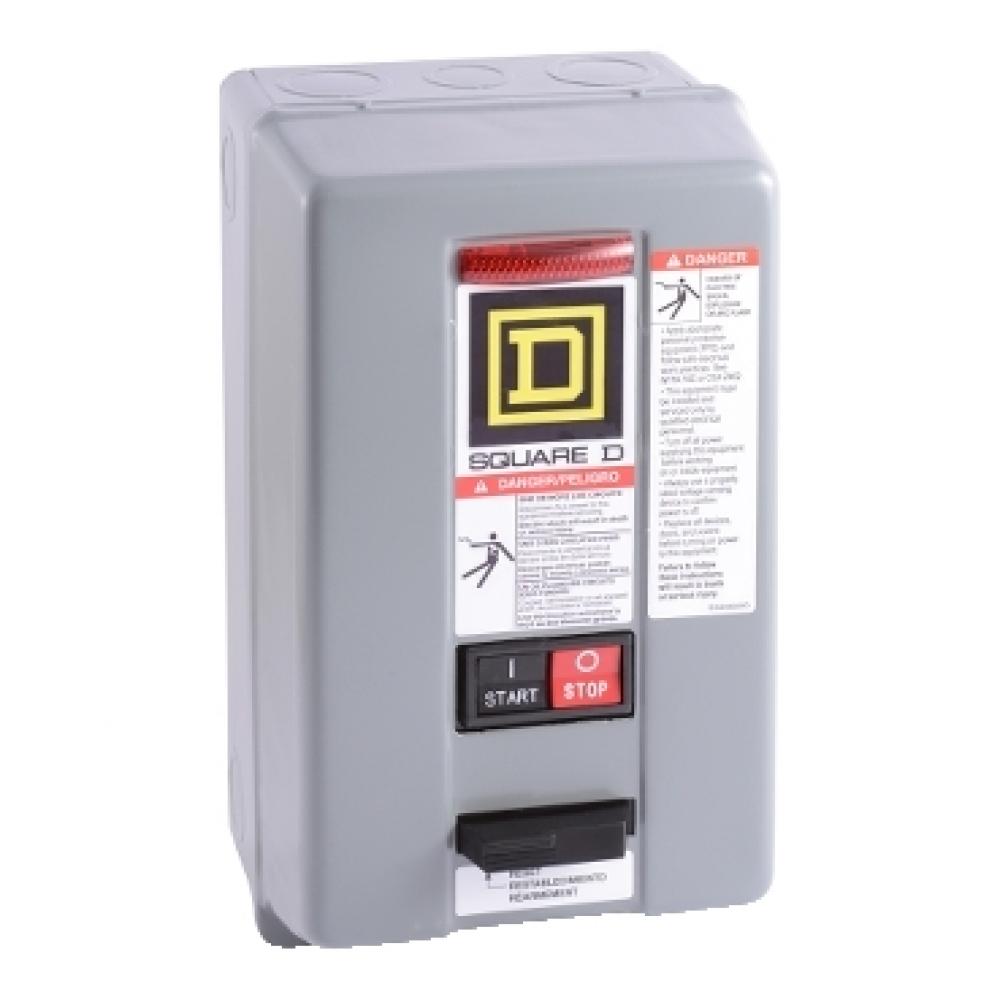

Square D™ 8536SCG3V02AP1S Type S Magnetic Starter, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Non-Reversing
Amperage Rating:
27 A
Coil Voltage:
110 VAC at 50 Hz/120 VAC at 60 Hz
Connection Type:
Screw Clamp
Control Type:
Pushbutton (START/STOP)
Dimensions:
5.98 in W x 5.55 in D x 10 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
7.5 hp at 200/230 VAC/10 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
