Schneider Electric 8536SCH1V03

Schneider Electric 8536SCH1V03 by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SCH1V03
  • UPC: 00785901906087
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

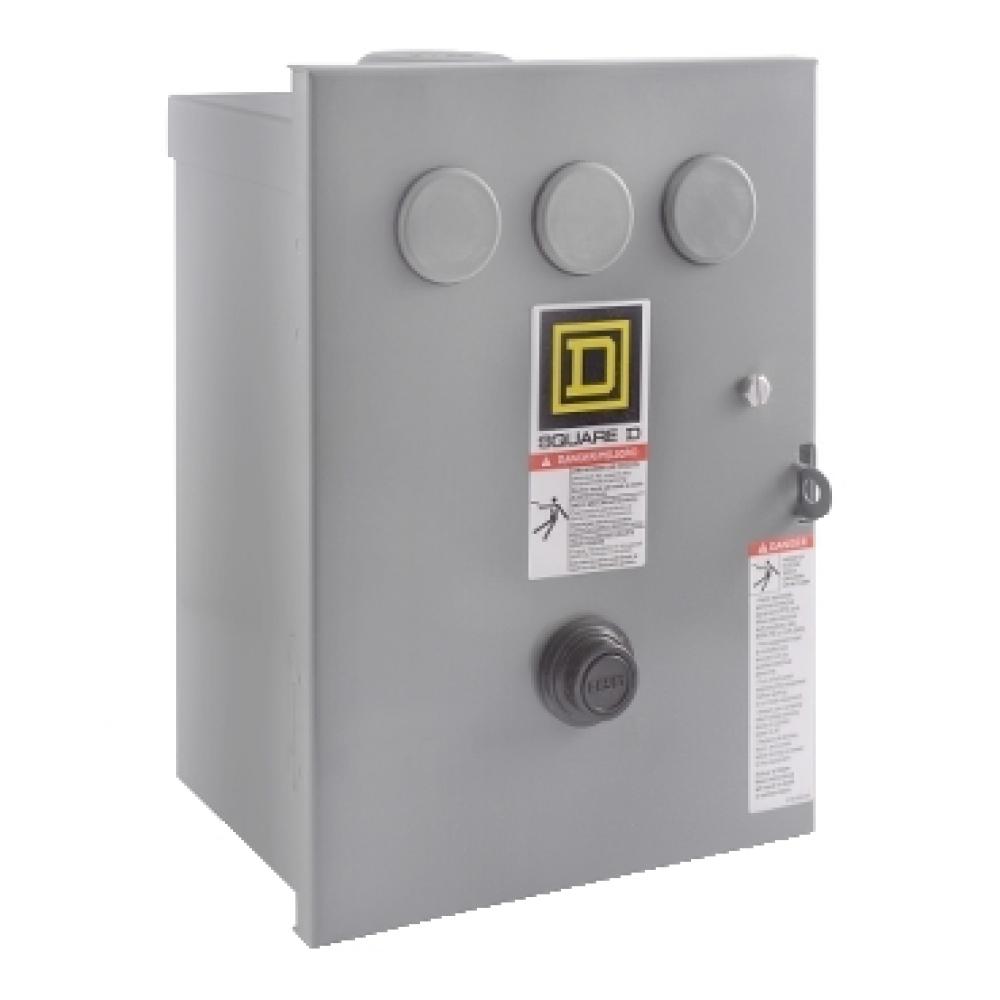

Square D™ 8536SCH1V03 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, 2 Poles, NEMA 3R Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Amperage Rating:
27 A
Coil Voltage:
220 VAC at 50 Hz/240 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
8.86 in W x 7.13 in D x 12.28 in H
Enclosure Type:
NEMA 3R
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
2 hp at 115 VAC/3 hp at 230 VAC
Number of Poles:
2
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
1 ph
Reset Type:
Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
