Schneider Electric 8536SCW23V03

Schneider Electric 8536SCW23V03 by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SCW23V03
  • UPC: 00785901853909
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

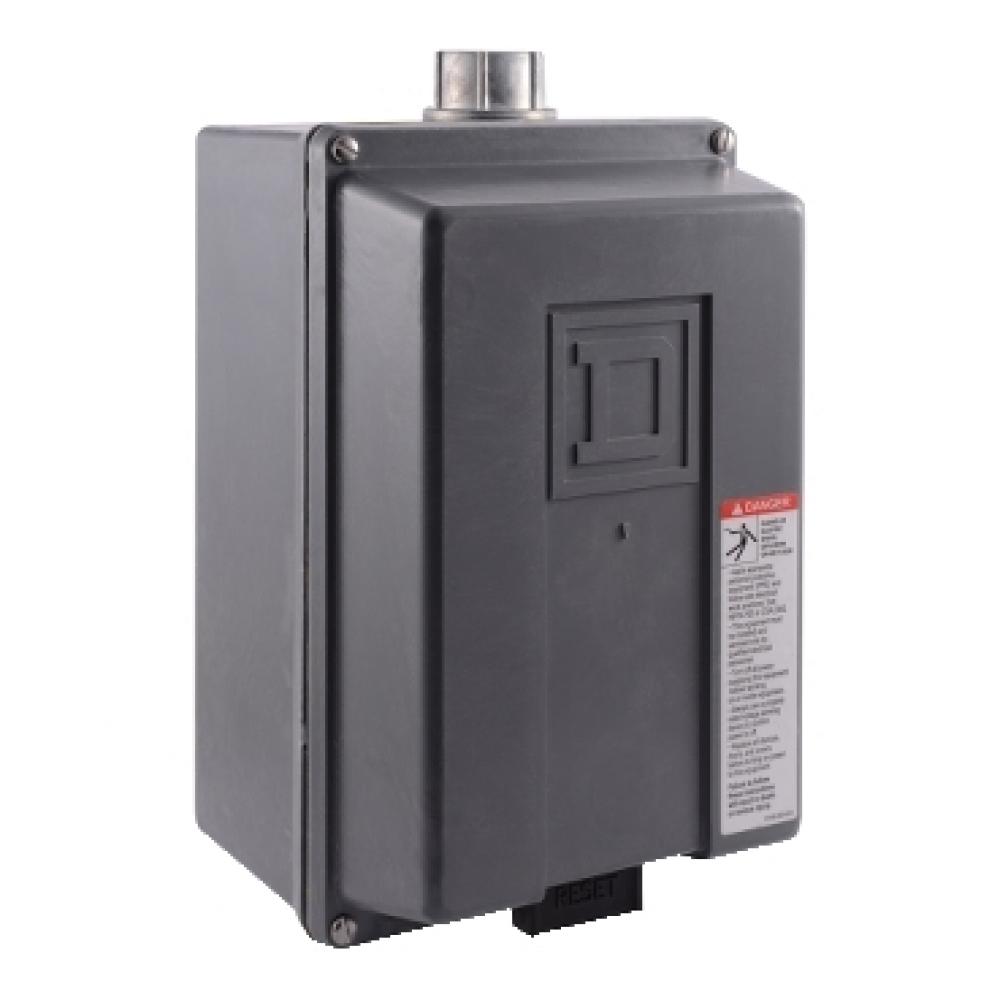

Square D™ 8536SCW23V03 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, 3 Poles, NEMA 4/4X Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Amperage Rating:
27 A
Coil Voltage:
220 VAC at 50 Hz/240 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
6.5 in W x 6.46 in D x 12.13 in H
Enclosure Type:
NEMA 4/4X
Frequency Rating:
50/60 Hz
Material:
Glass Polyester
Motor Power:
7.5 hp at 200/230 VAC/10 hp at 460/575 VAC
Number of Poles:
3
Operating Cycles:
10 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
