Schneider Electric 8536SEG2V06

Schneider Electric 8536SEG2V06 by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SEG2V06
  • UPC: 00785901341093
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

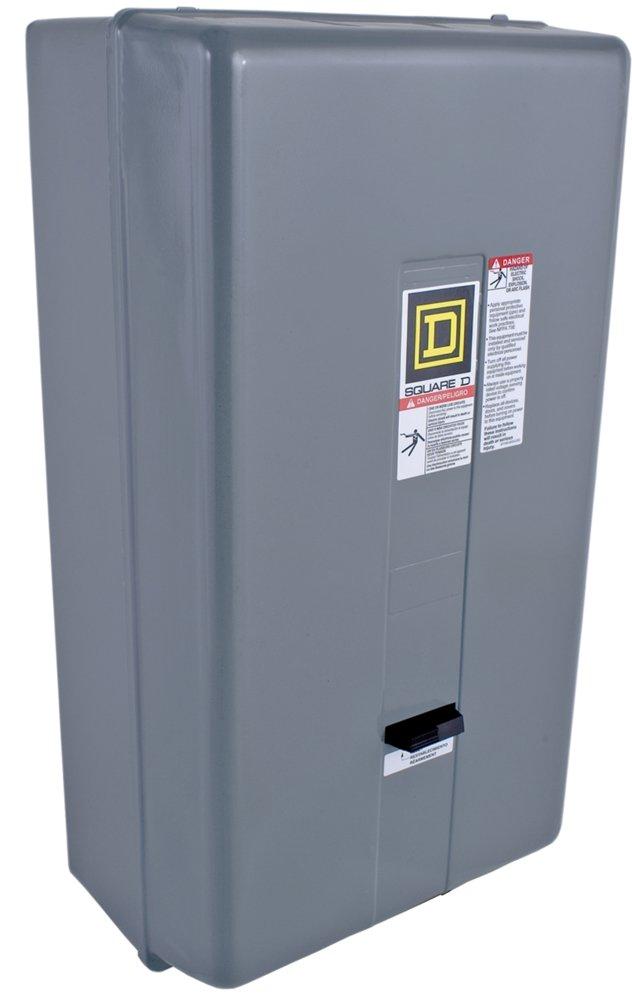

Square D™ 8536SEG2V06 Type S Magnetic Starter, 440 VAC at 50 Hz/480 VAC at 60 Hz V Coil, Non-Reversing Action, 4 Poles, NEMA 1 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Non-Reversing
Amperage Rating:
90 A
Coil Voltage:
440 VAC at 50 Hz/480 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
213 mm W x 291 mm D x 213 mm H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC
Number of Poles:
4
Operating Cycles:
5 cpm
Operating Temperature:
0 to 40 deg C Ambient
Phase:
2 ph
Reset Type:
(2) Thermal Melting Alloy
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
