Schneider Electric 8536SEO1V03H30

Schneider Electric 8536SEO1V03H30 by Square D by Schneider Electric

Call for Price
  • Part Number: 8536SEO1V03H30
  • UPC: 00785901807247
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

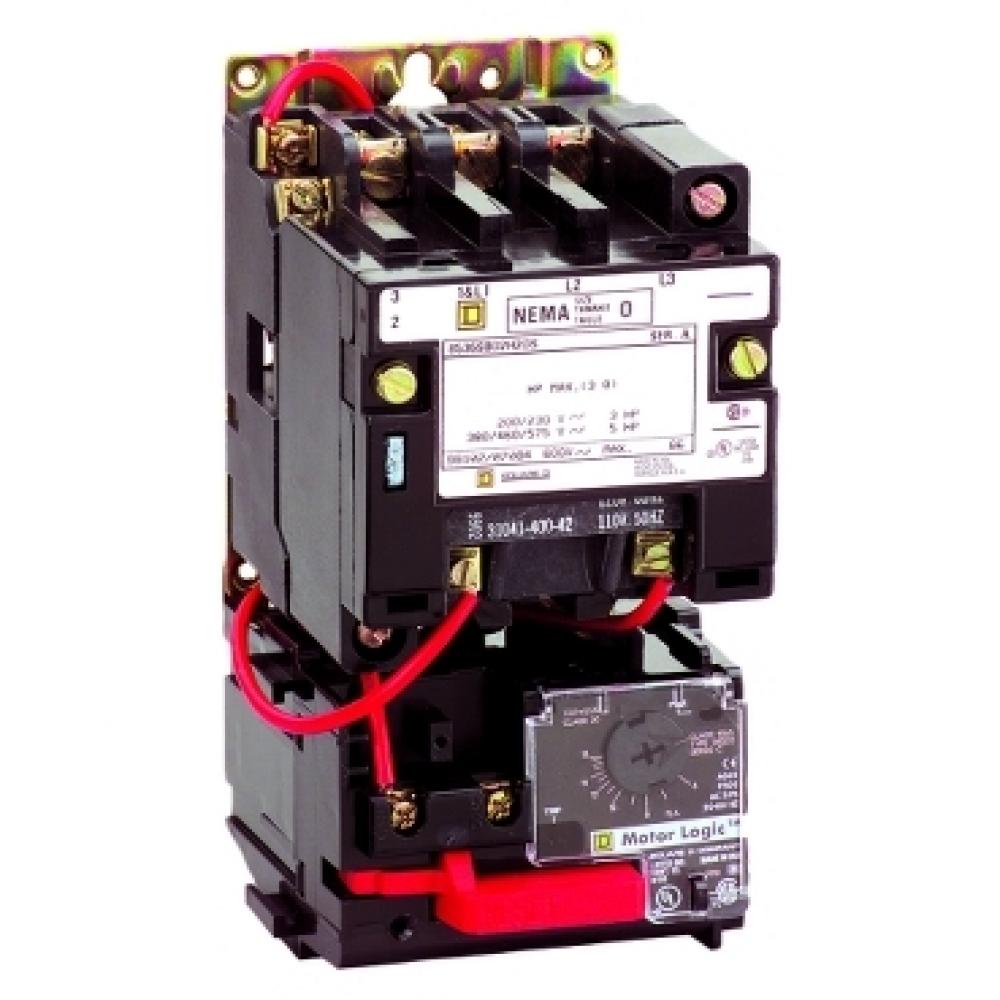

Square D™ 8536SEO1V03H30 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Non-Reversing
Amperage Rating:
90 A
Coil Voltage:
220 VAC at 50 Hz/240 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
5.47 in W x 6.5 in D x 11.1 in H
Enclosure Type:
Open
Frequency Rating:
50/60 Hz
Motor Power:
25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
0 to 40 deg C
Overload Relay:
Motor Logic™ Solid State
Phase:
3 ph
Series:
8536
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
