Schneider Electric 8538SCG34V81FF4T

Schneider Electric 8538SCG34V81FF4T by Square D by Schneider Electric

Call for Price
  • Part Number: 8538SCG34V81FF4T
  • UPC: 00785901720713
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

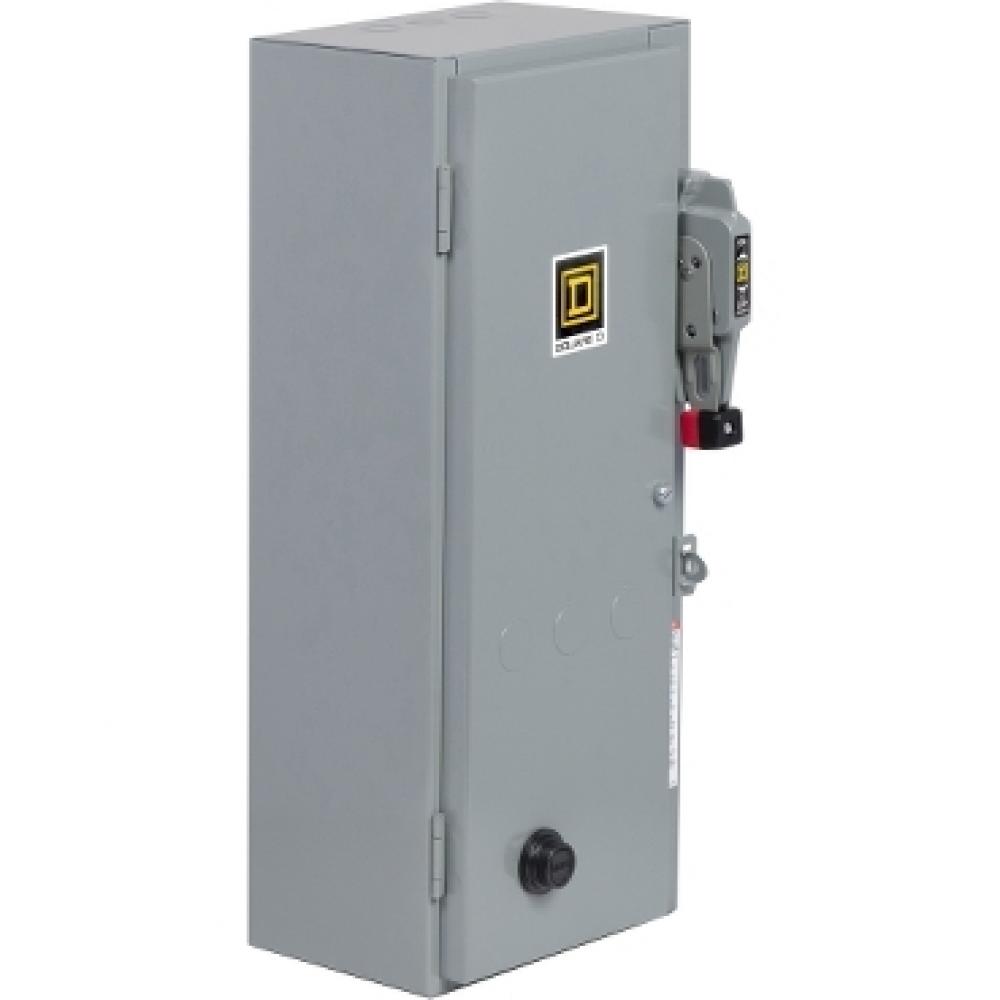

Square D™ 8538SCG34V81FF4T Type S Combination Magnetic Starter With Fusible Disconnect Switch, 480/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
27 A
Coil Voltage:
480/120 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
9.5 in W x 8.34 in D x 22.5 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
10 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8538
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
7.5 kW at 480/600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
