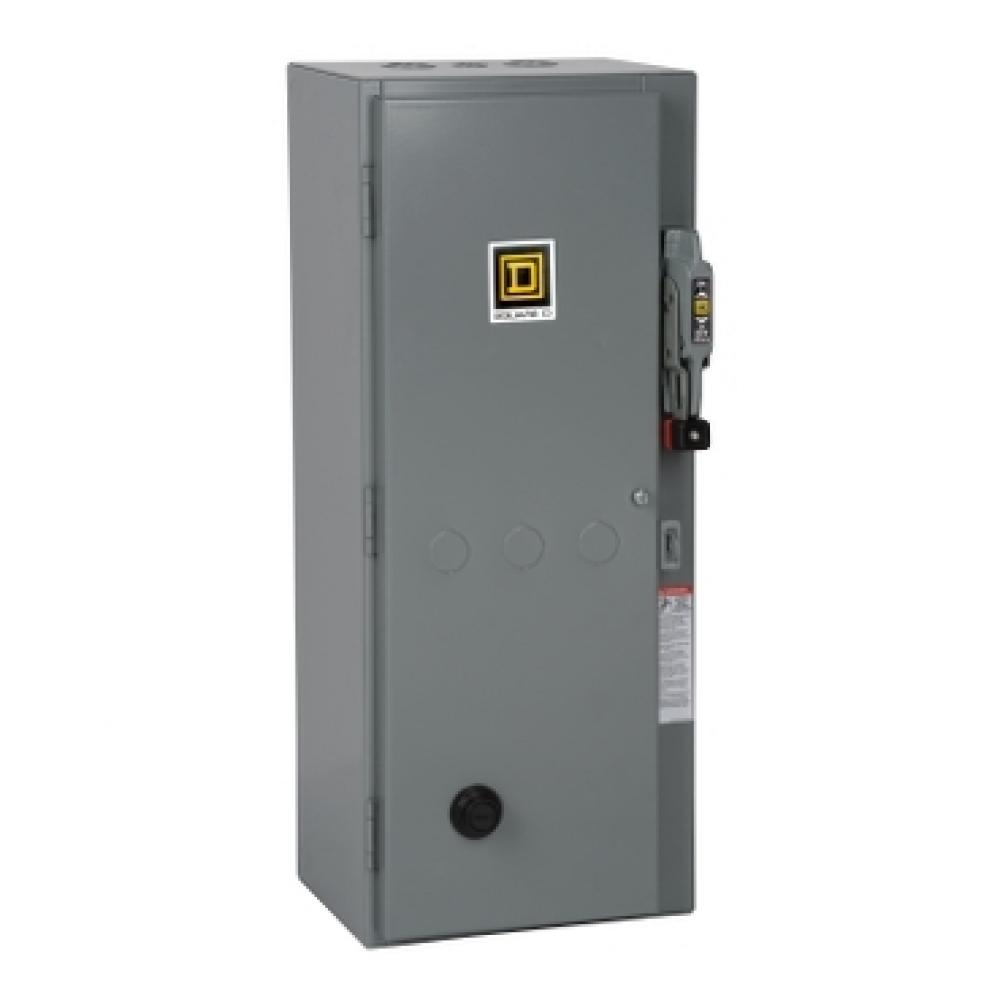

Schneider Electric 8538SDG11V02S

Schneider Electric 8538SDG11V02S by Square D by Schneider Electric

Call for Price
  • Part Number: 8538SDG11V02S
  • UPC: 00785901515449
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Square D™ 8538SDG11V02S Type S Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110 VAC at 50 Hz/120 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 1
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
45 A
Coil Voltage:
110 VAC at 50 Hz/120 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
10.5 in W x 9.59 in D x 26 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8538
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
7.5 kW at 208 VAC/11 kW at 240 VAC/18.5 kW at 480/600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
