Schneider Electric 8539SFG44V06

Schneider Electric 8539SFG44V06 by Square D by Schneider Electric

Call for Price
  • Part Number: 8539SFG44V06
  • UPC: 00785901604181
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

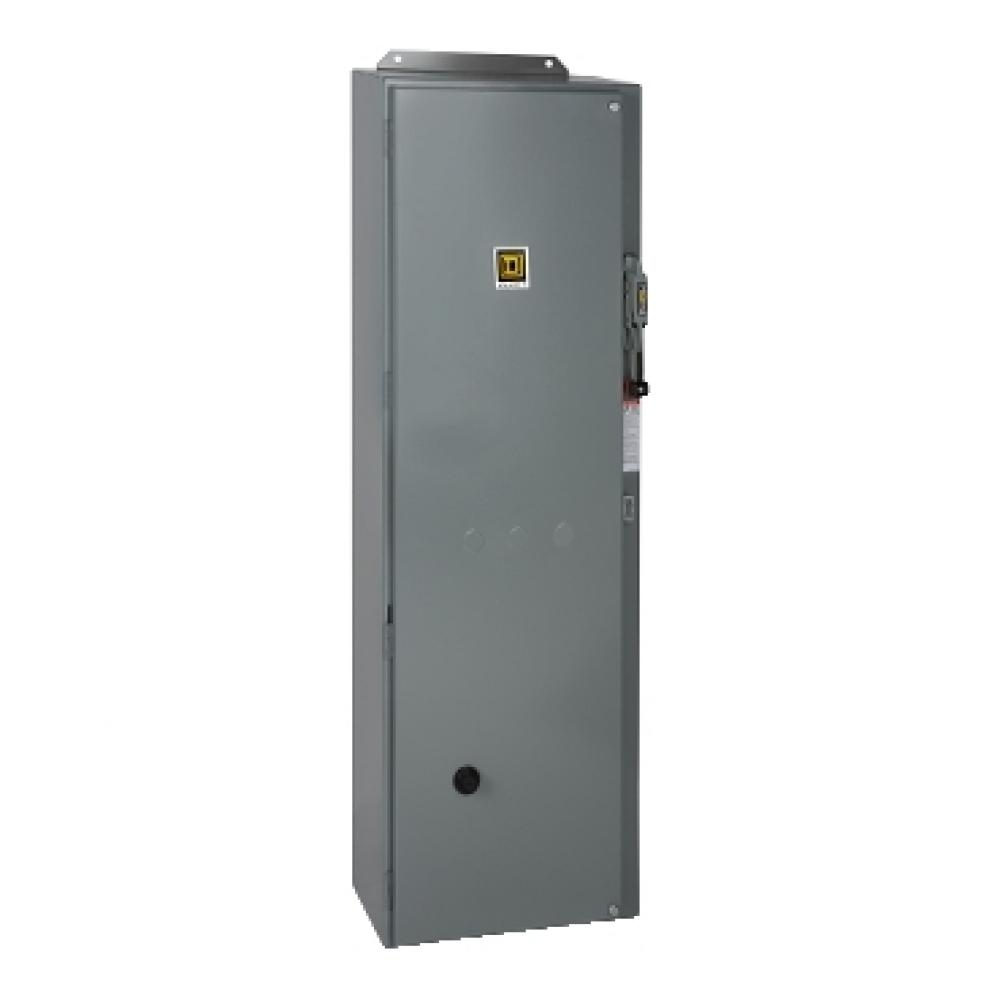

Square D™ 8539SFG44V06 Type S Combination Magnetic Starter With Mag-Gard® Electronic Motor Circuit Protector, 440 VAC at 50 Hz/480 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
135 A
Coil Voltage:
440 VAC at 50 Hz/480 VAC at 60 Hz
Connection Type:
Box Lug
Dimensions:
16 in W x 10.53 in D x 52.5 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
30 to 40 hp at 200 VAC/40 to 50 hp at 230 VAC/60 to 100 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8539
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
37 kW at 240 VAC/75 kW at 480 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
