Schneider Electric 8736SAO16V03

Schneider Electric 8736SAO16V03 by Square D by Schneider Electric

Call for Price
  • Part Number: 8736SAO16V03
  • UPC: 00785901903703
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

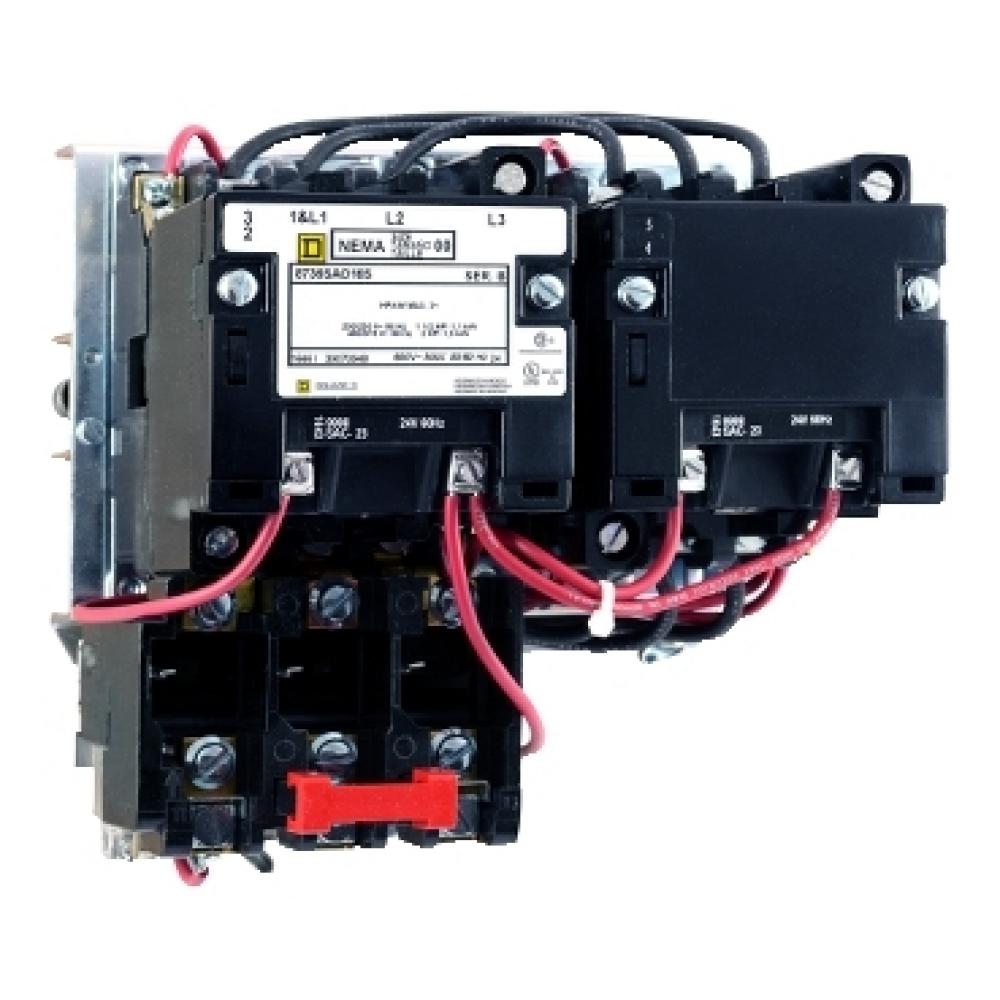

Square D™ 8736SAO16V03 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, Reversing Action, 3 Poles, Open Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Reversing
Amperage Rating:
9 A
Coil Voltage:
220 VAC at 50 Hz/240 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
7.13 in W x 5.31 in D x 6.93 in H
Enclosure Type:
Open
Frequency Rating:
50/60 Hz
Motor Power:
1.5 hp at 200/230 VAC/2 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
0 to 40 deg C
Overload Relay:
Thermal Melting Alloy
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8736
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
