Schneider Electric 8736SEO2V07

Schneider Electric 8736SEO2V07 by Square D by Schneider Electric

Call for Price
  • Part Number: 8736SEO2V07
  • UPC: 00785901724742
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

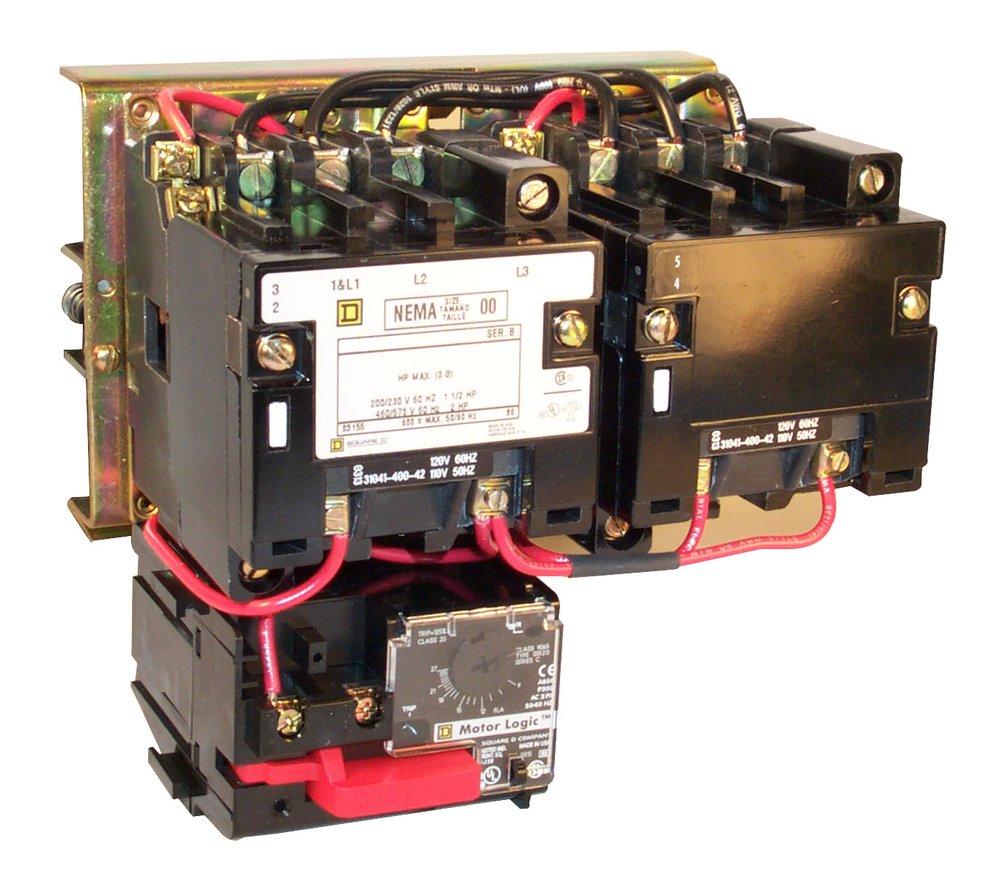

Square D™ 8736SEO2V07 Type S Magnetic Starter, 550 VAC at 50 Hz/600 VAC at 60 Hz V Coil, Reversing Action, 3 Poles, Open Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Starters
Action:
Reversing
Amperage Rating:
90 A
Coil Voltage:
550 VAC at 50 Hz/600 VAC at 60 Hz
Connection Type:
Screw Clamp
Dimensions:
12.72 in W x 7.01 in D x 11.73 in H
Enclosure Type:
Open
Frequency Rating:
50/60 Hz
Motor Power:
25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
0 to 40 deg C Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8736
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
