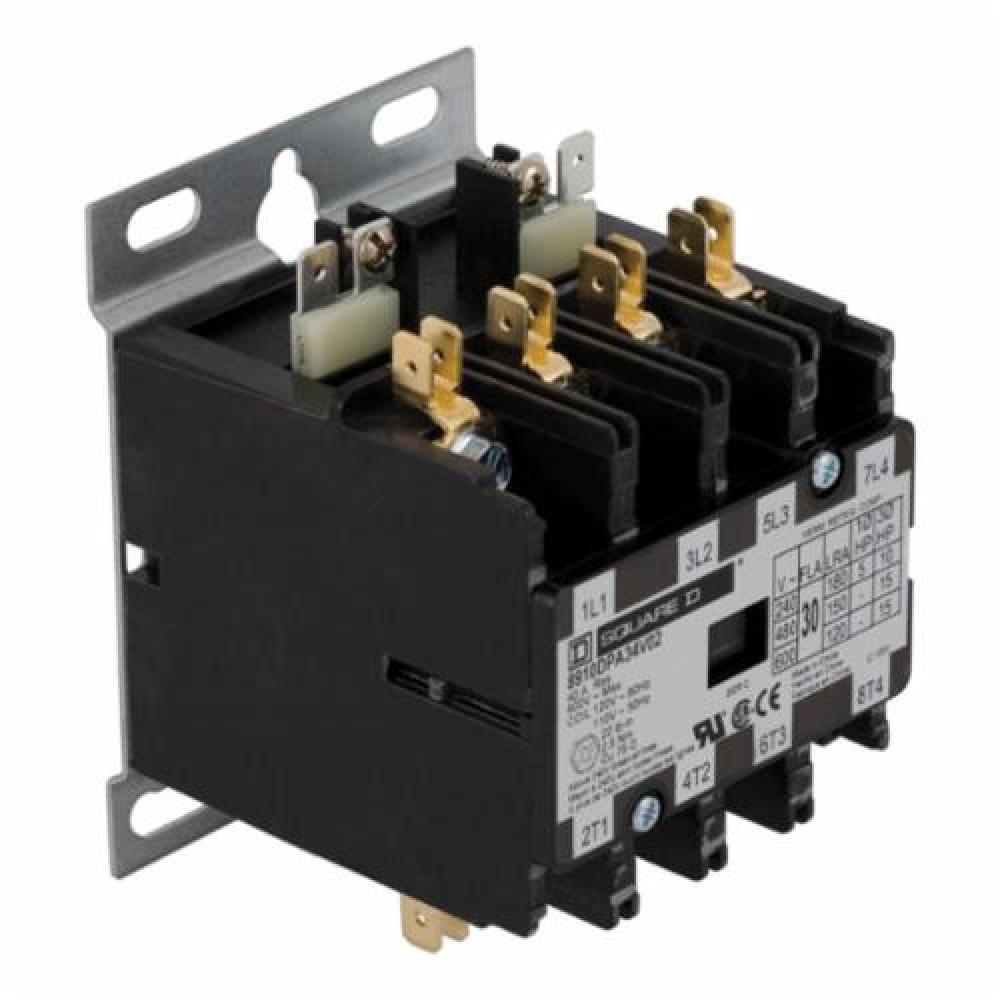

Square D™ 8910DPA44V02 Class 8910 Type DPA 3-Phase Electro-Mechanical Definite Purpose Contactor, 110/120 VAC Coil, 40 A, 4NO, 4 Poles
Details
Category Level 3:
Definite Purpose Contactors AC
Application:
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment
Category Name:
Definite Purpose Contactors AC
Connection Type:
Binder Head Screw/Box Lug/Quick-Connect
Binding Head Screw
Quick-Connect/Box Lug
Dimensions:
4 in H x 3.17 in W x 3.11 in D
69.8 mm H x 77 mm W x 95.8 mm D
Operating Cycles:
500000
500000 Cycles
500000 Mechanical/200000 Electrical
500000 Mechanical/200000 Electrical Cycles
Operating Temperature:
0 to 65
0 to 65 deg C
32 to 149
32 to 149 deg F
Series:
8910
8910DPA
Class 8910 Type DPA
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E3190|CSA File No. LR25490/Class 3211-04|CE Marked|CCN NLDX2|UR Certified|California Provision: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Terminal Type:
Binder Head Screw/Box Lug/Quick-Connect
Box Lug/Quick-Connect
Quick-Connect
Type:
3-Phase Electro-Mechanical
Electro-Mechanical
Manufactured By:
Square D by Schneider Electric
