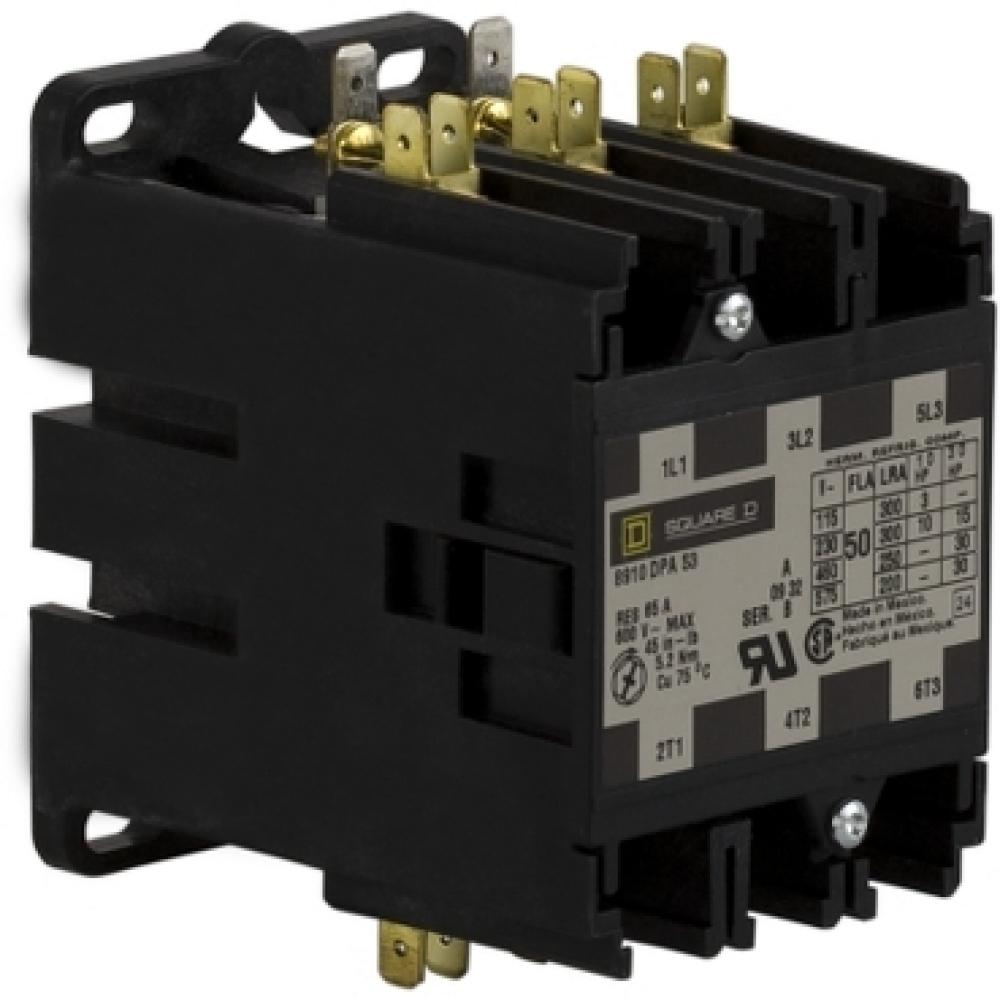

Square D™ 8910DPA53V02 Class 8910 Type DPA 3-Phase Electro-Mechanical Definite Purpose Contactor, 110/120 VAC Coil, 50 A, 3NO, 3 Poles
Details
Category Level 3:
Definite Purpose Contactors AC
Application:
For heating, air conditioning, refrigeration, data processing and food service equipment
Category Name:
Definite Purpose Contactors AC
Connection Type:
Binder Head Screw/Box Lug/Quick-Connect
Binding Head Screw
Quick-Connect/Box Lug
Dimensions:
4.06 in H x 2.56 in W x 3.67 in D
60.2 mm H x 76 mm W x 82.5 mm D
Operating Cycles:
500000
500000 Cycles
500000 Mechanical/200000 Electrical
500000 Mechanical/200000 Electrical Cycles
Operating Temperature:
0 to 65
0 to 65 deg C
32 to 149
32 to 149 deg F
Series:
8910
8910DPA
Class 8910 Type DPA
Standard/Approvals:
UL E3190|CCN NLDX2 Listed|CSA LR25490 Certified|Class 3211 04|CE Certified
Terminal Type:
Binder Head Screw/Box Lug/Quick-Connect
Box Lug/Quick-Connect
Quick-Connect
Type:
3-Phase Electro-Mechanical
Electro-Mechanical
Manufactured By:
Square D by Schneider Electric
