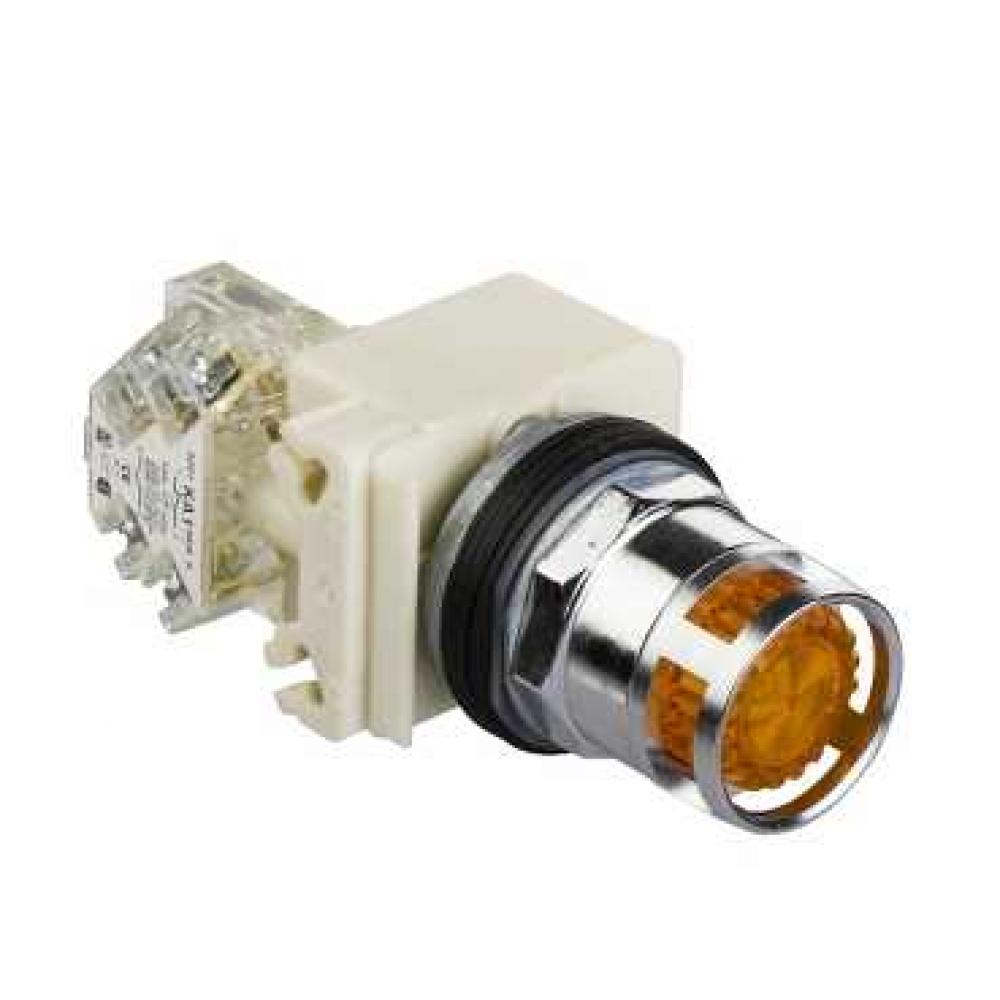

SQD 9001K3L35LYAH13 PUSHBUTTON 600V
Details
Category Level 2:
Pushbuttons & Pilot Lights
Contact Rating:
6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC
Enclosure Type:
NEMA 1/2/3/3R/4/6/12/13/IP65
Environmental Conditions:
-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Operator Type:
Extended Guard Button/Spring Return
Standard/Approvals:
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other r
Type:
Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked
Manufactured By:
Square D by Schneider Electric
