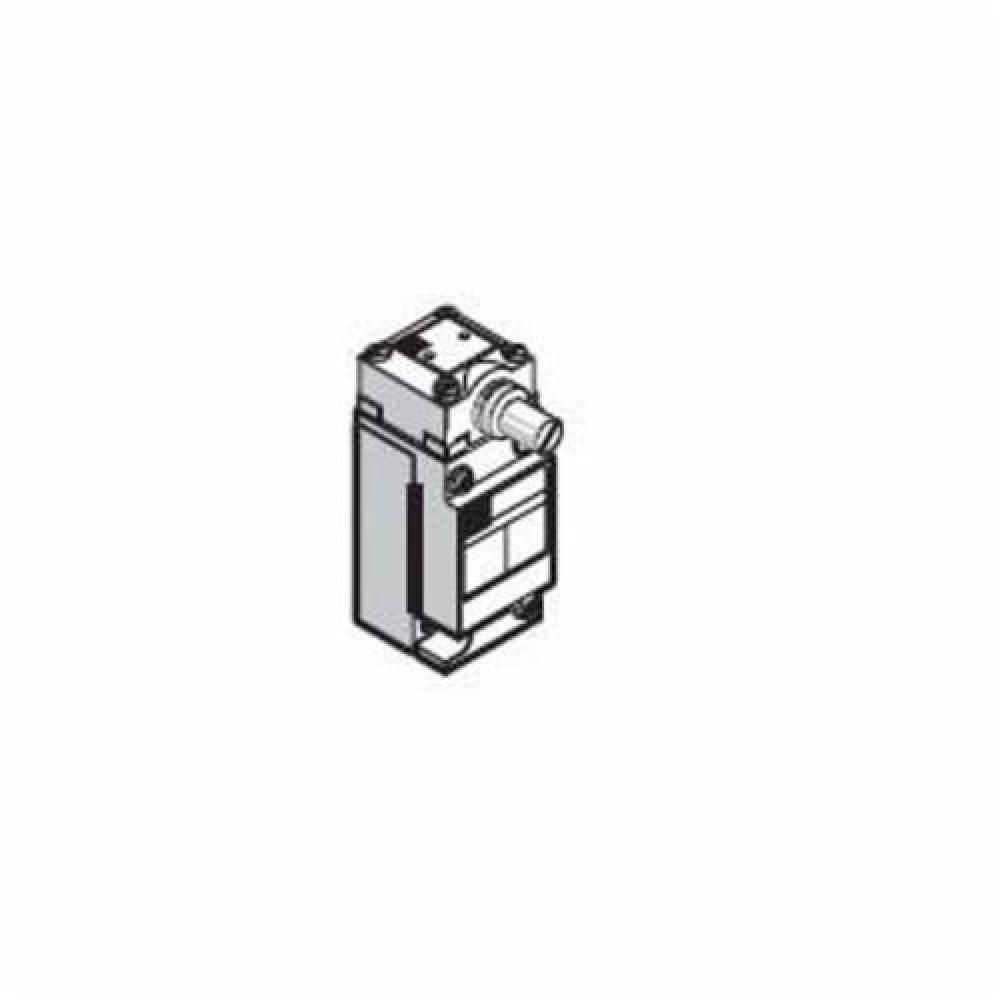

Square D™ 9007C68T10 Standard Actuated Limit Switch, 600 VAC, 10 A, Lever Arm Actuator, 2NO-2NC, 2 Poles
Details
Category Level 2:
Limit Switches & Accessories
Category Level 3:
Rotary Actuated Limit Switches
Application:
9007CR Heavy Duty Limit Switch, Material Handling Such As Mechanical Conveying, Automotive, Machine Tool and Packaging
Category Name:
Rotary Actuated Limit Switches
Contact Rating:
1.2 A at 600 VAC/0.11 A at 250 VDC
1.2 A, 600 VAC, 0.11 A, 250 VDC
Environmental Conditions:
Operating Temperature:
-20 to 185
-20 to 185 deg F
Size:
1.55 in W x 2.5 in D x 4.02 in H
4.02 in H x 1.55 in W x 2.5 in D
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANCE|CE Marked|CSA File No. LR25490 Class 3211-03|NOM Certified|UL File No. E42259 CCN NKCR Type 6P|PPROP65: This product can expose you to chemicals including: DINP, which is known to the State of C
Manufactured By:
Square D by Schneider Electric
