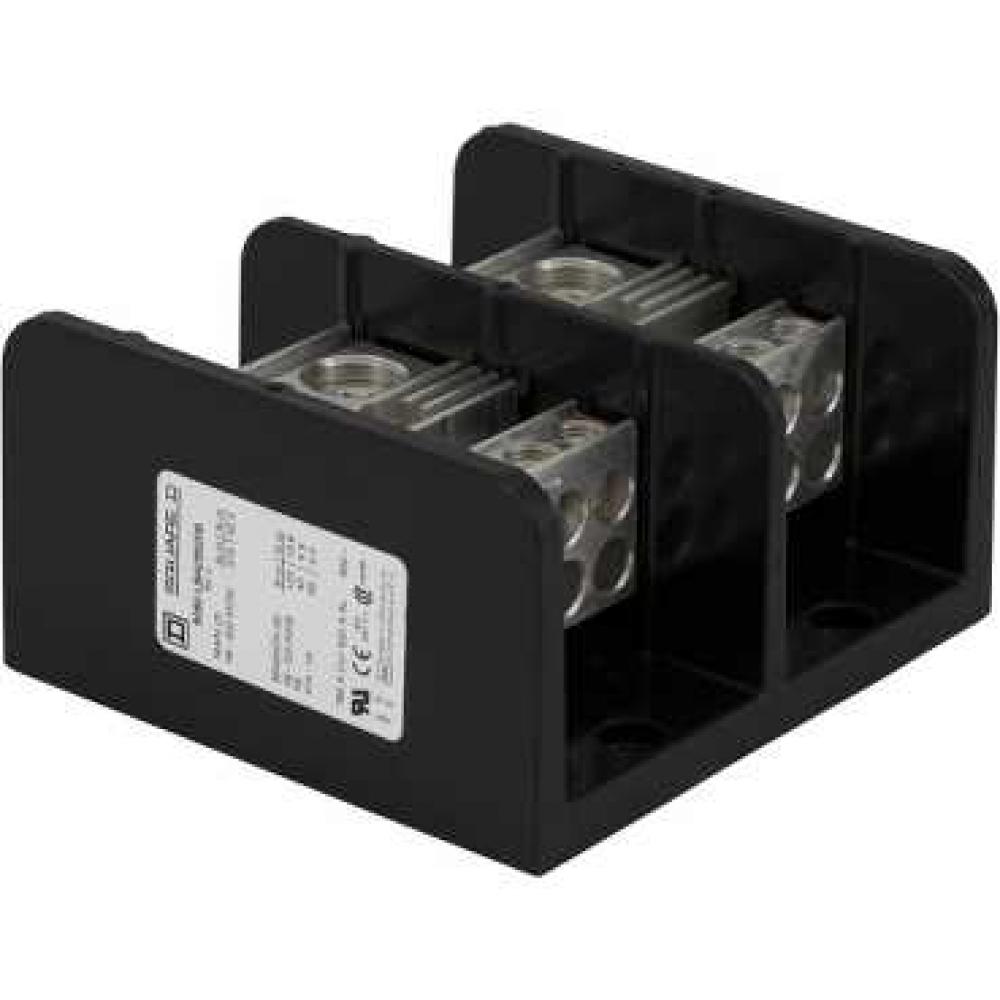

Square D™ 9080LBA265208 Standard Multi Pole Distribution Block, 600 VAC/VDC, 620/760 A, 2 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, Phenolic
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Power Distribution Blocks
Category Level 3:
Multi Pole Distribution Blocks
Application:
For 9080LB, 9080LB52 power distribution block covers and general purpose applications
Category Name:
Multi Pole Distribution Blocks
Dimensions:
5.5 in H x 5.88 in W x 3.12 in D
Primary Connections/Pole:
Secondary Connection/Pole:
Short Circuit Current Rating:
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|CE Marked|UL94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause
Wire Size:
4 AWG to 500 kcmil, 14 to 2/0 AWG
Manufactured By:
Square D by Schneider Electric
