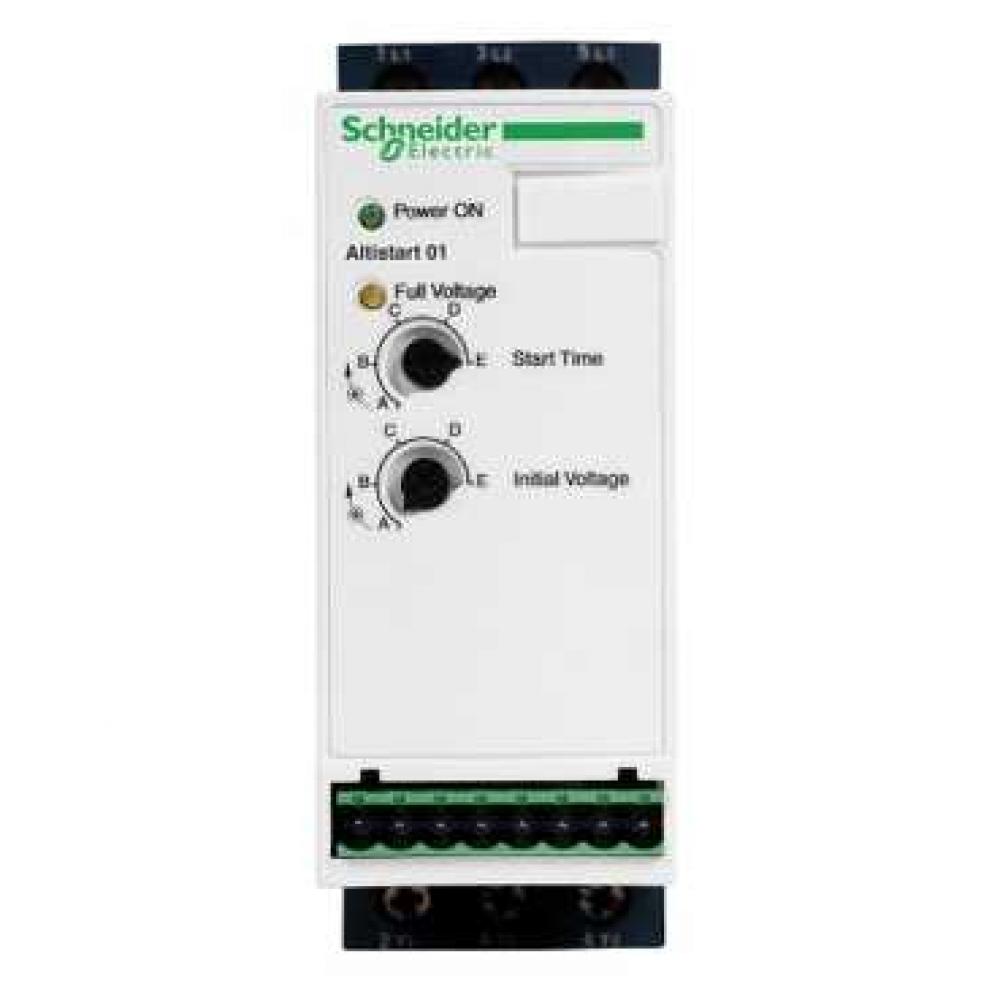

Schneider Electric ATS01N112FT

Schneider Electric ATS01N112FT by Square D by Schneider Electric

Call for Price
  • Part Number: ATS01N112FT
  • UPC: 00785901667452
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Schneider Electric Altistart® 01 ATS01N112FT Soft Starter, 110/240 VAC Coil, IP20 Enclosure
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Soft Starters
Category Level 3:
Open Soft Starters
Amperage Rating:
12
12 A
Application:
Asynchronous Motors, Conveyors, Conveyor Belts, Pumps, Fans, Compressors, Automatic Doors And Gates, Small Cranes and Belt Driven Machinery
Category Name:
Open Soft Starters
Coil Voltage:
110/240
110/240 VAC
Connection Type:
Screw Clamp
Country:
USA
Dimensions:
124 mm H x 45 mm W x 131 mm D
45 mm W x 131 mm D x 124 mm H
Enclosure Type:
IP20
Frequency Rating:
50/60
50/60 Hz
Length:
6.0
Motor Power:
3 hp/1.5 hp/7.5 hp
3/1.5/7.5
Operating Temperature:
-10 to 40
-10 to 40 deg C
Phase:
1
1 ph
Series:
ATS01
Setting:
1 to 5 s
Standard/Approvals:
UL Listed, B44.1-96, ASME A17.5, CE, CSA, CCC, C-Tick EN, IEC 60947-4-2, GOST Certified, RoHS Compliant, California Provision: WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to
Type:
Internal Bypass
Unspsc:
39121521
Voltage Rating:
110/480
110/480 VAC
Volume:
88.0
Wattage:
1.5/5.5
1.5/5.5 kW
Weight:
1.0
Additional Information
Manufactured By:
Square D by Schneider Electric
