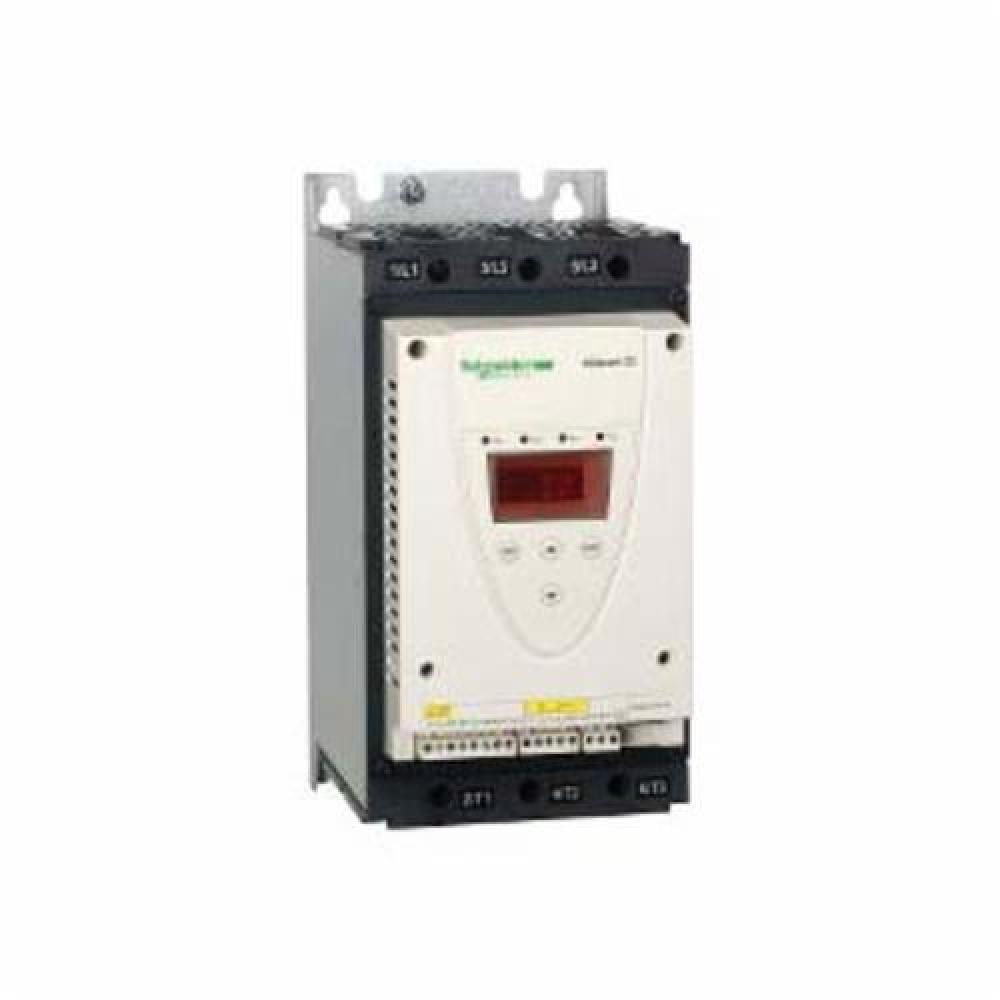

Schneider Electric ATS22D62S6U

Schneider Electric ATS22D62S6U by Square D by Schneider Electric

Call for Price
  • Part Number: ATS22D62S6U
  • UPC: 00785901692287
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Schneider Electric Altistart® 22 ATS22D62S6U Soft Starter With Heat Sink, 110 VAC Coil, 3 Poles, IP20
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Soft Starters
Category Level 3:
Open Soft Starters
Amperage Rating:
63
63 A
Application:
Asynchronous Motor, Centrifugal Pumps, Piston Pumps, Fans, Screw Compressors, Specialist Machinery, Material Handling Conveyors
Category Name:
Open Soft Starters
Coil Voltage:
110
110 VAC
Connection Type:
Plug-In
Country:
USA
Dimensions:
145 mm W x 207 mm D x 295 mm H
295 mm H x 145 mm W x 207 mm D
Enclosure Type:
IP20
Frequency Rating:
50/60
50/60 Hz
Length:
14.0
Motor Power:
15
15 hp
Number of Poles:
3
Operating Temperature:
-10 to 40
-10 to 40 deg C
Phase:
3
3 ph
Series:
ATS22
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CE Marked|CSA/C-Tick Certified|GOST Approved|EN/IEC 60947-4-2|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California
Type:
Internal Bypass
Unspsc:
39121521
Voltage Rating:
208 to 600
208 to 600 VAC
Volume:
1559.0
Wattage:
59
59 W
Weight:
18.0
Additional Information
Manufactured By:
Square D by Schneider Electric
