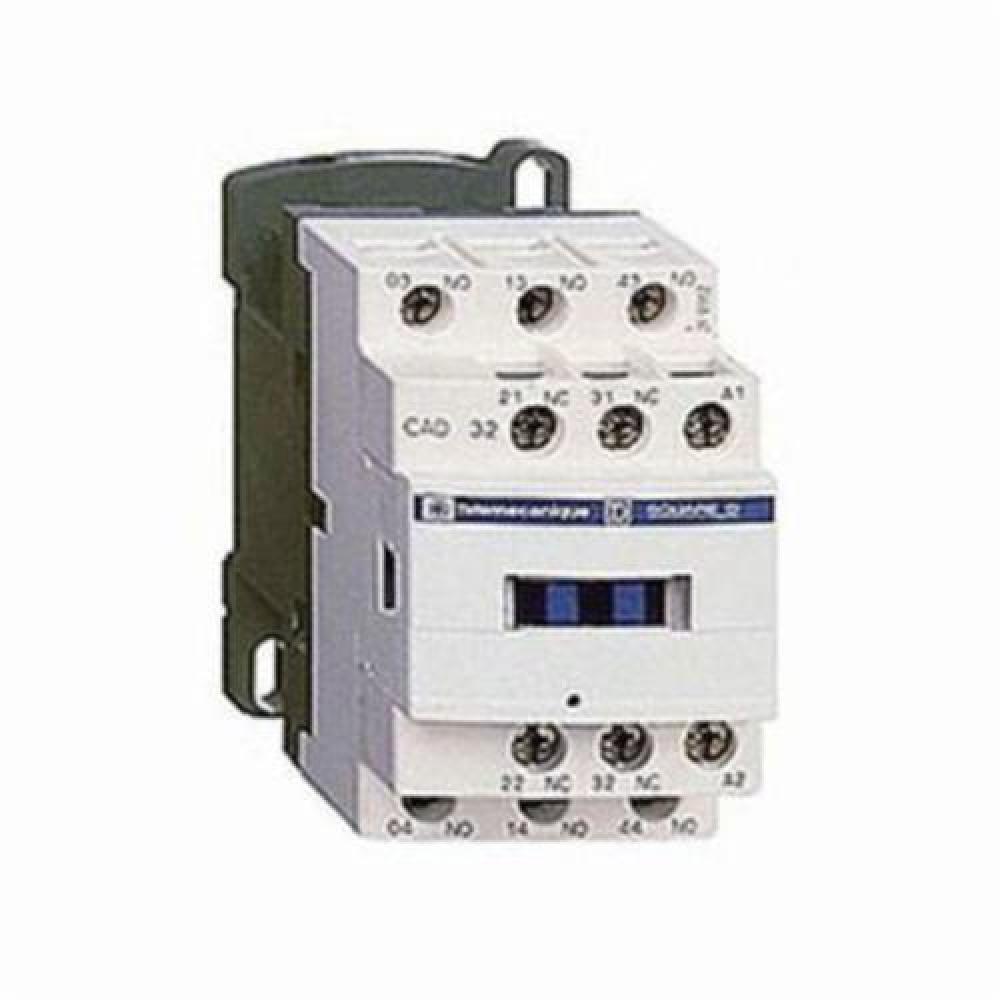

Schneider Electric CAD32T7

Schneider Electric CAD32T7 by Square D by Schneider Electric

Call for Price
  • Part Number: CAD32T7
  • UPC: 00785901204862
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Schneider Electric TeSys™ CAD32T7 D Series Control Relay, 10 A, 3NO-2NC Contact Form, 480 VAC Coil
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Relays
Category Level 3:
IEC Control Relays
Amperage Rating:
10
10 A
5
5 mA
Base Type:
Square
Category Name:
IEC Control Relays
Coil Voltage:
480
480 VAC
Contact Form:
3NO-2NC
Contact Rating:
10 A at 600 VAC
Country:
USA
Dimensions:
45 mm W x 84 mm D x 77 mm H
77 mm H x 45 mm W x 84 mm D
Enclosure Type:
IP2X
Frequency Rating:
400 Hz
50/60
50/60 Hz
Length:
2.0
Mounting Type:
DIN Rail/Panel
Surface
Number of Poles:
5
Power Rating:
70
70 VA
Series:
D Series
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E164353 CCN NKCR|CSA File No. LR43364 Class 3211 03|CE Marked|IEC Certified|eccn: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, whi
Temperature Rating:
-40 to 70
-40 to 70 deg C
Terminal Type:
Screw Clamp
Screw/Clamp
Type:
D-Line
Unspsc:
39122331
Volume:
36.0
Weight:
1.0
Additional Information
Manufactured By:
Square D by Schneider Electric
