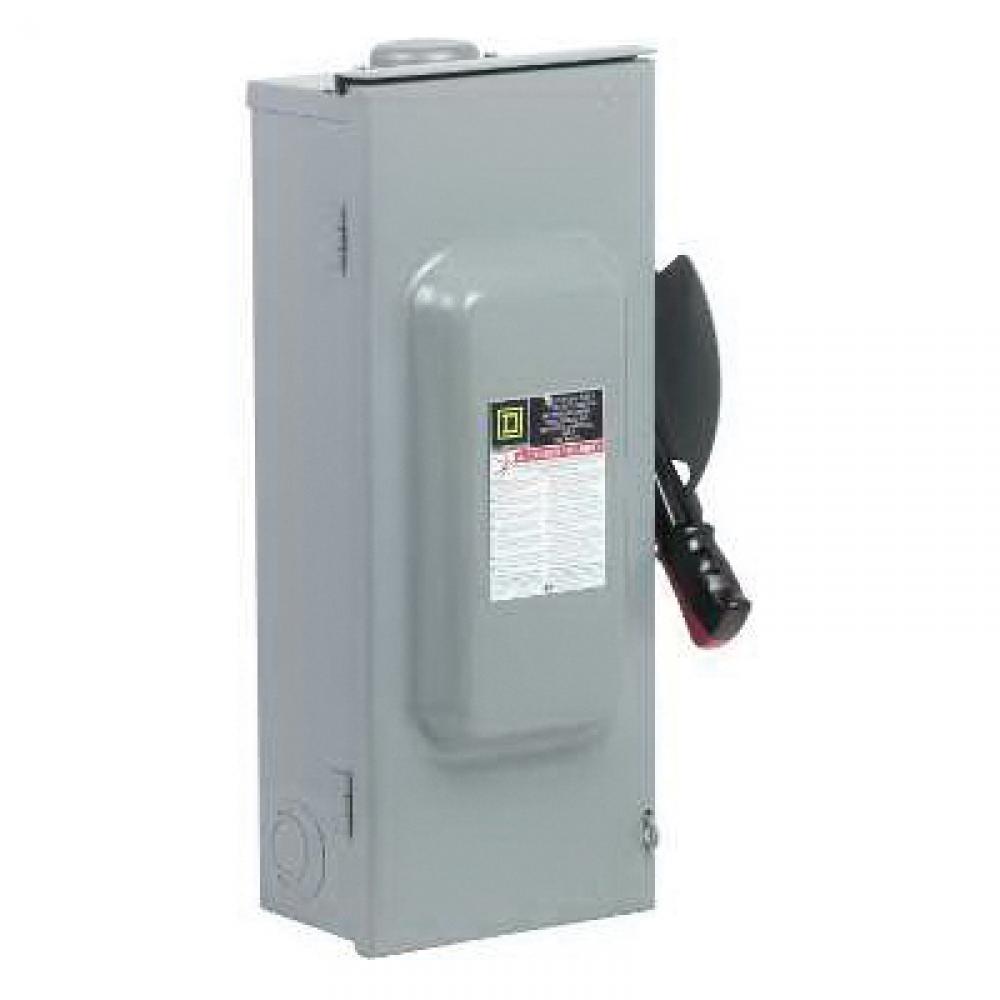

Square D™ CH323NRB F5 Fusible Rainproof Heavy Duty Safety Switch With Bolt-On Hub Provision, 240 VAC/250 VDC, 100 A, 15 hp at 240 VAC 1-Phase/30 hp at 240 VAC 3-Phase/20 hp at 250 VDC, Single Throw Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
21.5 in H x 10.5 in W x 6.38 in D
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC
15 hp at 240 VAC 1-Phase/30 hp at 240 VAC 3-Phase/20 hp at 250 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, Federal Specifications WS-865C, UL 98, File No. E2875, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, whi
Temperature Rating:
-22 to 104
-22 to 104 deg F
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Manufactured By:
Square D by Schneider Electric
