Schneider Electric CH326N

Schneider Electric CH326N by Square D by Schneider Electric

Call for Price
  • Part Number: CH326N
  • UPC: 00785901181941
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

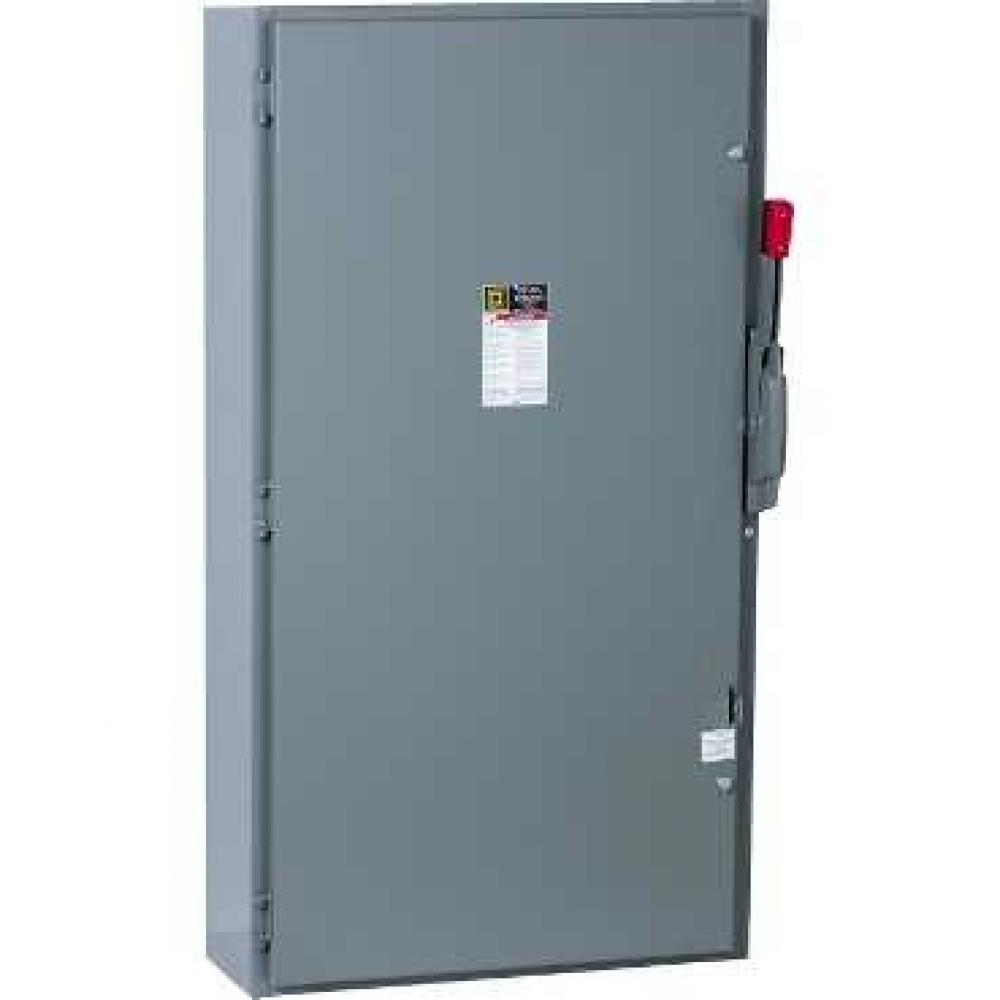

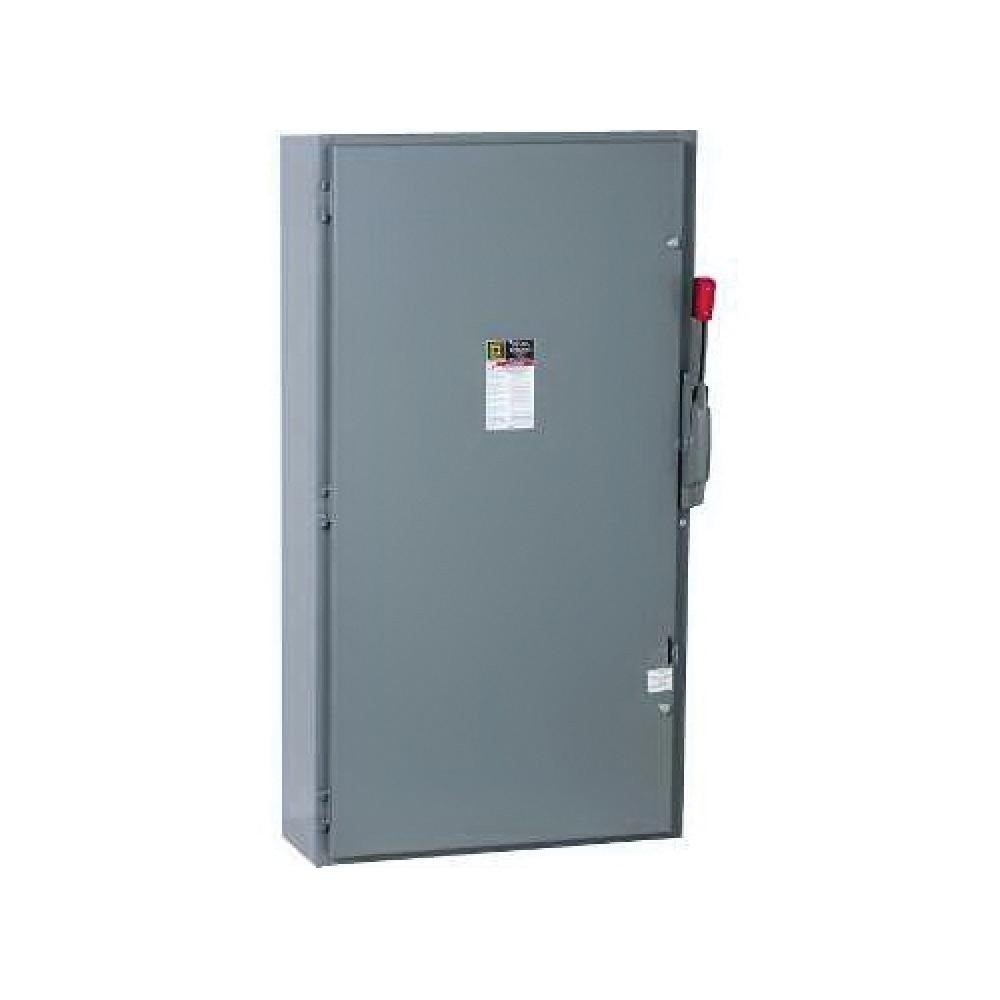

Schneider Electric CH326N E4 Fusible General Purpose Heavy Duty Safety Switch, 240 VAC/250 VDC, 600 A, 200 hp at 240 VAC/50 hp at 250 VDC, Single Throw Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Actuator Type:
Handle
Amperage Rating:
600
600 A
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Application
Category Name:
Heavy Duty Safety Switches
Color:
Gray
Contact Form:
Single Throw
Country:
USA
Dimensions:
50.25 in H x 27.63 in W x 10.13 in D
Enclosure Type:
NEMA 1
Finish:
Painted
Horsepower:
200 hp at 240 VAC, 50 hp at 250 VDC
200 hp at 240 VAC/50 hp at 250 VDC
Length:
52.0
Material:
Cold Rolled Steel
Mounting Type:
Surface
Number of Poles:
3
Number of Wires:
4
Phase:
3
Series:
E4
Short Circuit Current Rating:
200
200 kA
Standard/Approvals:
ARRA|Buy American Act|RoHS Compliant|Federal Specifications WS-865C|UL 98|File No. E154828|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or o
Temperature Rating:
-22 to 104
-22 to 104 deg F
Terminal Type:
Lug
Type:
Fusible General Purpose
Unspsc:
39122205
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Volume:
20188.0
Weight:
174.0
Additional Information
Manufactured By:
Square D by Schneider Electric
