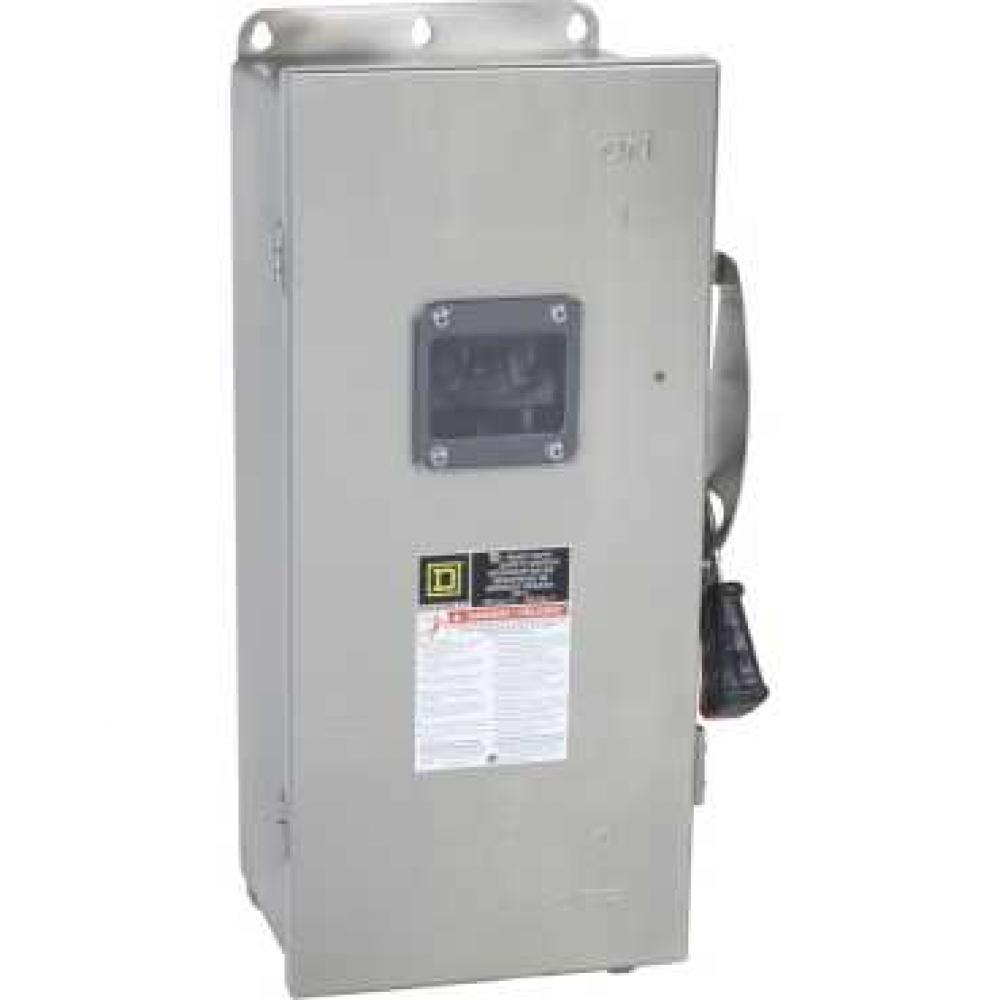

Square D™ CH363DS F6 Corrosion Resistant Dusttight Watertight Fusible Heavy Duty Safety Switch With Viewing Window, 600 VAC/VDC, 100 A, 75 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
20.82 in H x 11.25 in W x 6.97 in D
Horsepower:
75 hp at 600 VAC, 50 hp at 600 VDC
75 hp at 600 VAC/50 hp at 600 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, Federal Specifications WS-865C, UL 98, File No. E2875, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, whi
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Corrosion Resistant Dusttight Watertight Fusible
Manufactured By:
Square D by Schneider Electric
