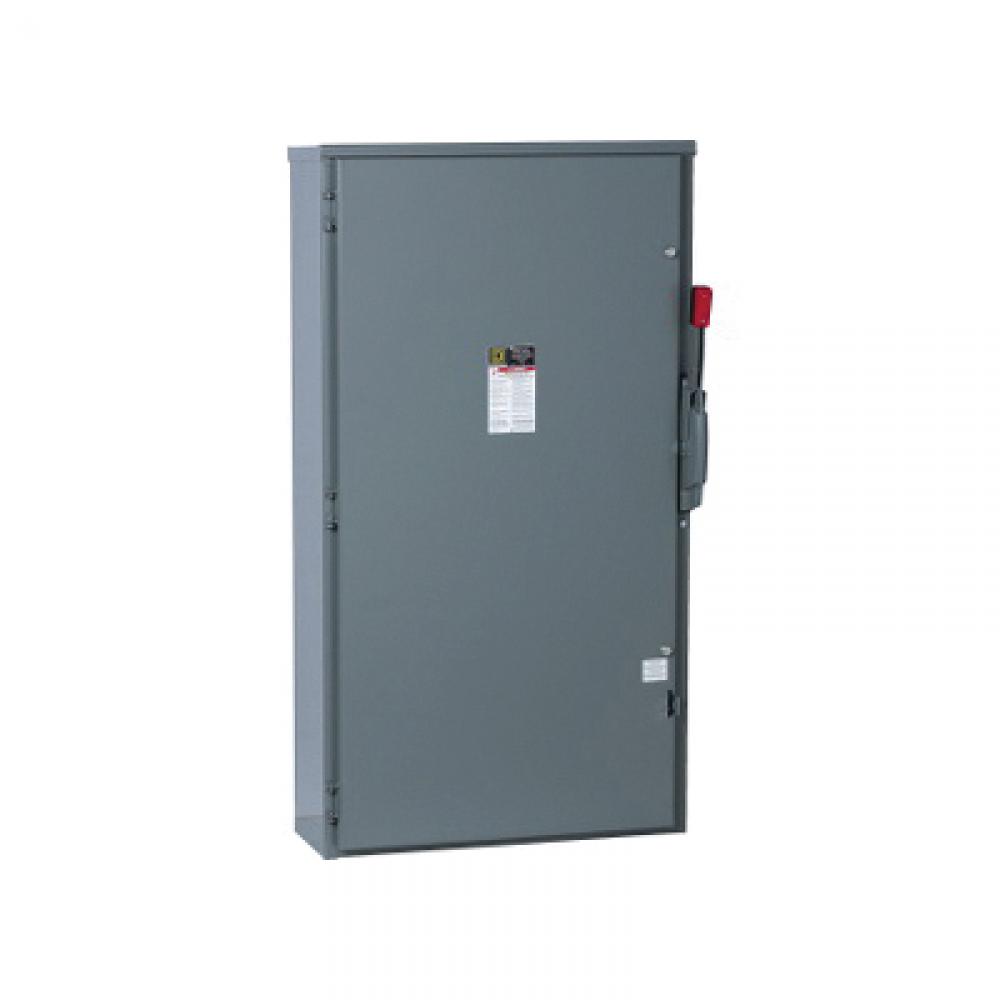

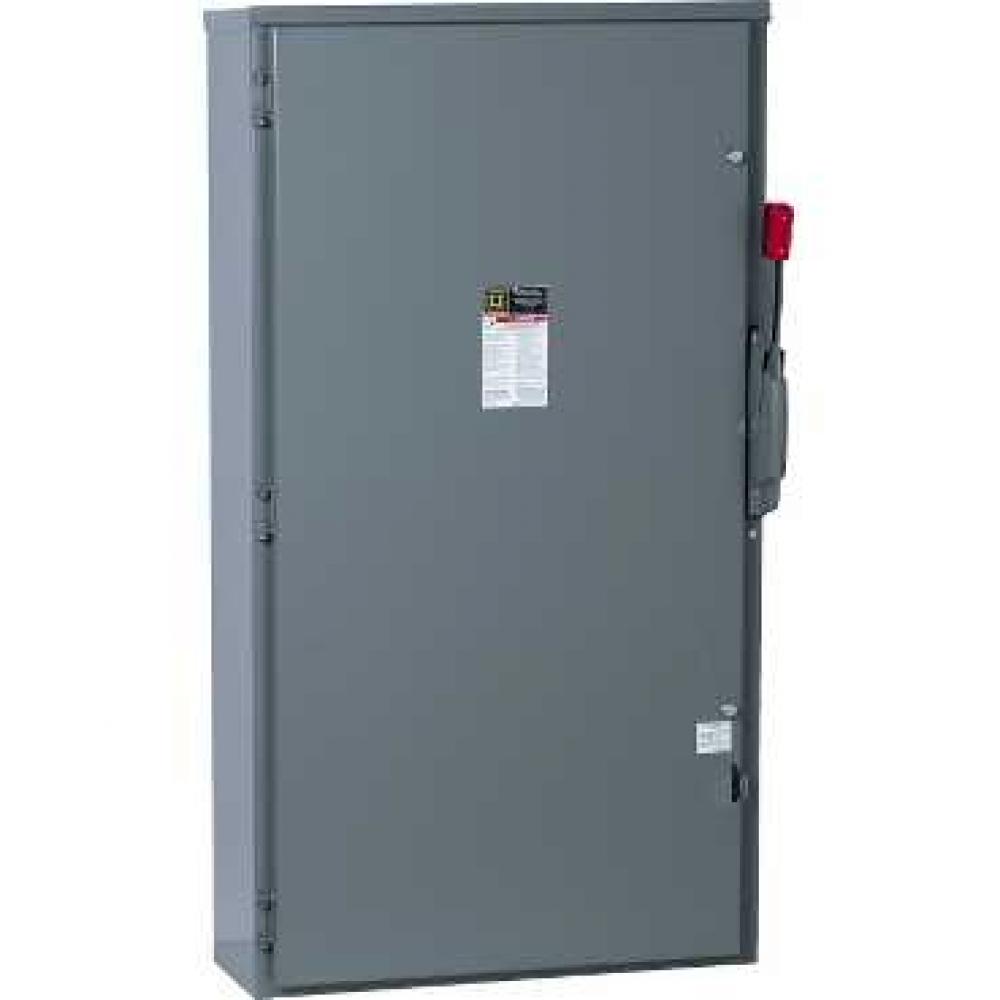

Schneider Electric CHU365R E5 Non-Fusible Rainproof Heavy Duty Safety Switch, 600 VAC/VDC, 400 A, 350 hp at 600 VDC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
50.31 in H x 27.76 in W x 9.53 in D
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
350 hp at 600 VDC, 50 hp at 600 VDC
350 hp at 600 VDC/50 hp at 600 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA|Buy American Act|RoHS Compliant|Federal Specifications WS-865C|UL 98|File No. E154828|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or o
Temperature Rating:
-22 to 104
-22 to 104 deg F
Manufactured By:
Square D by Schneider Electric
