Schneider Electric DT223

Schneider Electric DT223 by Square D by Schneider Electric

Call for Price
  • Part Number: DT223
  • UPC: 00785901308386
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

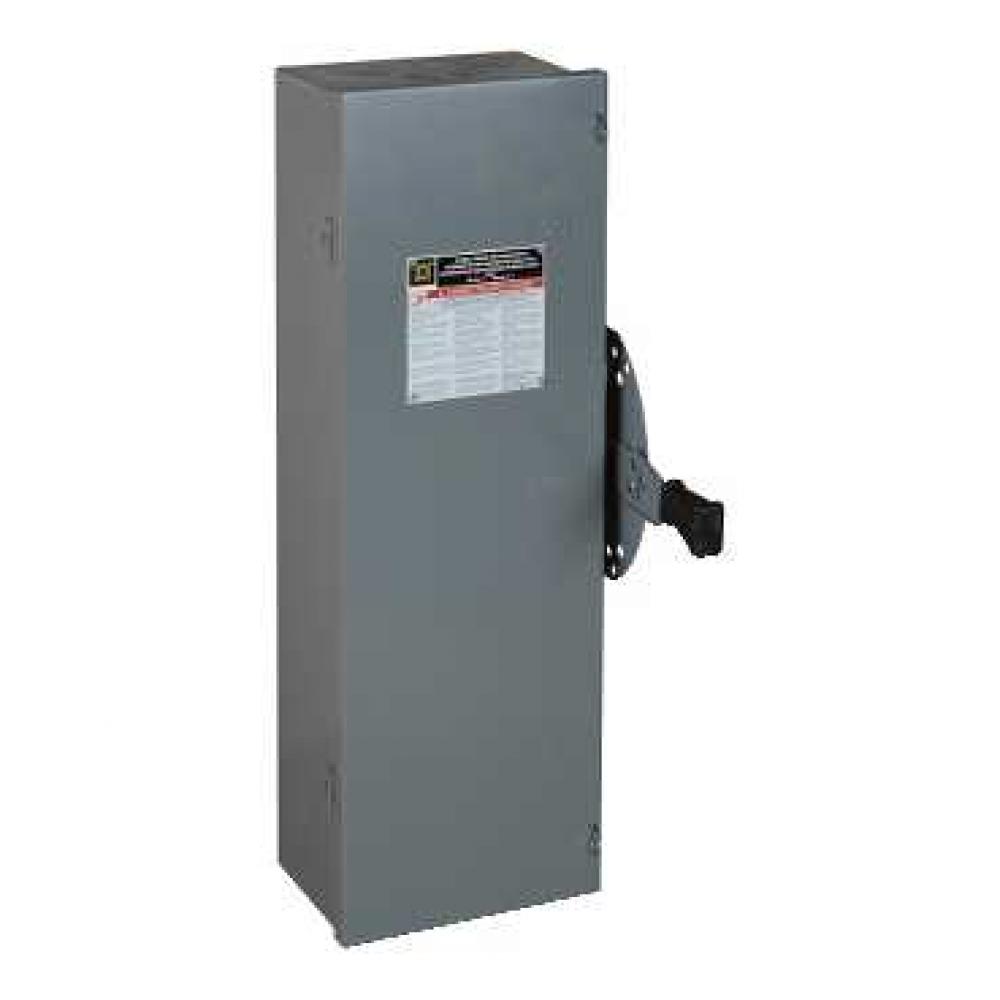

Schneider Electric DT223 F5 Fusible Safety Switch, 240 VAC/250 VDC, 100 A, 7-1/2 hp, 15 hp, 30 hp, 20 hp, DPDT Contact Form, 2 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Amperage Rating:
100
100 A
Application:
Educational, Healthcare, Wastewater, Manufacturing, Mining, Mineral, Residential, Light Commercial, Industrial, Indoor and General Purpose Applications
Category Name:
Heavy Duty Safety Switches
Contact Form:
DPDT
Country:
USA
Dimensions:
38 in H x 11.13 in W x 6.75 in D
Enclosure Type:
NEMA 1
Horsepower:
7-1/2 hp, 15 hp, 30 hp, 20 hp
Length:
0.0
Material:
Steel
Mounting Type:
Surface
Number of Poles:
2
Number of Wires:
2
Phase:
1/3
Series:
F5
Short Circuit Current Rating:
200
200 kA
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth de
Type:
Fusible
Unspsc:
39122205
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Volume:
0.0
Weight:
45.0
Additional Information
Manufactured By:
Square D by Schneider Electric
