Schneider Electric EXN30T65H

Schneider Electric EXN30T65H by Square D by Schneider Electric

Call for Price
  • Part Number: EXN30T65H
  • UPC: 00785901393016
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

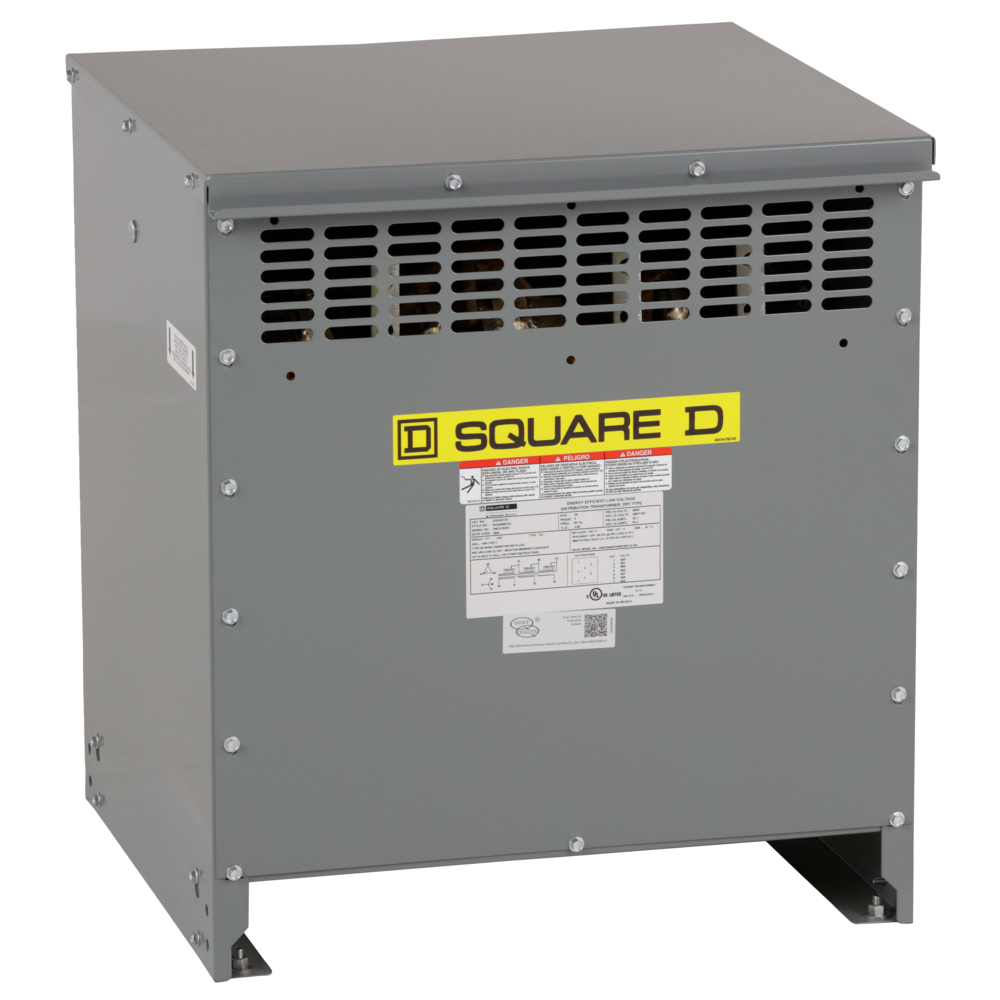

Square D™ EXN30T65H Energy Efficient Transformer, 600 V Delta Primary, 208Y/120 V Secondary, 30 kVA Power Rating, 60 Hz, 3 ph
Specifications
Details
Category Level 1:
Transformers
Category Level 2:
Distribution, Dry-Type Transformers
Category Level 3:
General Purpose - Multi-Use Transformers
Connection Type:
2-Hole 11.1 mm NEMA Pad Primary, 2-Hole 11.1 mm NEMA Pad Secondary and 4-Hole 11.1 mm NEMA Pad Secondary
Dimensions:
627 mm L x 648 mm W x 719 mm H
Efficiency:
98.28 %
Enclosure Type:
NEMA 2/3R/ST-20
Frequency Rating:
60 Hz
Housing Material:
Aluminum
Insulation:
Class 220
Maximum Amperage Rating:
28.87 A, 83.27 A, 30 kVA Operational/2.25 kA Let Through Current
Mounting Type:
Ceiling/Floor
Number of Taps:
(2) 2.5% FCAN/(4) 2.5% FCBN
Phase:
3 ph
Power Rating:
30 kVA
Primary Voltage:
600 V Delta
Secondary Voltage:
208Y/120 V
Temperature Rating:
150 deg C Rise
Additional Information
Manufactured By:
Square D by Schneider Electric
