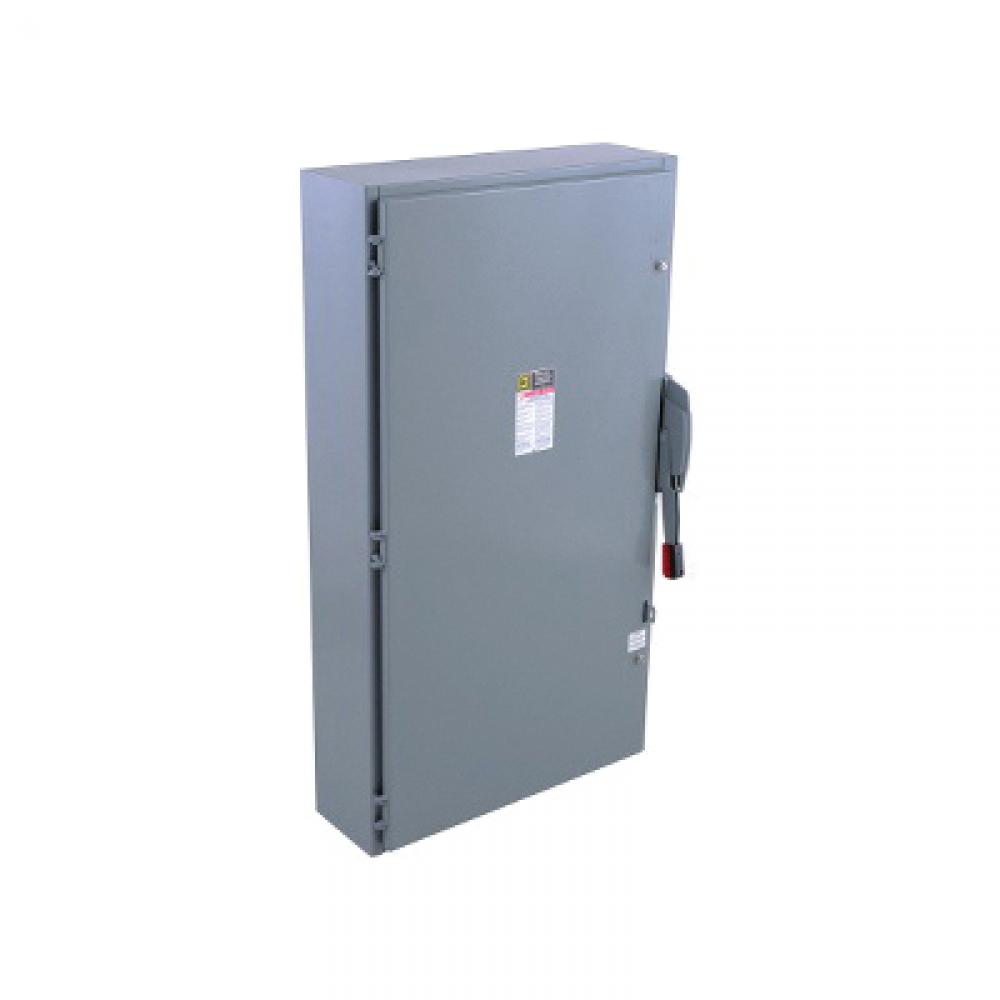

Square D™ H326N E4 Fusible Heavy Duty Safety Switch With Factory Installed Neutral, 240 VAC/250 VDC, 600 A, 75 hp, 200 hp, 50 hp, TPST Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and General Purpose Applications
Category Name:
Heavy Duty Safety Switches
Dimensions:
50.25 in H x 27.63 in W x 10.13 in D
Short Circuit Current Rating:
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E154828|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and
Temperature Rating:
-22 to 104
-22 to 104 deg F
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Manufactured By:
Square D by Schneider Electric
