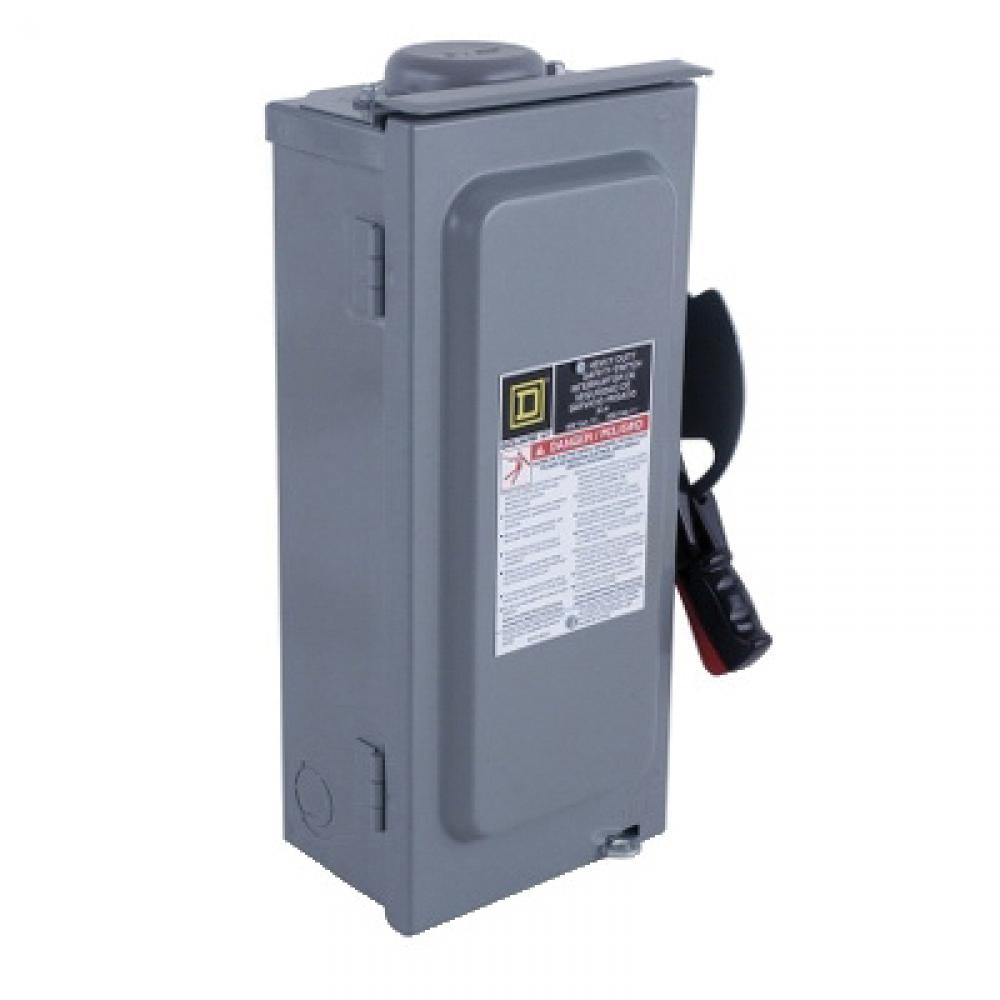

Schneider Electric H361NRBGL F5 Fusible Rainproof Heavy Duty Safety Switch With Bolt-On Hub Provision, 600 VAC/VDC, 30 A, 20 hp at 600 VAC/15 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
14.88 in H x 7.55 in W x 4.88 in D
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
20 hp at 600 VAC, 15 hp at 600 VDC
20 hp at 600 VAC/15 hp at 600 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA|Buy American Act Compliant|Federal Specifications WS-865C|UL 98|File No. E2875|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other re
Temperature Rating:
-22 to 104
-22 to 104 deg F
Manufactured By:
Square D by Schneider Electric
