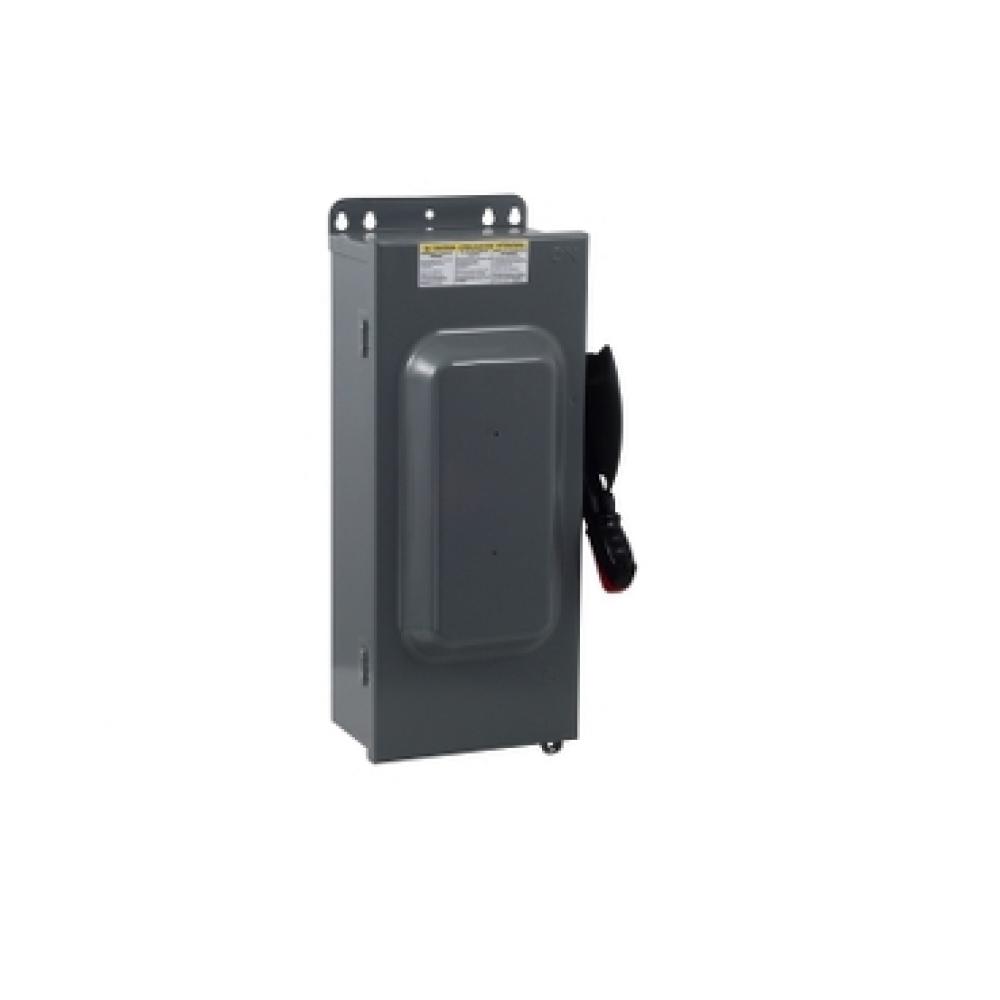

Square D™ H363AC F6 Dusttight Driptight Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 75 hp at 600 VAC/50 hp at 600 VDC, TPST Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
21.25 in H x 10.5 in W x 6.38 in D
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
75 hp at 600 VAC, 50 hp at 600 VDC
75 hp at 600 VAC/50 hp at 600 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, Federal Specifications WS-865C, UL 98, File No. E2875, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, whi
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Dusttight Driptight Fusible
Manufactured By:
Square D by Schneider Electric
