Schneider Electric H363AWAVW

Schneider Electric H363AWAVW by Square D by Schneider Electric

Call for Price
  • Part Number: H363AWAVW
  • UPC: 00785901351931
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

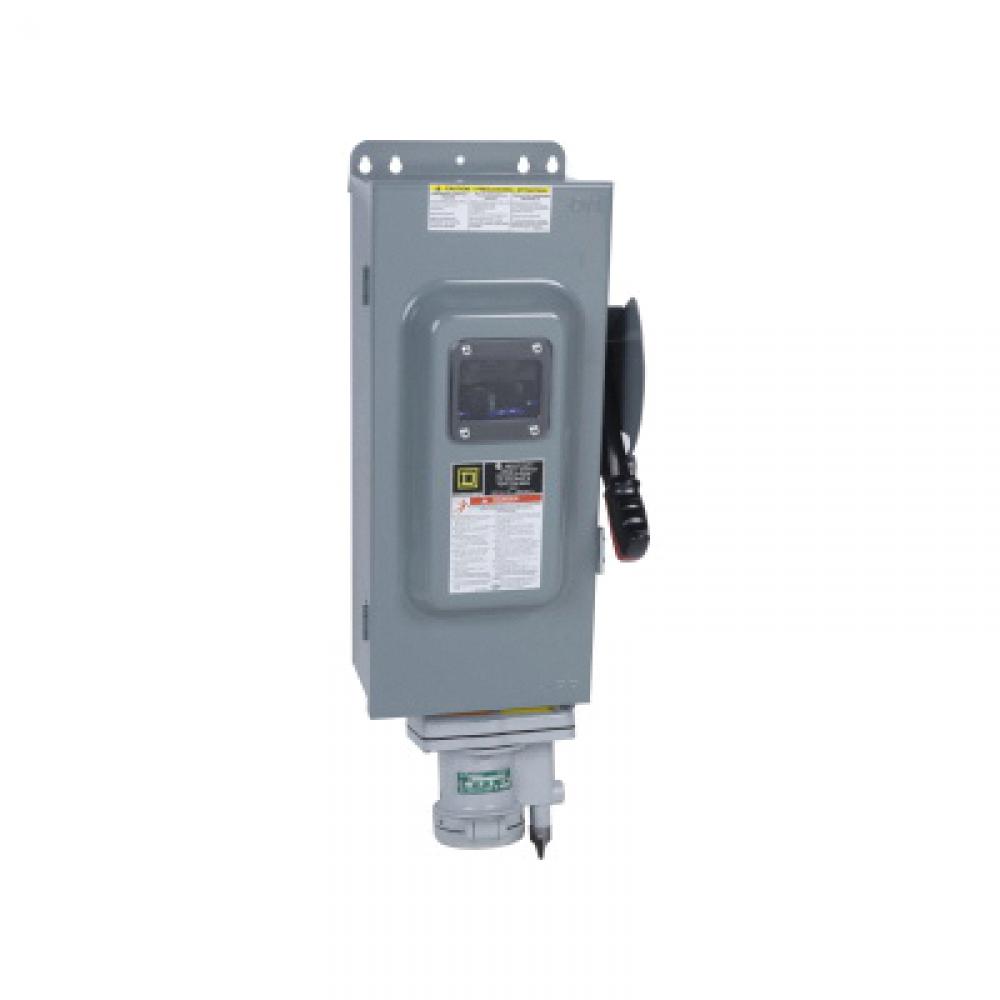

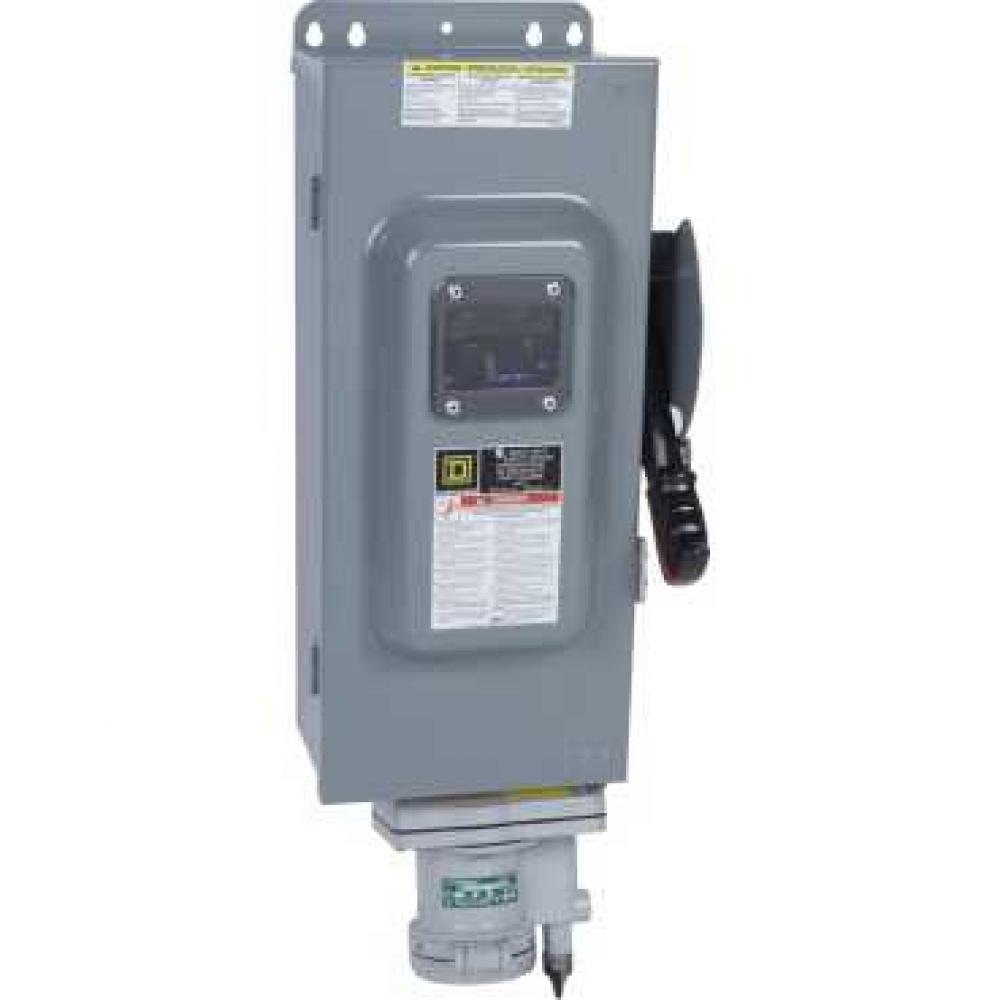

Square D™ H363AWAVW F7 Dusttight Driptight Fusible Iceproof Rainproof Sleetproof Heavy Duty Safety Switch With Appleton™ Interlocked Receptacle, 600 VAC/VDC, 100 A, 75 hp at 600 VAC, Single Throw Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Actuator Type:
Handle
Amperage Rating:
100
100 A
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Application
Category Name:
Heavy Duty Safety Switches
Color:
Gray
Contact Form:
Single Throw
Country:
USA
Dimensions:
21.25 in H x 10.5 in W x 6.38 in D
Enclosure Type:
NEMA 12K
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
75 hp at 600 VAC
Length:
0.0
Material:
Steel
Mounting Type:
Surface
Number of Poles:
3
Number of Wires:
4
Phase:
3
Series:
F7
Short Circuit Current Rating:
10 to 200 kA
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Temperature Rating:
-22 to 104
-22 to 104 deg F
Terminal Type:
Lug
Type:
Dusttight Driptight Fusible Iceproof Rainproof Sleetproof
Unspsc:
39122205
Voltage Rating:
600
600 VAC/VDC
Volume:
0.0
Weight:
20.0
Additional Information
Manufactured By:
Square D by Schneider Electric
