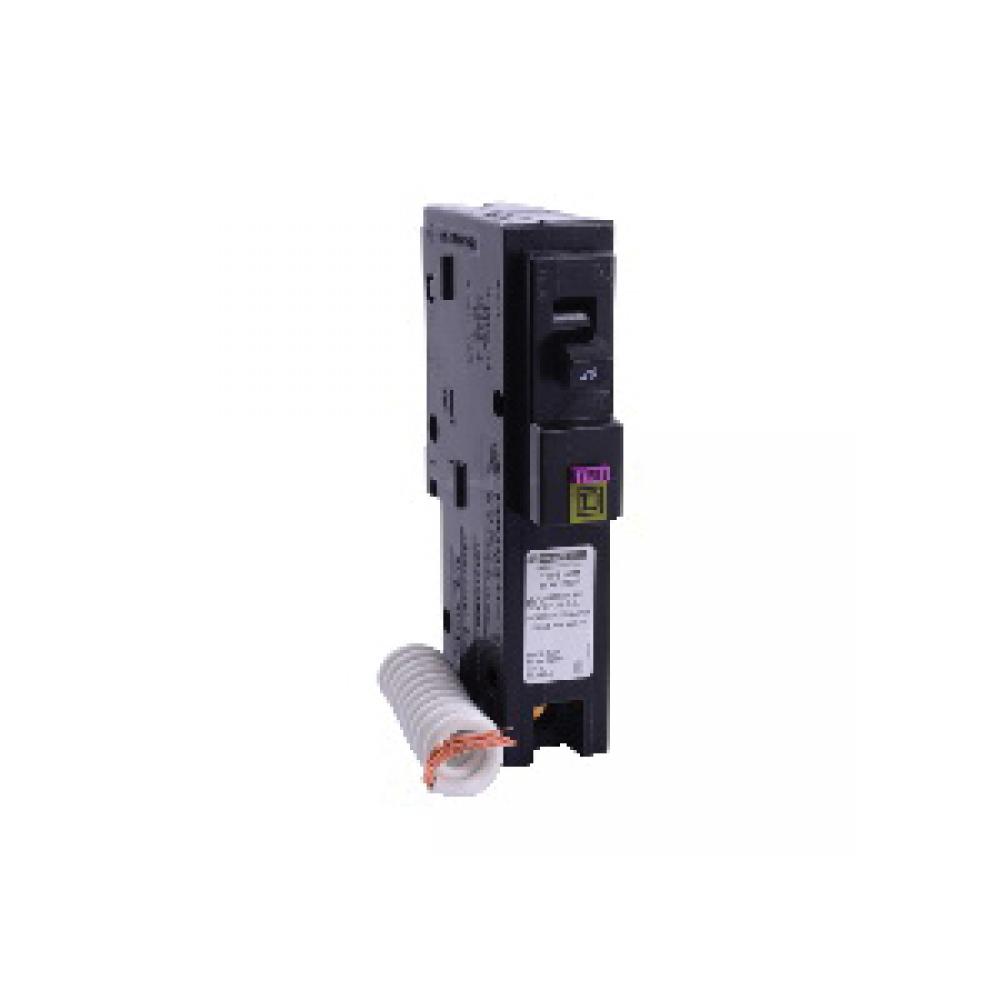

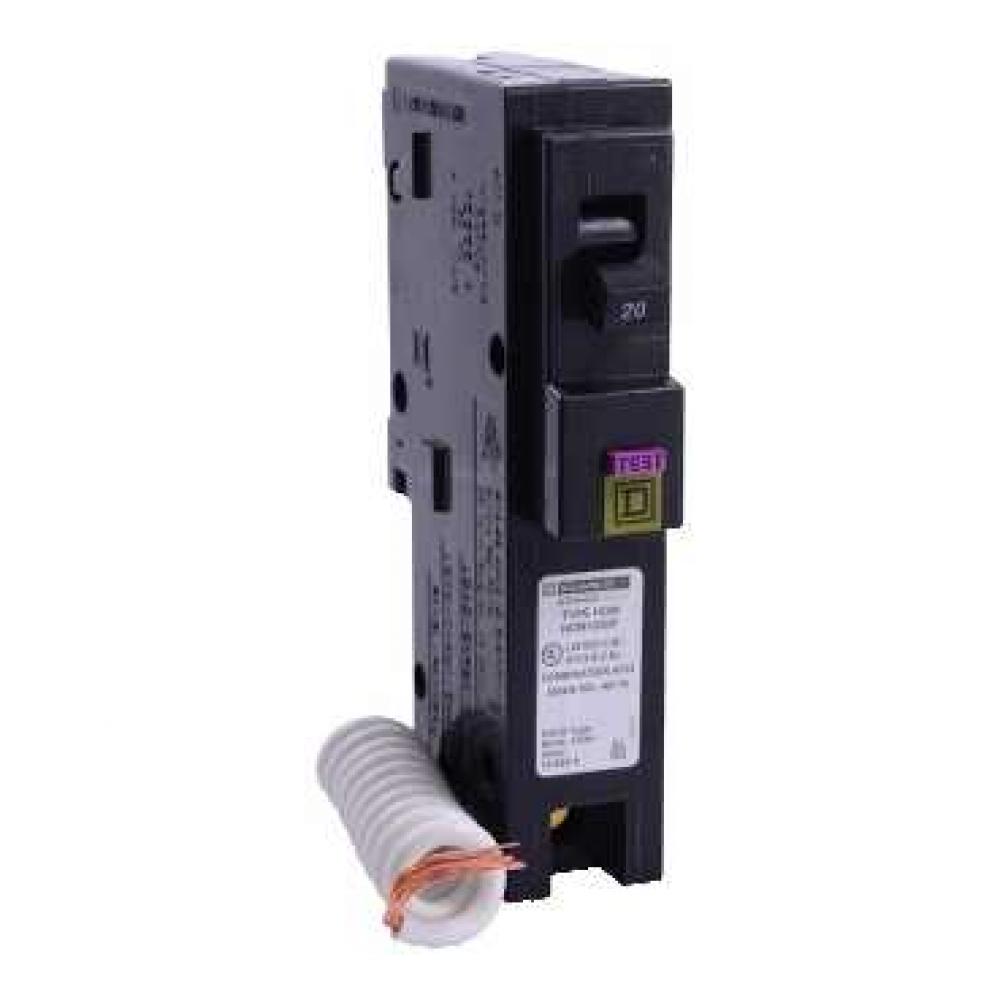

Square D™ HomeLine™ HOM120DF Combination ARC-Fault and Ground Fault Dual Function Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA, 1 Pole, Thermal Magnetic Trip
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 3:
Combination Circuit Breakers
Application:
For providing overload and short circuit protection
Category Name:
Combination Circuit Breakers
Dimensions:
2.98 in L x 1 in W x 3.13 in H
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E6294|HACR Rated|Federal Specification W-P-115B|NEC/CSA Certified|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
Type:
Class A
Combination ARC-Fault and Ground Fault Dual Function
Wire Size:
14 to 8 AWG, 14 to 10 AWG
14 to 8/14 to 10 AWG
Manufactured By:
Square D by Schneider Electric
