Schneider Electric HOM1224M100PRB

Schneider Electric HOM1224M100PRB by Square D by Schneider Electric

Call for Price
  • Part Number: HOM1224M100PRB
  • UPC: 00785901861195
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

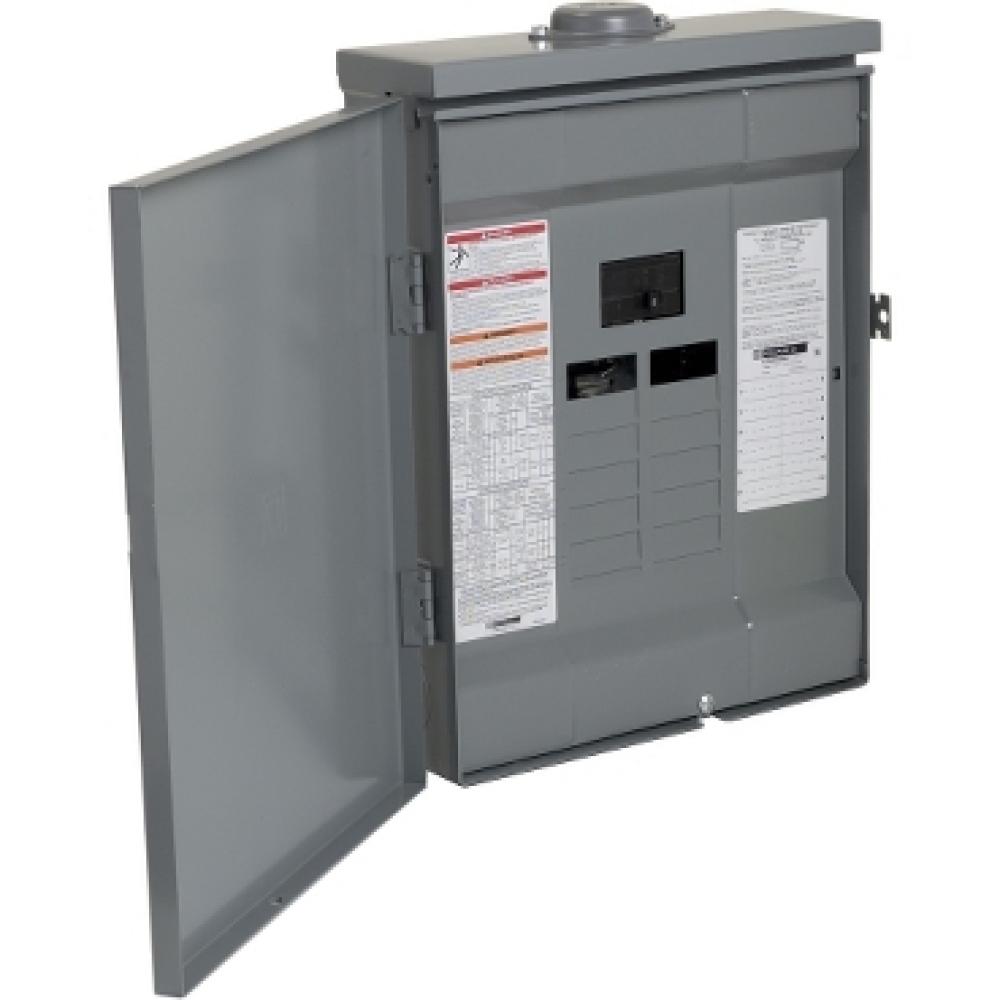

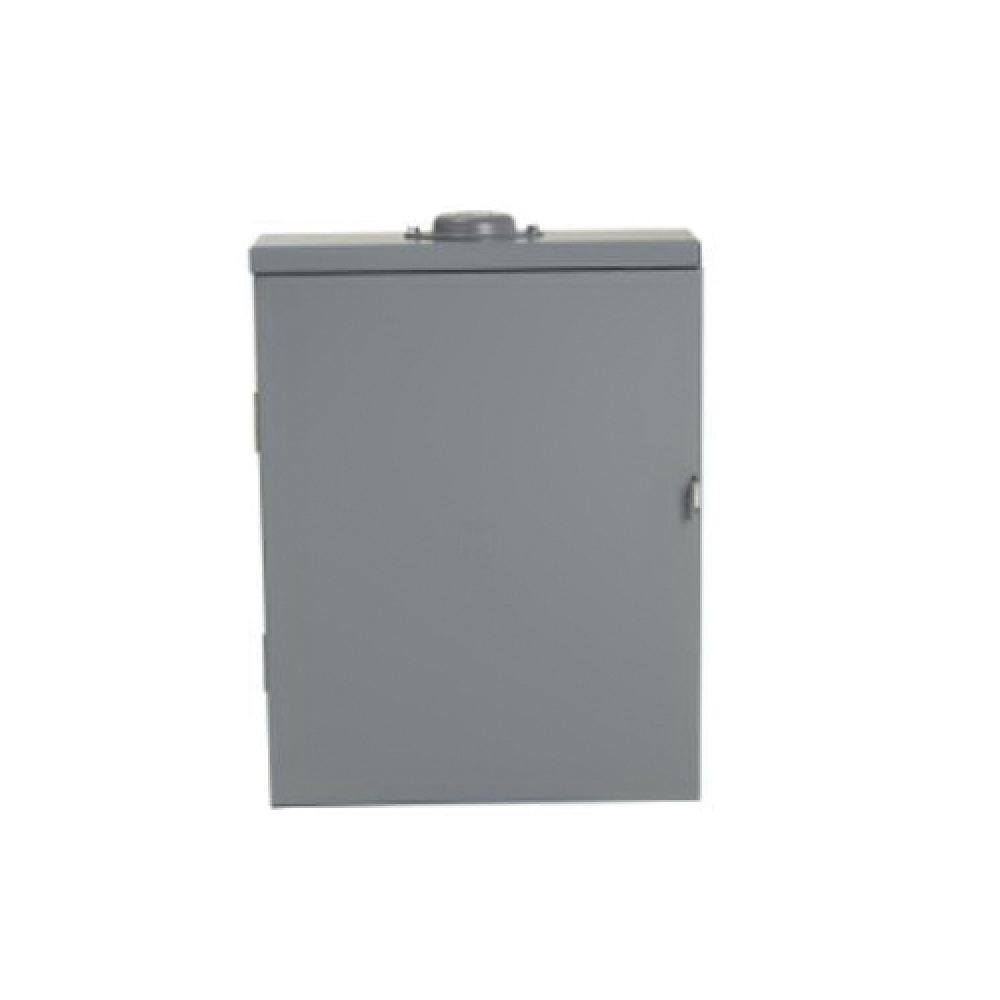

Square D™ HomeLine™ HOM1224M100PRB Convertible Neutral Main Breaker Load Center With Rainproof Cover, 120/240 VAC, 100 A, 1 Pole, 22 kA Interrupt
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Load Centers
Category Level 3:
Single Phase Main Breaker Load Centers
Amperage Rating:
100
100 A
Application:
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people
Breaker Mounting:
Panel
Breaker Type:
HOM
Category Name:
Single Phase Main Breaker Load Centers
Country:
USA
Dimensions:
14.75 in W x 4.52 in D x 18.92 in H
18.92 in H x 14.75 in W x 4.52 in D
Enclosure Box Size:
3R
Enclosure Type:
NEMA 3R
Frequency Rating:
50/60
50/60 Hz
Housing Material:
Galvannealed Steel
Steel
Interrupt Rating:
22
22 kA
Length:
21.0
Mounting Type:
Plug-On
Number of Circuits:
24
Number of Poles:
1
Number of Spaces:
12
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductiv
Type:
1-Phase Convertible Neutral Rainproof
Convertible Neutral
Unspsc:
39121101
Voltage Rating:
120/240
120/240 VAC
Volume:
1612.0
Weight:
22.0
Wire Size:
6 to 1 AWG, 6 to 2/0 AWG
6 to 1 AWG/6 to 2/0 AWG
Wiring Configuration:
3-Wire
Additional Information
Manufactured By:
Square D by Schneider Electric
