Schneider Electric HOM220GFI

Schneider Electric HOM220GFI by Square D by Schneider Electric

Call for Price
  • Part Number: HOM220GFI
  • UPC: 00785901303206
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

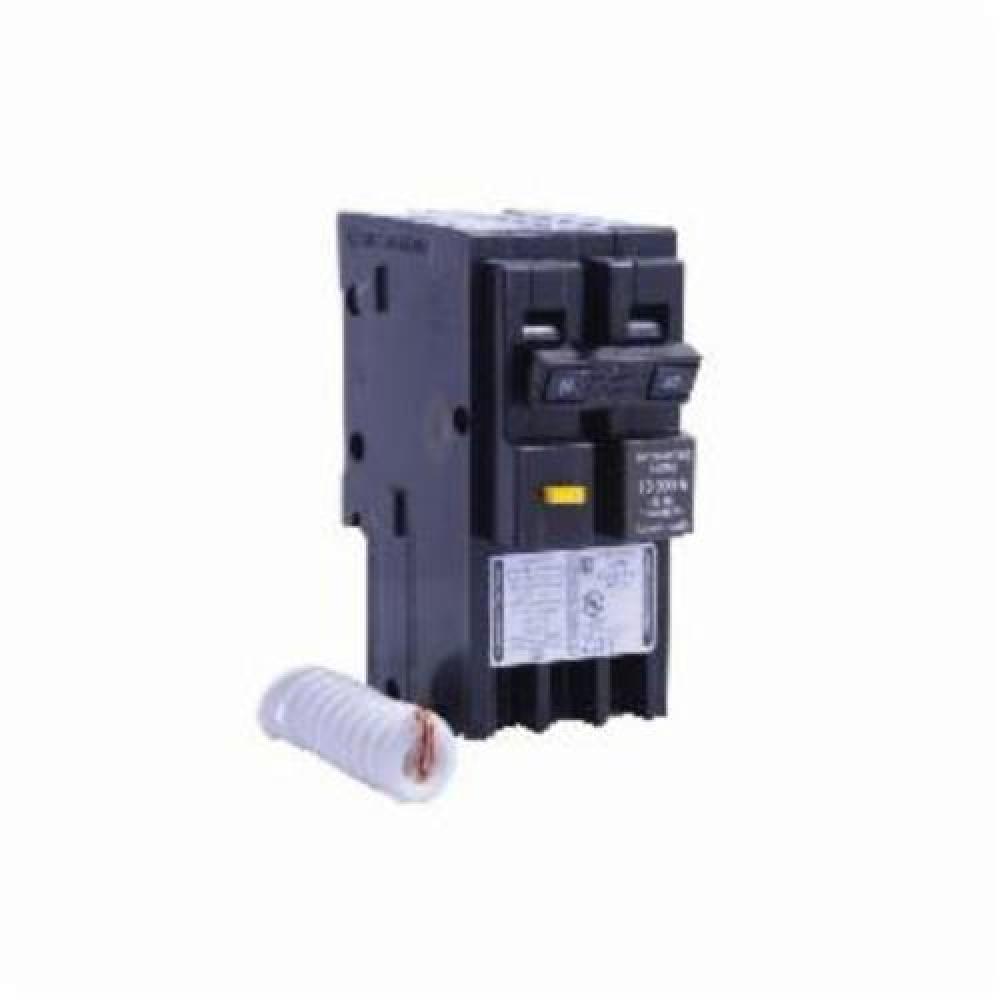

Square D™ Homeline™ HOM220GFI Ground Fault Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 2 Poles, Long Time/Instantaneous Trip
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Circuit Breakers
Category Level 3:
Ground-Fault Circuit Breakers
Amperage Rating:
20
20 A
Application:
For Homeline load centers and providing overload and short circuit protection
Category Name:
Ground-Fault Circuit Breakers
Connection Type:
Screw
Screw Terminal
Country:
USA
Dimensions:
2.98 in L x 2 in W x 3.13 in H
Frequency Rating:
50/60
50/60 Hz
Interrupt Rating:
10
10 kA
Length:
2.0
Mounting Type:
Plug-In
Number of Poles:
2
Phase:
1
Series:
HOM
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|HACR Rated|PPROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reprodu
Temperature Rating:
40
40 deg C
Trip Type:
Long Time/Instantaneous
Type:
Class A Ground Fault
Ground Fault
Unspsc:
39121603
Voltage Rating:
120/240
120/240 VAC
Volume:
46.0
Weight:
1.0
Wire Size:
14 to 6 AWG, 12 to 4 AWG
Additional Information
Manufactured By:
Square D by Schneider Electric
