Schneider Electric HU361RBEI

Schneider Electric HU361RBEI by Square D by Schneider Electric

Call for Price
  • Part Number: HU361RBEI
  • UPC: 00785901156543
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

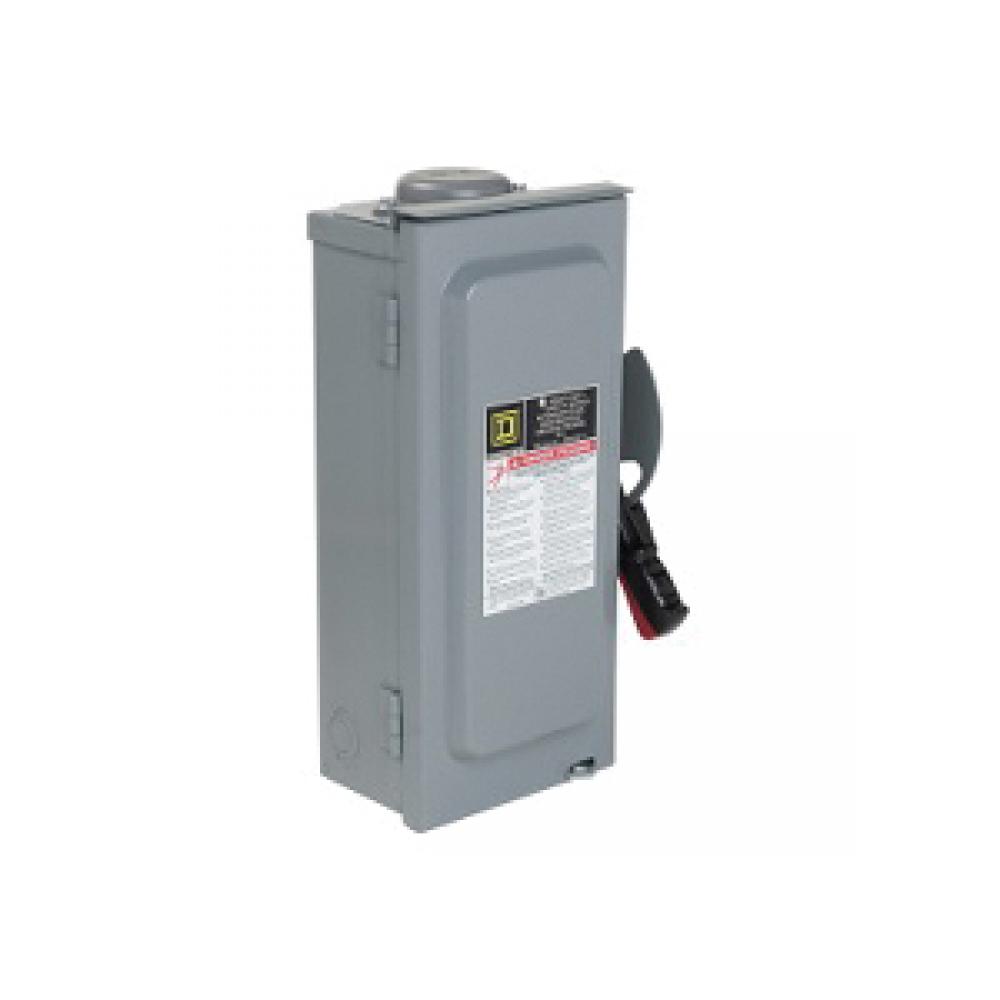

Square D™ HU361RBEI F5 Iceproof Non-Fusible Rainproof Sleetproof Heavy Duty Safety Switch With Bolt-On Hub Provision, 600 VAC/VDC, 30 A, 10 hp, 30 hp, 15 hp, 2NO-2NC TPST Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Actuator Type:
Handle
Amperage Rating:
30
30 A
Application:
Commercial, Industrial and Indoor/Outdoor Applications
Category Name:
Heavy Duty Safety Switches
Color:
Gray
Contact Form:
2NO-2NC TPST
Country:
USA
Enclosure Type:
NEMA 3R
Finish:
Galvanized/Painted
Galvanneal/Painted
Horsepower:
10 hp, 15 hp, 30 hp
10 hp, 30 hp, 15 hp
Length:
16.0
Material:
Steel
Mounting Type:
Surface
Number of Poles:
3
Phase:
1/2/3
Series:
F5
F5 Series
Short Circuit Current Rating:
200
200 kA
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bispheno
Temperature Rating:
-22 to 104
-22 to 104 deg F
Terminal Type:
Lug
Type:
Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof
Iceproof Non-Fusible Rainproof Sleetproof
Unspsc:
39122218
Voltage Rating:
600
600 VAC/VDC
Volume:
645.0
Weight:
9.0
Additional Information
Manufactured By:
Square D by Schneider Electric
