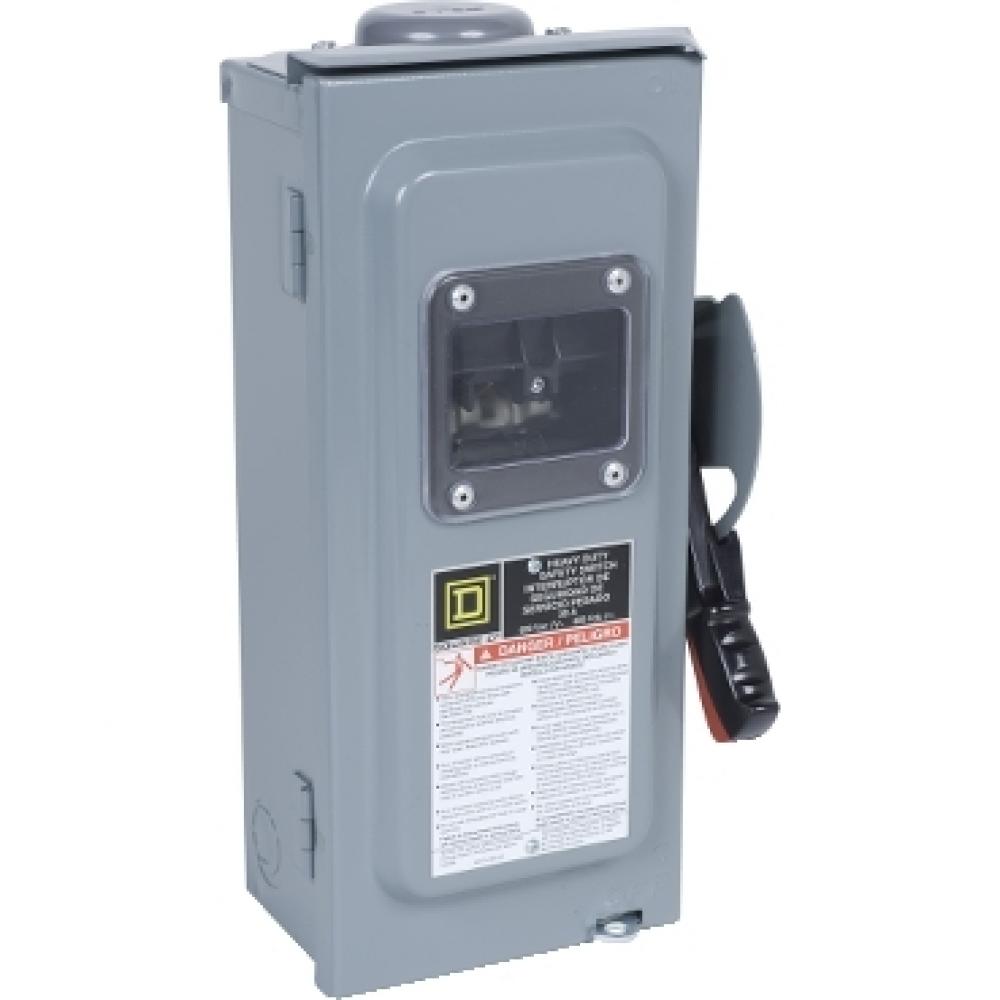

Schneider Electric HU361RBEIVW F5 Iceproof Non-Fusible Rainproof Sleetproof Heavy Duty Safety Switch With Bolt-On Hub Provision, 600 VAC/VDC, 30 A, 10 hp at 600 VAC 1-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC, 1NO-1NC/TPST Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor Application
Category Name:
Heavy Duty Safety Switches
Contact Form:
1NO-1NC/TPST
1NO/1NC TPST
Dimensions:
14.88 in H x 7.55 in W x 4.88 in D
Finish:
Galvanneal Painted
Galvannealed/Painted
Horsepower:
10 hp at 600 VAC 1-Phase, 30 hp at 600 VAC 3-Phase, 15 hp at 600 VDC
10 hp at 600 VAC 1-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC
Short Circuit Current Rating:
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, Federal Specifications WS-865C, UL 98, File No. E2875, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, whi
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Iceproof Non-Fusible Rainproof Sleetproof
Manufactured By:
Square D by Schneider Electric
