Schneider Electric HU363WA

Schneider Electric HU363WA by Square D by Schneider Electric

Call for Price
  • Part Number: HU363WA
  • UPC: 00785901666325
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

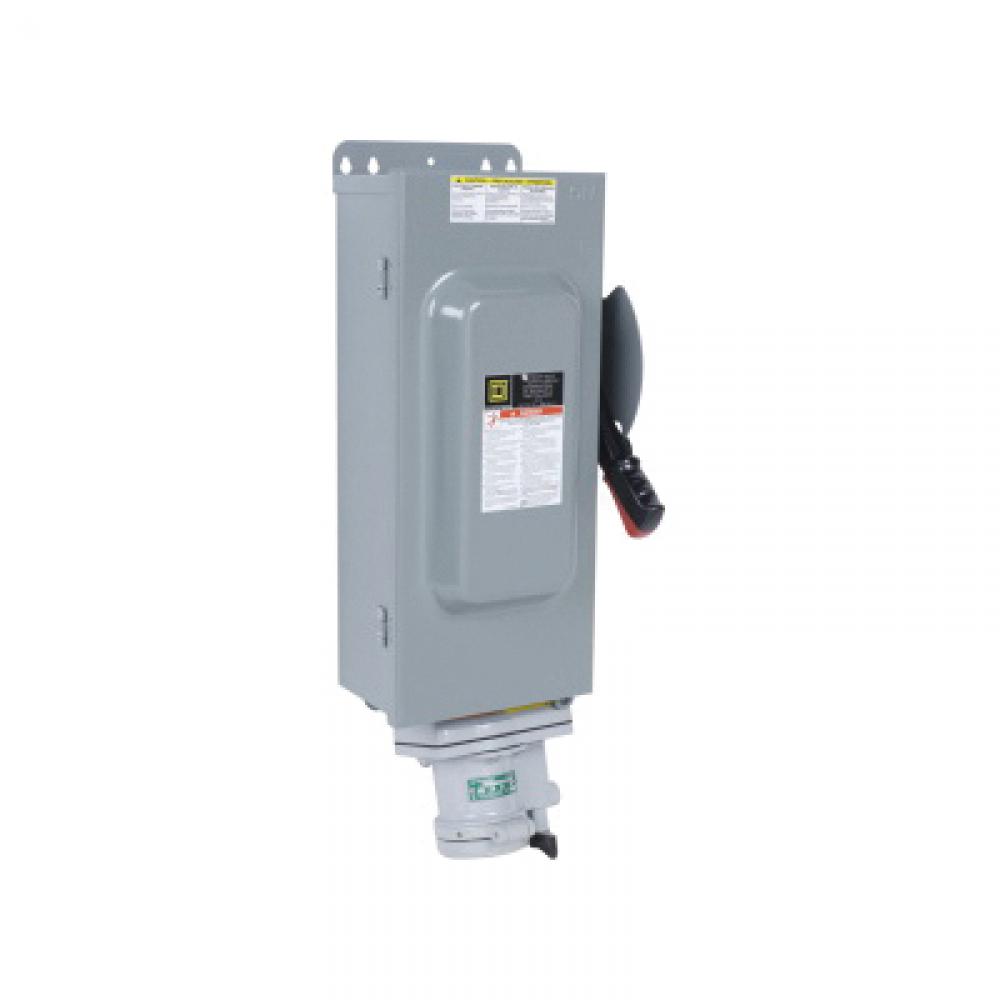

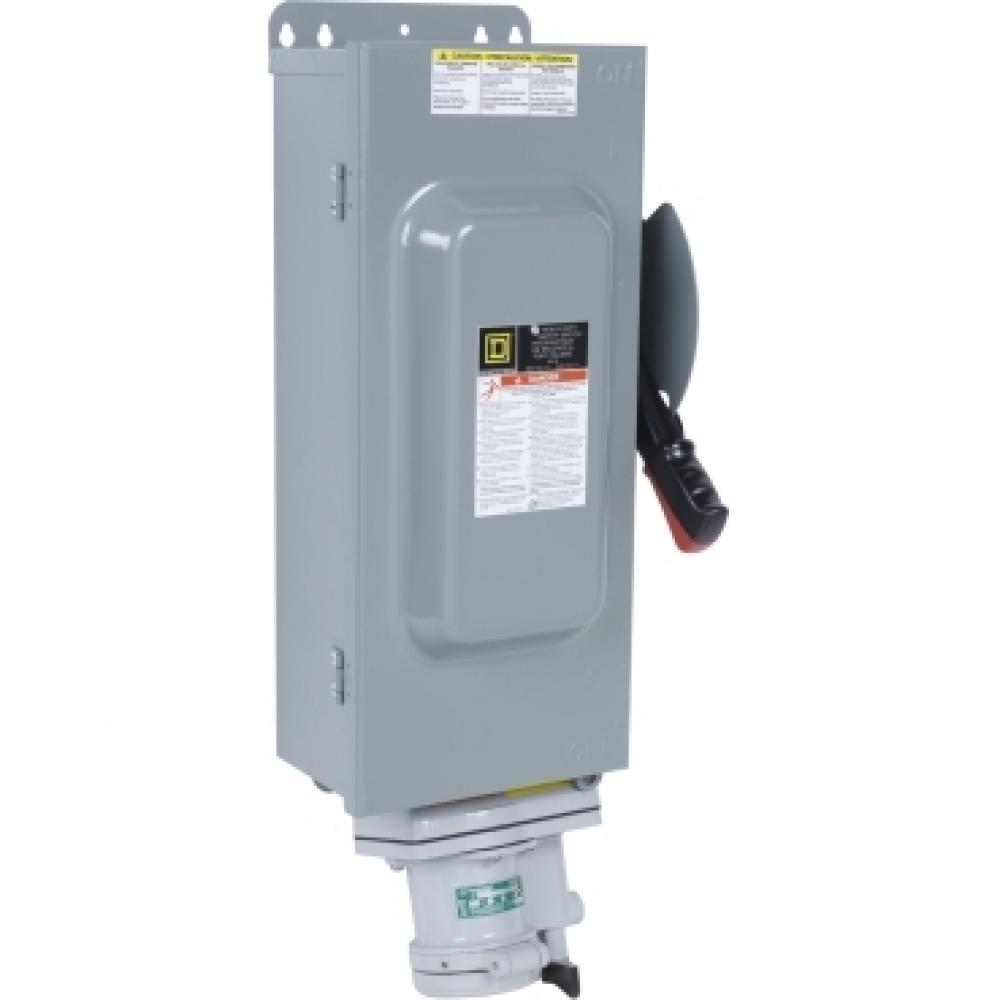

Square D™ HU363WA F6 Dusttight Driptight General Purpose Non-Fusible Heavy Duty Safety Switch With Appleton™ Interlocked Receptacle, 600 VAC/VDC, 100 A, 100 hp at 600 VAC, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Actuator Type:
Handle
Amperage Rating:
100
100 A
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Application
Category Name:
Heavy Duty Safety Switches
Color:
Gray
Country:
USA
Dimensions:
21.85 in H x 10.5 in W x 6.81 in D
Enclosure Type:
NEMA 1
Finish:
Painted
Horsepower:
100 hp at 600 VAC
Length:
0.0
Material:
Cold Rolled Steel
Mounting Type:
Surface
Number of Poles:
3
Number of Wires:
4
Phase:
3
Series:
F6
Short Circuit Current Rating:
200
200 kA
Standard/Approvals:
ARRA|Buy American Act Compliant|Federal Specifications WS-865C|UL 98|File No. E2875|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is kno
Temperature Rating:
-22 to 104
-22 to 104 deg F
Terminal Type:
Lug
Type:
Dusttight Driptight General Purpose Non-Fusible
Unspsc:
39122218
Voltage Rating:
600
600 VAC/VDC
Volume:
0.0
Weight:
20.0
Additional Information
Manufactured By:
Square D by Schneider Electric
