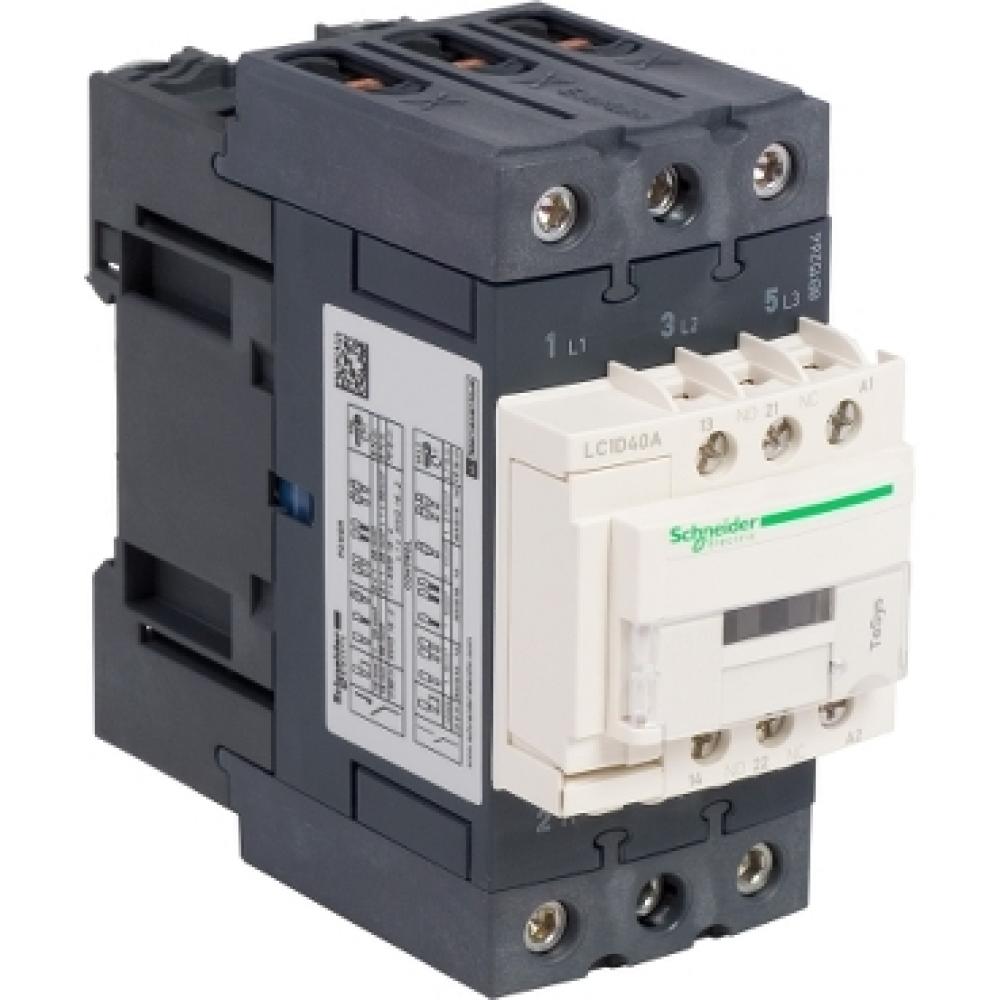

Schneider Electric TeSys™ D EverLink LC1D40AG7 D-Line Standard IEC Contactor, 120 VAC Coil, 40 A, 3NO, 3 Poles
Details
Application:
Motor Control and Resistive Load Applications
Coil Power Rating:
140/160 VA Inrush, 13/15 VA Hold-In
140/160 VA Inrush/13/15 VA Hold-In
Dimensions:
122 mm H x 55 mm W x 120 mm D
2.17 in W x 4.72 in D x 4.8 in H
4.8 in H x 2.17 in W x 4.72 in D
Mounting Type:
Plate/Rail
Plate/Rail/Surface
Number of Auxiliary Contacts:
Power Factor:
0.75 Inrush, 0.3 Hold-In
0.75 Inrush/0.3 Hold-In
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E164862|NLDX|IEC 60647-4 Rated|CSA File No. LR43364|3211 04|CE Marked|California Provision: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide
Type:
D-Line Standard
LC1D D-Line Standard
Standard
Manufactured By:
Square D by Schneider Electric
