Schneider Electric QMJ366

Schneider Electric QMJ366 by Square D by Schneider Electric

Call for Price
  • Part Number: QMJ366
  • UPC: 00785901209089
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

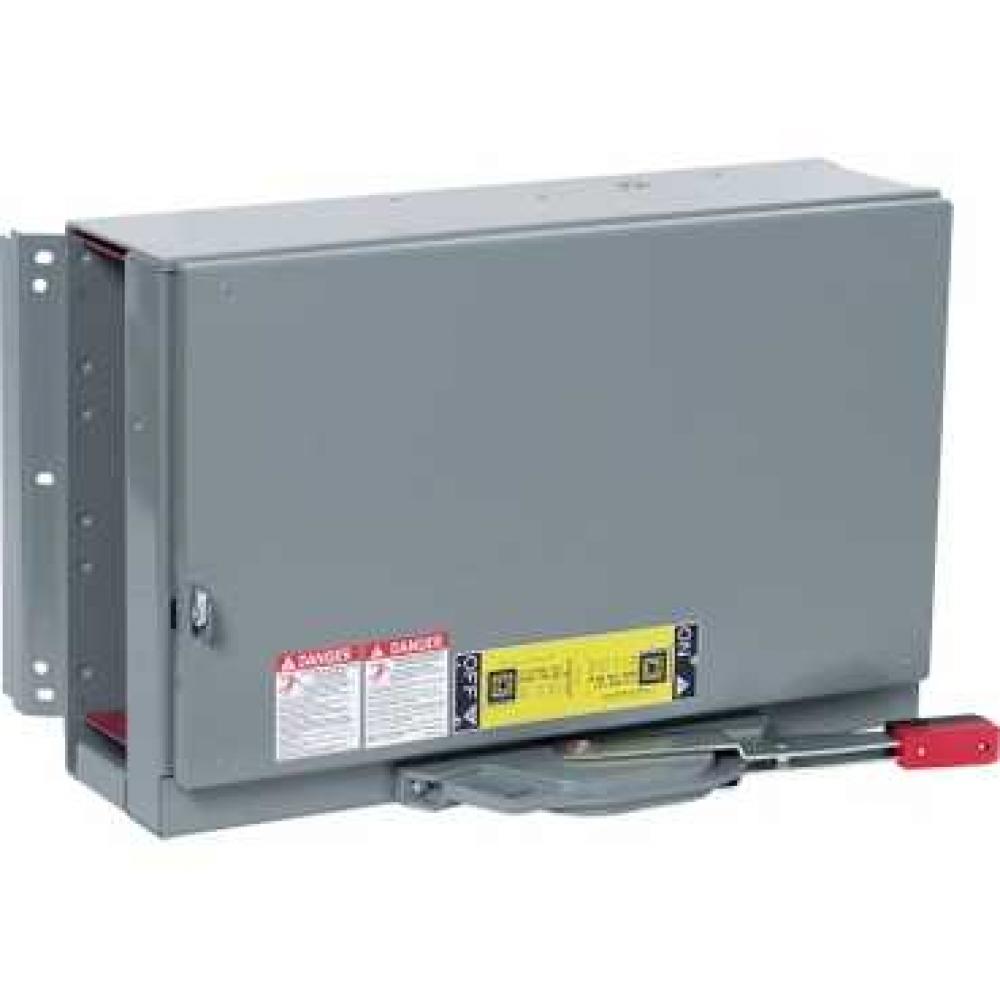

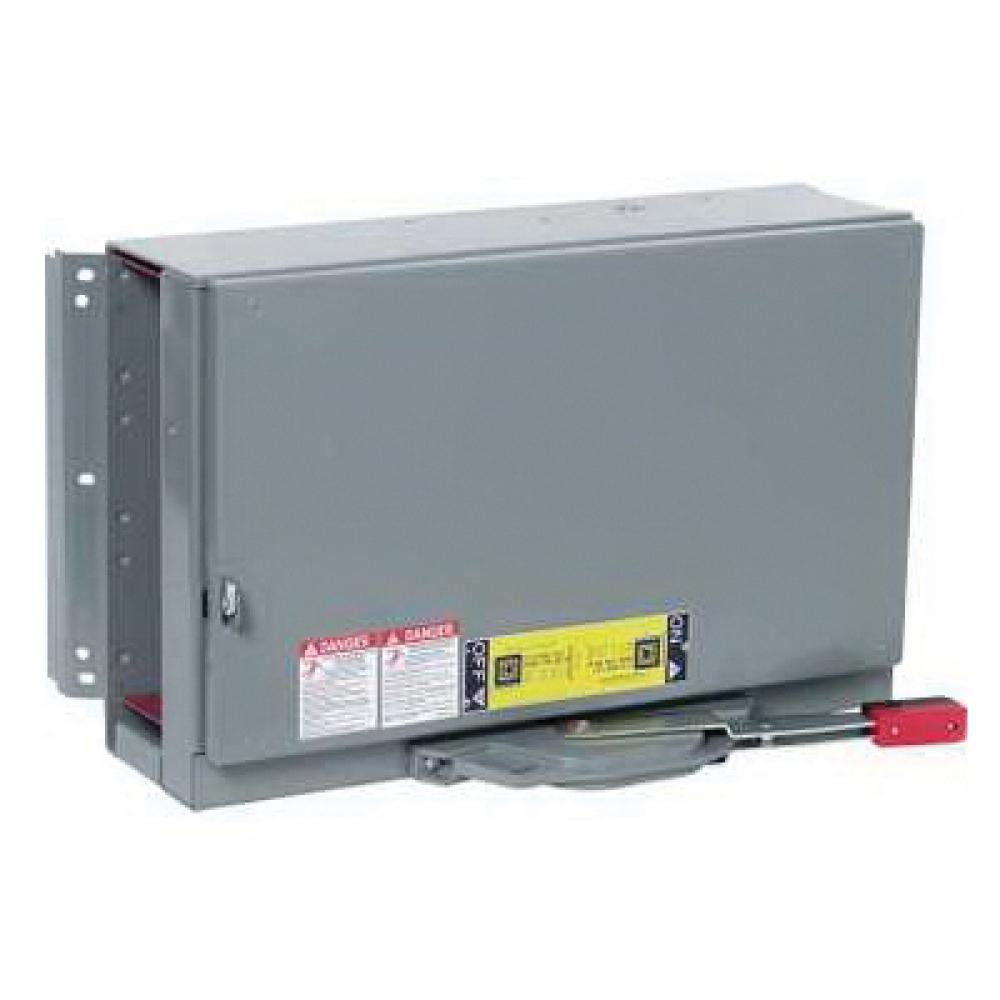

Square D™ QMJ366 Fusible Single Branch Switch Unit, 600 VAC, 600 A, 500 hp, Single Throw Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Panel Board Disconnects
Actuator Type:
Handle
Amperage Rating:
600
600 A
Application:
For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection
Category Name:
Panel Board Disconnects
Contact Form:
Single Throw
Country:
USA
Dimensions:
15 in H
Enclosure Type:
NEMA 1
Horsepower:
500
500 hp
Length:
24.0
Material:
Steel
Mounting Type:
Panel/Rail/Surface
Number of Poles:
3
Phase:
3
Series:
QMJ
Short Circuit Current Rating:
200
200 kA
Standard/Approvals:
ARRA, Buy American Act Compliant, CSA File No. LL48755, Federal Specification WC-865C, UL 98, File No. E34358, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cance
Terminal Type:
Lug
Type:
Fusible Single
Unspsc:
39121111
Voltage Rating:
600
600 VAC
Volume:
5778.0
Weight:
82.0
Additional Information
Manufactured By:
Square D by Schneider Electric
