Schneider Electric RXM2AB2BD

Schneider Electric RXM2AB2BD by Square D by Schneider Electric

Call for Price
  • Part Number: RXM2AB2BD
  • UPC: 00785901582250
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

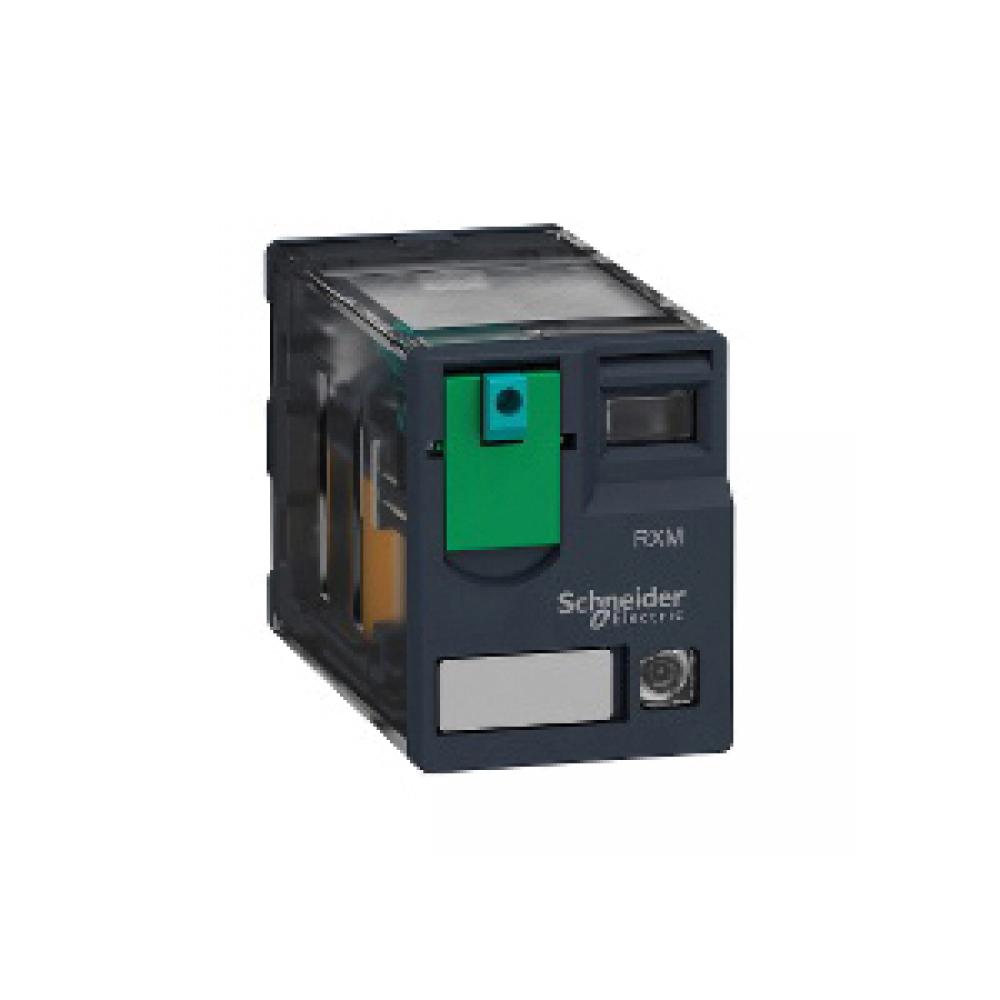

Schneider Electric Zelio™ RXM2AB2BD Faston Type Miniature General Purpose Relay, 12 A, 8 Pins, 2NO-2NC DPDT Contact Form, 24 VDC Coil
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Relays
Category Level 3:
General Purpose Relays
Amperage Rating:
12
12 A
Category Name:
General Purpose Relays
Coil Voltage:
24
24 VDC
Contact Form:
2CO DPDT
2CO/DPDT
2NO-2NC DPDT
Contact Rating:
12 A at 24 VDC
12 A, 24 VDC
Country:
USA
Dimensions:
4.1 in L x 4.9 in W x 1.2 in H
Enclosure Type:
IP40
Frequency Rating:
50/60
50/60 Hz
Length:
2.0
Mounting Type:
Plug-In
Number of Pins:
8
Series:
RXM
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 508|CSA File No. 240278|CE Marked|IEC 61810-1|IEC/EN 60529|PPROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer,
Temperature Rating:
-40 to 131
-40 to 131 deg F
Terminal Type:
Flat/Spade
Type:
Faston Type
Faston Type Miniature
Miniature
Unspsc:
39122326
Volume:
2.0
Weight:
0.0
Additional Information
Manufactured By:
Square D by Schneider Electric
