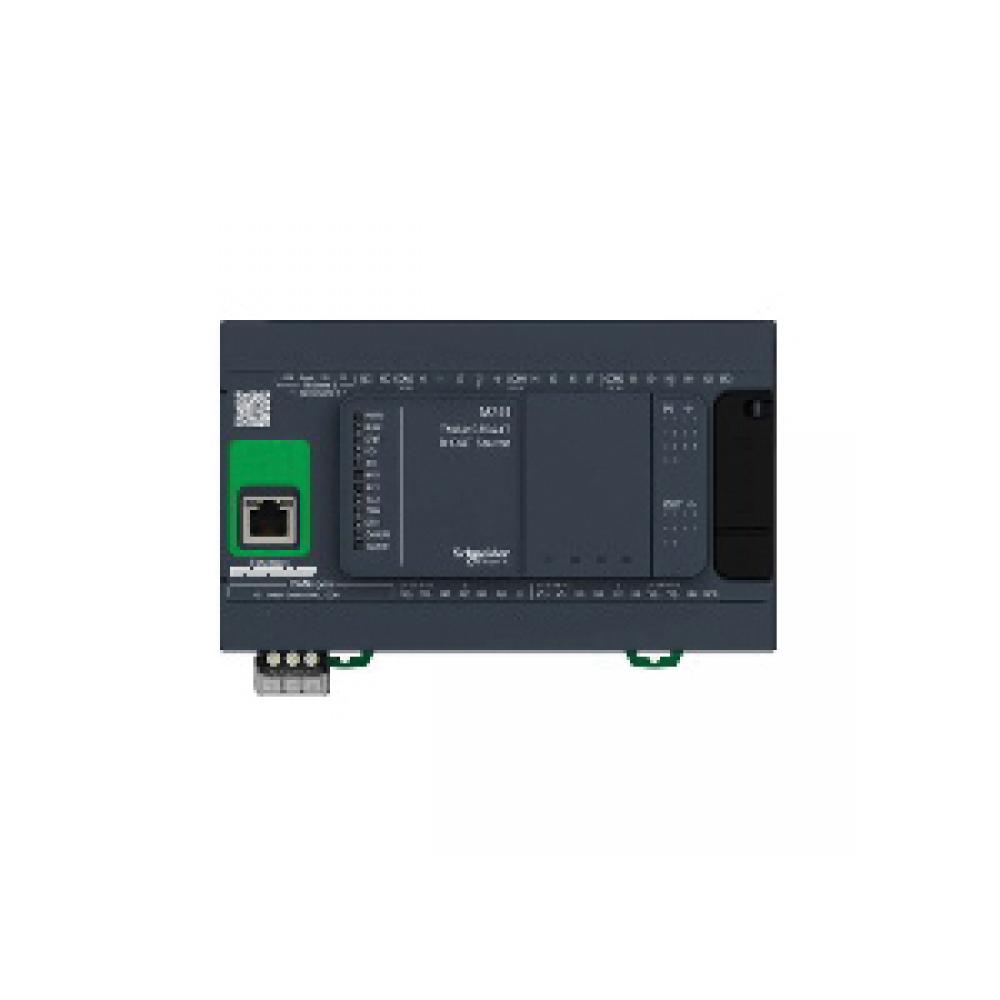

Schneider Electric Modicon® TM241CEC24T I/O Transistor PNP Ethernet Logic Controller, 24 VDC, 5 mA, 24 Inputs, 24 Outputs
Details
Category Level 3:
Programmable Logic Controllers
Category Name:
Programmable Logic Controllers
Communication:
DHCP Client, FTP Server, Ethernet/IP Adapter, Modbus TCP Client, Modbus TCP Slave Device, Modbus TCP Server, WEC VAR Access
DHCP Client/FTP Server/Ethernet/IP Adapter/Modbus TCP Client/Modbus TCP Slave Device/Modbus TCP Server/WEC VAR Access
Dimensions:
95 mm L x 150 mm W x 90 mm H
Power Rating:
32.6 to 40.4
32.6 to 40.4 W
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ABS|DNV-GL|EAC Approved|IACS E10|RCM|LR|CE/CSA Certified|cULus/UL Listed|EN/IEC 61131-2|61010-2-201|60664-1|REACH Compliant|PROP65 California Provision: WARNING: This product can expose you to chemic
Temperature Rating:
-10 to 55
-10 to 55 deg C
Transfer Rate:
1.2 to 115.2
1.2 to 115.2 kbps
Type:
I/O Transistor PNP Ethernet
Manufactured By:
Square D by Schneider Electric
